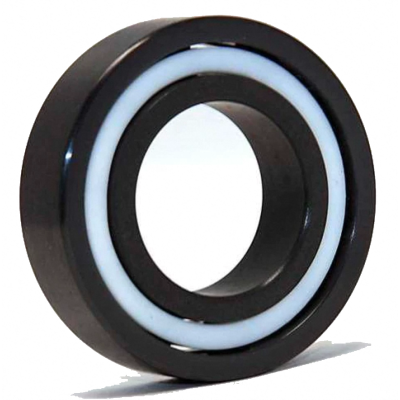

CE7309SCPP
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | CE7309SCPP |
| System of Measurement | Metric |
| Bearing Type | Ball |
| Contact Angle | 25 ° |
| For Load Direction | Angular Contact |
| Construction | Single Row |
| Seal Type | Sealed |
| Bore Dia | 45 mm |
| Bore Dia Tolerance | -0.012 mm to 0 |
| Outer Dia | 100 mm |
| Outer Dia Tolerance | -0.015 mm to 0 |
| Width | 25 mm |
| Width Tolerance | -0.12 mm to 0 |
| Shoulder Diameter Inner Ring (Large Side Face)(d1) | 66.38 mm |
| Shoulder Diameter Inner Ring (Small Side Face)(d2) | 55.2 mm |
| Shoulder Diameter Outer Ring (Large Side Face)(D1) | 79.54 mm |
| Chamfer Dimension (r1 2)(min) | 1.5 mm |
| Distance Pressure Point (a) | 29 mm |
| Ring Material | Silicon Carbide |
| Balls Material | Sic |
| Cage Material | PEEK |
| Dynamic Radial Load | 2752 lbf |
| Static Radial Load | 1841 lbf |
| Max Speed (X1000 rpm) | 4.22 |
| Lubrication | Dry |
| Temperature Range | -176 to 2192 °F |
| ABEC Rating | ABEC-1 |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.36 kg |
Design Features of CE7309SCPP Bearing
CE7309SCPP bearing integrates the remarkable properties of silicon carbide (SiC) with a single-row angular contact configuration, offering a blend of durability and performance. Its bore dia is 45 mm. Its out dia is 100 mm. Its width is 25 mm. CE7309SCPP bearing is a specialized category of bearing crafted for high-endurance and precision-demanding applications.
What Benefits Can CE7309SCPP Bearing Provide?
- High-Speed Performance: Ideal for applications requiring high-speed rotation due to silicon carbide’s low friction properties.
- Exceptional Durability: Silicon carbide’s extreme hardness enhances wear resistance, extending the bearing's lifespan.
- Thermal Stability: It performs reliably in high-temperature environments, maintaining integrity and function.
- Corrosion Resistance: Highly resistant to corrosion, suitable for use in harsh chemical environments.
- Electrical Insulation: The non-conductive nature of silicon carbide prevents electrical erosion, beneficial in electrically sensitive applications.
- Precision Operation: The single-row design ensures accurate control, making this bearing ideal for precision machinery.
What Can CE7309SCPP Bearing Be Used for?
CE7309SCPP Bearing is ideal for applications such as:
- High-Speed Machinery: Perfect for high-speed spindles and precision tools requiring rapid and accurate motion.
- High-Temperature Applications: Suited for equipment in high-temperature settings, like metallurgical and chemical processing.
- Corrosive Environments: Useful in chemical processing for their strong corrosion resistance.
- Electrical and Electronic Equipment: Ideal for applications needing non-conductive properties to prevent electrical erosion.
- Advanced Engineering: Appropriate for aerospace and defense sectors, where precision and durability are critical.
