Carter Cam Followers Equivalent
/
Standard Bearings
/

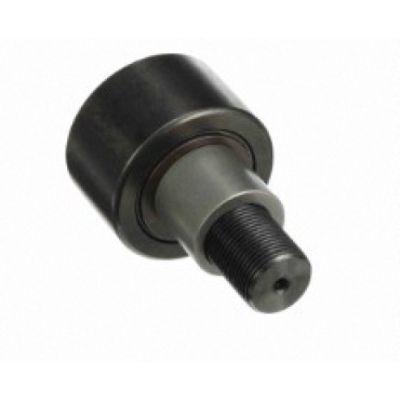

CCNBE-S -Standard Crowned Slotted Eccentric Sealed Cam Follower
/
CCNBE-112-S
CCNBE-112-S
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | CCNBE-112-S |
Brand: LILY  |
Interchangeable With: Carter |
| System of Measurement | Inch |
| Roller O.d. | 3.5 |
| Roller Width | 2" |
| Stud Length | 2.75" |
| Crown Radius | 30" |
| M.e.t. | 1 3/8 |
| Thread Class 2a | 1 3/8-12 |
| Bushing Length | 1.375" |
| Oil Hole Center | 11/16" |
| Oil Hole Diameter | 1/8" |
| Lube Fitting Size | 1/4" |
| Bushing Diameter | 1.812 |
| Eccentric Offset | 0.06 |
| Min. Boss Diameter | 1.9219 |
| Mounting Bore | 1.815 |
| Torque (in-lb) | 2100 |
| Max Static Capacity (lbf) | 31625 lbf |
| Basic Dynamic Rating (lbf) | 22800 lbf |
| Limiting Speed (rpm) | 820 |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Full Complement |
| Type | Eccentric Stud |
| Mounting Method | Screwdriver Slot |
| Seal Type | Sealed |
| Roller Material | Bearing Steel |
| Roller Dia | 3.5" |
| Stud Dia | 1.375" |
| Threads | 1 3/8-12 |
| Minimum Thread Length | 1 3/8" |
| Shoulder Dia | 1.9219" |
| Bushing Dia | 1.812" |
| Eccentricity | 0.06" |
| Max Speed | 820 rpm |
| Static Radial Load | 31625 lbf |
| Dynamic Radial Load | 22800 lbf |
| RoHS | Compliant |
| REACH | Compliant |
