Carter Cam Followers Equivalent
/
Standard Bearings
/

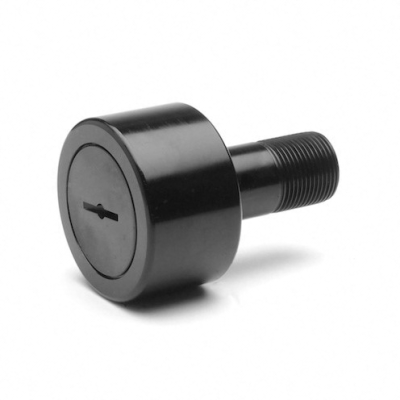

CCNB-S -Standard Crowned Slotted Sealed Cam Follower
/
CCNB-20-NS
CCNB-20-NS
$0.00
/Each
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Request a Quote
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
BULK INQUIRY REQUEST
YOUR INQUIRY LIST
!
Please add at least one product before submit.
QUOTE SUMMARY
| Part Number | CCNB-20-NS |
Brand: LILY  |
Interchangeable With: Carter |
| System of Measurement | Inch |
| Roller O.d. | 0.625 |
| Roller Width | 0.406" |
| Stud Dia | 0.25" |
| Stud Length | 0.625" |
| Crown Radius | 8" |
| M.e.t. | 5/16 |
| Thread Class 2a | 1/4-28 |
| Lube Fitting Size | 1/8" |
| Min. Boss Diameter | 0.3594 |
| Mounting Bore | 0.25 |
| Torque (in-lb) | 17.5 |
| Max Static Capacity (lbf) | 1085 lbf |
| Basic Dynamic Rating (lbf) | 930 lbf |
| Limiting Speed (rpm) | 9200 |
| For Load Direction | Radial |
| Roller Shape | Crowned |
| Internal Construction | Full Complement |
| Type | Standard Stud |
| Mounting Method | Screwdriver Slot |
| Seal Type | Sealed |
| Roller Material | Bearing Steel |
| Roller Dia | 0.625" |
| Threads | 1/4-28 |
| Minimum Thread Length | 5/16" |
| Shoulder Dia | 0.3594" |
| Max Speed | 9200 rpm |
| Static Radial Load | 1085 lbf |
| Dynamic Radial Load | 930 lbf |
| RoHS | Compliant |
| REACH | Compliant |
