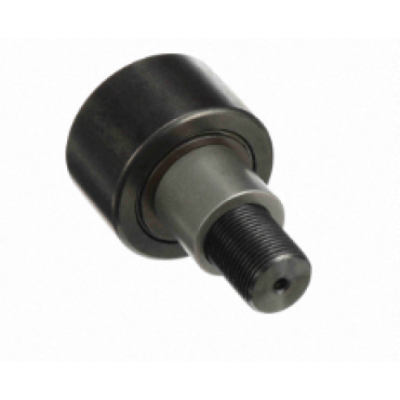

CCFE 7/8 SB Cam Followers

CCFE 7/8 SB Cam Followers
Price Not yet
Mcgill Part No. CCFE 7/8 SB
LILY Part No. LCCFE 7/8 SB
Cross Reference McGill
System of Measurement Inch
Platform Camrol
Type Eccentric Stud
Roller Dia 0.875"
Stud Roller Dia 0.875"
Roller Width 0.5"
Stud Roller Width 0.5"
Roller Material Bearing Steel, Black Oxide Finish
Stud Dia 0.375"
Stud Length 0.875"
Seal Type Sealed
Dynamic Load Rating 1660 lbf
Static Load Rating 1500 lbf
Dynamic Radial Rating 1660 lbf
Limiting Speed 5400
Lubrication Fitting Size 0.1875"
Bushing Length 0.5"
Bushing Diameter 0.5"
Minimum Thread Length 0.375"
Adjustment Eccentric Bushing
Roller Shape Crowned
Tolerance Class P0 Equivalent
Hex Socket 0.1875"
Threads 3/8-24
Relubricatable Yes
O D Configuration Crowned
Stud Type Standard Stud with Eccentric Bushing
Crown Radius 10
Eccentricity 0.015"
Clamping Torquein 95 lbf
Hex Slot Hex Hole
Weight 0.11 LB
Mounting Method Hex Hole
Internal Construction full compliment
CCFE 7/8 SB Cam Followers cad drawing
