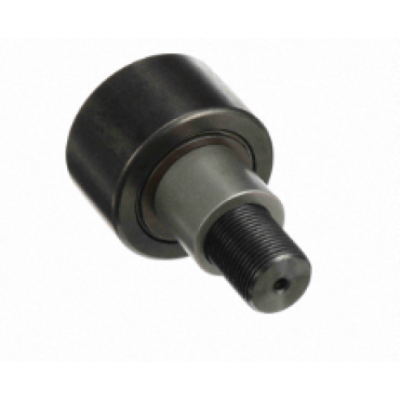

CCFE 3/4 SB
Price $ 8.31
Number
Part Number | CCFE 3/4 SB |
Brand: LILY | |
Equivalent: McGill |
System of Measurement | Inch |
For Load Direction | Radial |
Roller Shape | Crowned |
Internal Construction | Full Complement |
Type | Eccentric Stud |
Mounting Method | Hex Hole |
Seal Type | Sealed |
Platform | Camrol |
Roller Material | Bearing Steel |
Roller Dia | 0.75" |
Roller Width | 0.5" |
Stud Dia | 0.375" |
Stud Length | 0.875" |
Threads | 3/8-24 |
Minimum Thread Length | 0.375" |
Shoulder Dia | 0.46" |
Shoulder Length | 0.03" |
Bushing Dia | 0.5" |
Bushing Length | 0.5" |
Eccentricity | 0.015" |
Hex Socket | 0.1875" |
Lubrication Fitting Size | 0.1875" |
Lubrication Hole Location | Stud side |
Crown Radius | 10" |
Clamping Torque | 95 lbf |
Max Speed | 6400 |
Static Radial Load | 2065 lbf |
Dynamic Radial Load | 1660 lbf |
RoHS | Compliant |
REACH | Compliant |
Weight | 0.10 LB |
