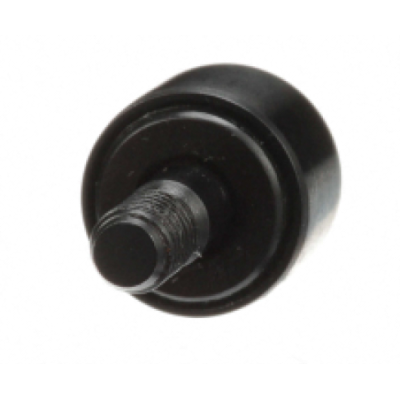

CCFD 2
Part Number | CCFD 2 |
Brand: LILY | |
Equivalent: McGill |
System of Measurement | Inch |
For Load Direction | Radial |
Roller Shape | Crowned |
Internal Construction | Double Row |
Type | Standard Stud |
Mounting Method | Hex Hole |
Seal Type | Sealed |
Platform | Heavy-Duty Camrol |
Roller Material | Bearing Steel |
Roller Dia | 2" |
Roller Width | 1.25" |
Stud Dia | 0.875" |
Stud Length | 2" |
Threads | 7/8-14 |
Minimum Thread Length | 1" |
Shoulder Dia | 1.41" |
Shoulder Length | 0.03" |
Hex Socket | 0.4375" |
Lubrication Hole Location | None |
Crown Radius | 24" |
Clamping Torque | 1500 lbf |
Max Speed | 1400 |
Static Radial Load | 8300 lbf |
Dynamic Radial Load | 9500 lbf |
RoHS | Compliant |
REACH | Compliant |
Weight | 1.30 LB |
