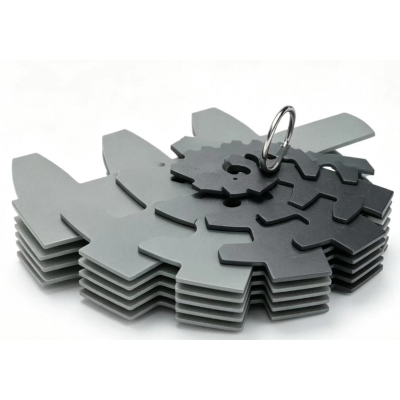

2069A67
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | CAGJAGH |
| System of Measurement | Inch |
| For Gear Type | Spur Gears |
| For Pressure Angle | 14.5 ° |
| For Pitch | 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 36, 40, 48, 64, 80 |
| Number of Identifiers | 22 |
| Material | Steel |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | Not Compliant |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
Design Features of CAGJAGH
CAGJAGH are designed for accurate measurement and quick verification of gear tooth spacing, typically featuring precision-cut profiles that match standardized pitch sizes. They are usually made from durable materials like stainless steel or hardened plastic to ensure long-lasting use in workshop or field conditions. These gear tooth pitch identifiers are compact and easy to handle, often marked with clear, engraved or printed labels for immediate identification. Their practical design allows technicians, engineers, and hobbyists to efficiently compare unknown gears to reference standards without complex measuring equipment.
What Benefits Can CAGJAGH Provide?
- Accuracy in Measurement: CAGJAGH provide precise tooth spacing measurements, helping ensure correct gear matching and compatibility.
- Time Efficiency: They allow for quick identification of gear pitch without the need for complex measuring tools or calculations.
- Ease of Use: Their simple design makes them user-friendly for both professionals and hobbyists, even with minimal training.
- Durability: Constructed from robust materials, they offer long-lasting performance in both workshop and field environments.
- Portability: Compact and lightweight, they are easy to carry and use on-site or in tight spaces.
What Can CAGJAGH Be Used for?
- Gear Inspection: Used to quickly check the pitch of gear teeth during manufacturing or maintenance.
- Replacement Matching: Helps identify the correct replacement gear by verifying pitch compatibility.
- Design Verification: Supports engineers in confirming gear dimensions during prototyping or design reviews.
- Troubleshooting: Aids technicians in diagnosing issues caused by mismatched or worn gears.
- Educational Purposes: Used as teaching tools in technical training programs and engineering courses.
- On-Site Repairs: Handy for mechanics and maintenance teams to assess gears directly in the field.
