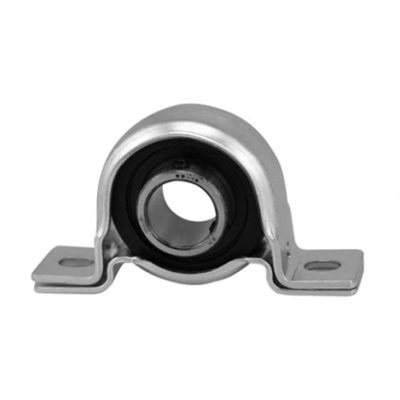

BPR4-12
Price $ 4.70
| Part Number | BPR4-12 |
Brand: LILY  | |
Equivalent: AMI |
| System of Measurement | Inch |
| Bearing Part Number | B4-12 |
| Housing Part Number | PP5 |
| Product Series | BPR200 |
| Bearing Type | Ball Bearing |
| Mounted Type | Pillow Block Bearing |
| Inner Ring Type | Narrow Inner Ring |
| Bearing Seal Type | Double Sealed |
| Shaft Mount Type | Set Screw Locking |
| Bore Dia | 3/4" |
| Bore Dia Tolerance | -0.0005" to 0" |
| Bearing Width | 0.972" |
| Mounting Bolt Size | 3/8" |
| Center Height | 1 1/8" |
| Overall Height | 2 7/32" |
| Whole Length | 4 1/2" |
| Whole Width | 1 1/8" |
| Hole Length | 9/16" |
| Hole Width | 13/32" |
| Hole Ctr-to-Ctr Min | 3 3/16" |
| Hole Ctr-to-Ctr Max | 3 9/16" |
| Pillow Height | 5/32" |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Non-relubricatable |
| Lubrication | Required |
| Temperature Range | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.53 lb |
| RubberRing | R5 |
| StampingLoadLimit | 400 lb |
