A4-23P2A

A4-23P2A Slewing Ring Bearings
Price Not yet
Part No. A4-23P2A
LILY Part No. LA4-23P2A
Series 3000 Series
Gear Without gear
Type Ball
System of Measurement Inch
Correspond FIG2
Outside diameter of outer ring 26"
Inside diameter of inner ring 20"
Height of overall bearing assembly 1.82"
Height of inner ring 1.53"
Height of outer ring 1.53"
Internal diameter on outer ring 22.99"
External diameter on inner ring 23.01"
Bolt circle in outer ring 25"
Number holes in outer ring 12
Size of hole in outer ring 0.53
Bolt circle in inner ring 21"
Number holes in inner ring 12
Size of hole in inner ring 1/2-13
Ring Material 42CRO or 170MN
Ball Materrial 52220_Chrome_Steel
Cage Materia Nylon or 420 Series Stainless Steel
Seal Materia NBR
RoHS Compliant
REACH Compliant

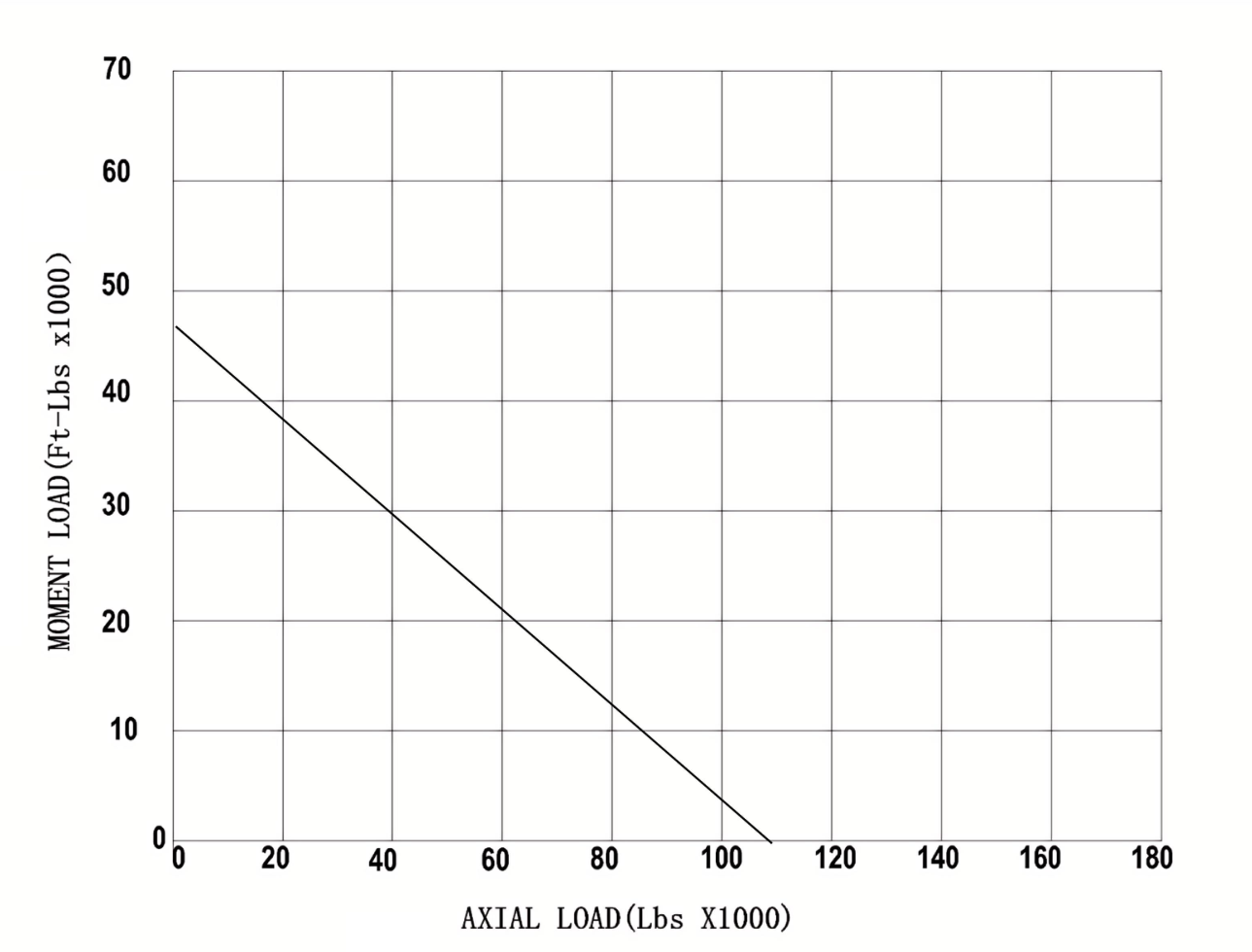

Moment load rating 478000ft-lbs
Force perpendicular to bearing axis of rotation 109000lbs
Weight 83 lbs
A4-23P2A Slewing Ring Bearings cad drawing
