A14-24P1A

A14-24P1A Slewing Ring Bearings
Price Not yet
Part No. A14-24P1A
LILY Part No. LA14-24P1A
Series 3000 Series
Gear Without gear
Type Ball
System of Measurement Inch
Correspond FIG1
Outside diameter of outer ring 28.75"
Inside diameter of inner ring 19.12"
Height of overall bearing assembly 3.62"
Height of inner ring 3.25"
Height of outer ring 3.25"
Internal diameter on outer ring 23.96"
External diameter on inner ring 24.04"
Bolt circle in outer ring 27.375"
Number holes in outer ring 30
Size of hole in outer ring 0.81
Bolt circle in inner ring 20.625"
Number holes in inner ring 30-1
Size of hole in inner ring 0.81
Ring Material 42CRO or 178MN
Ball Materrial 52228_Chrome_Steel
Cage Materia Nylon or 428 Series Stainless Steel
Seal Materia NBR
RoHS Compliant
REACH Compliant

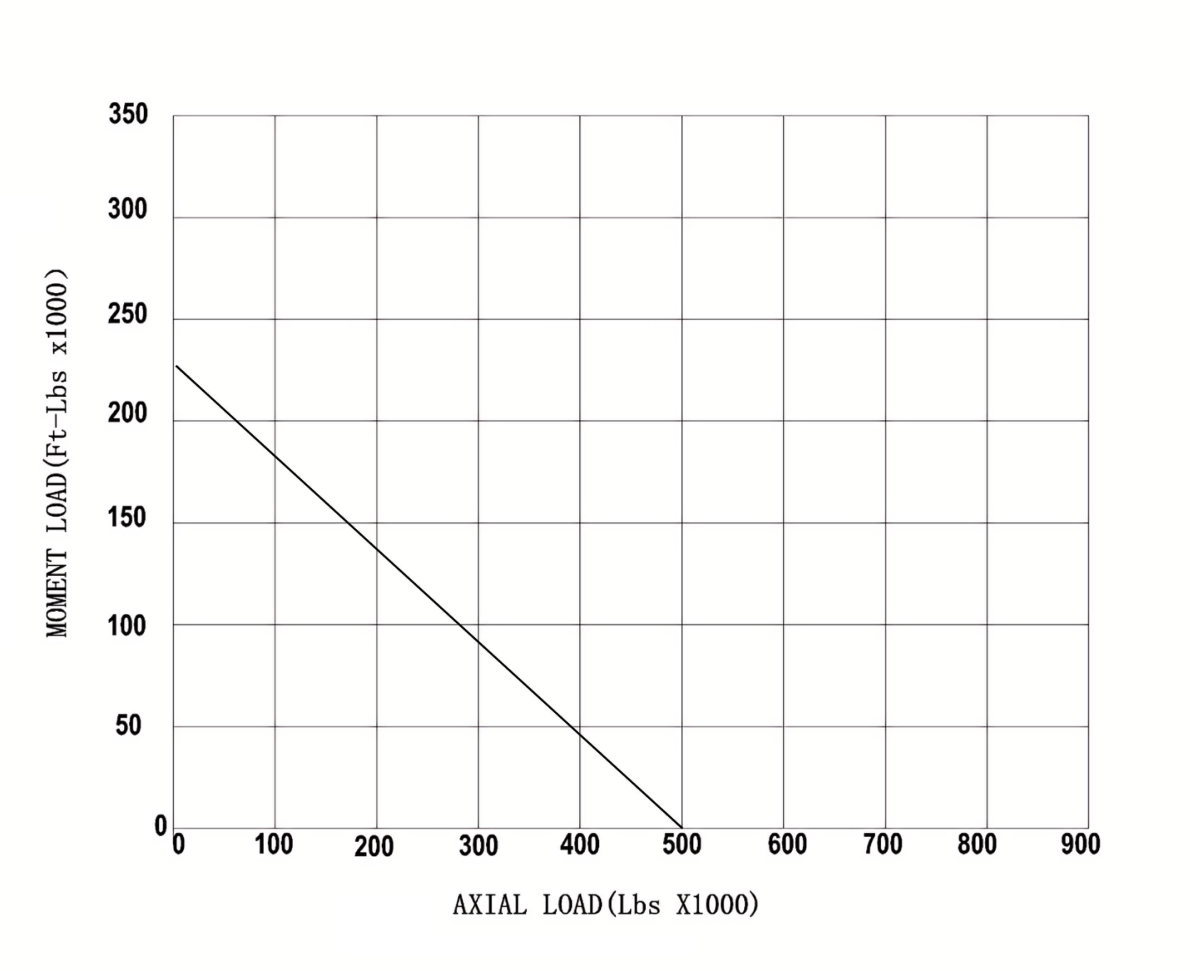

Moment load rating 228000ft-lbs
Force perpendicular to bearing axis of rotation 499000lbs
Weight 294 lbs
A14-24P1A Slewing Ring Bearings cad drawing
