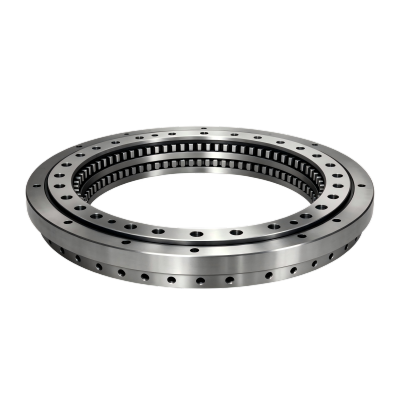

3R16-102P5
| Part Number | 3R16-102P5 |
Brand: LILY  | |
Equivalent: ROTEK |
| System of Measurement | Inch |
| Series | 10000 Series |
| Gear | Without Gear |
| Type | Roller |
| Bearing Type | Standard |
| Product Type | Slewing Beraing |
| Inside Diameter Of Inner Ring | 89.38" |
| Outside Diameter Of Outer Ring | 116.75" |
| Internal Diameter On Outer Ring | 106.38" |
| External Diameter On Inner Ring | 105.04" |
| Height Of Overall Bearing Assembly | 14.12" |
| Height Of Inner Ring | 12.12" |
| Height Of Outer Ring | 11.75" |
| Bolt Circle In Inner Ring | 93.500" |
| Bolt Circle In Outer Ring | 112.625" |
| Size Holes In Inner Ring | 2.12 |
| Size Holes In Outer Ring | 2.12 |
| Number Holes In Inner Ring | 48 |
| Number Holes In Outer Ring | 48 |
| Basic Static Load Rating(C0a) | 10365000 lbs |
| Basic Static Load Rating(C0r) | 2492000 lbs |
| Moment Load Rating | 16451000 ft-lbs |
| Correspond | 3 |
| Ring Material | 42CRO or 50MN |
| Ball Materrial | Chrome Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 13500 lbs |
| K | 2 |
})
INTERCHANGE
The LILY bearing part series 3R16-102P5 is a potential replacement for these common bearing part numbers.
LILY
ROTEK
L3R16-102P5
3R16-102P5
