Slewing Ring Bearings

38 0841 01 Slewing Ring Bearings

LILY Interchangeable From Rollix
38 0841 01 Slewing Ring Bearings
Price Not yet
Specifications
Part Number 38 0841 01
Gear Internal gear
Geometry
External Diameter (DR) 916
Internal Diameter (di) 736
Height(H) 56
Weight(kg) 70
Gear Data
Pitch Diameter of Gear (D2) 752
Module(m) 8
Number of teeth(z) 94
Pressure Angle of Gear Teeth (?) 20
Tooth Form Droite
Mounting Holes
Bolt Circle in Outer Ring (Lo) 890
Number Holes in Outer Ring (no) 40
Bolt Circle in Inner Ring (Li) 805
Number Holes in Inner Ring (ni) 40
MEASUREMENTS IN MILLIMETERS

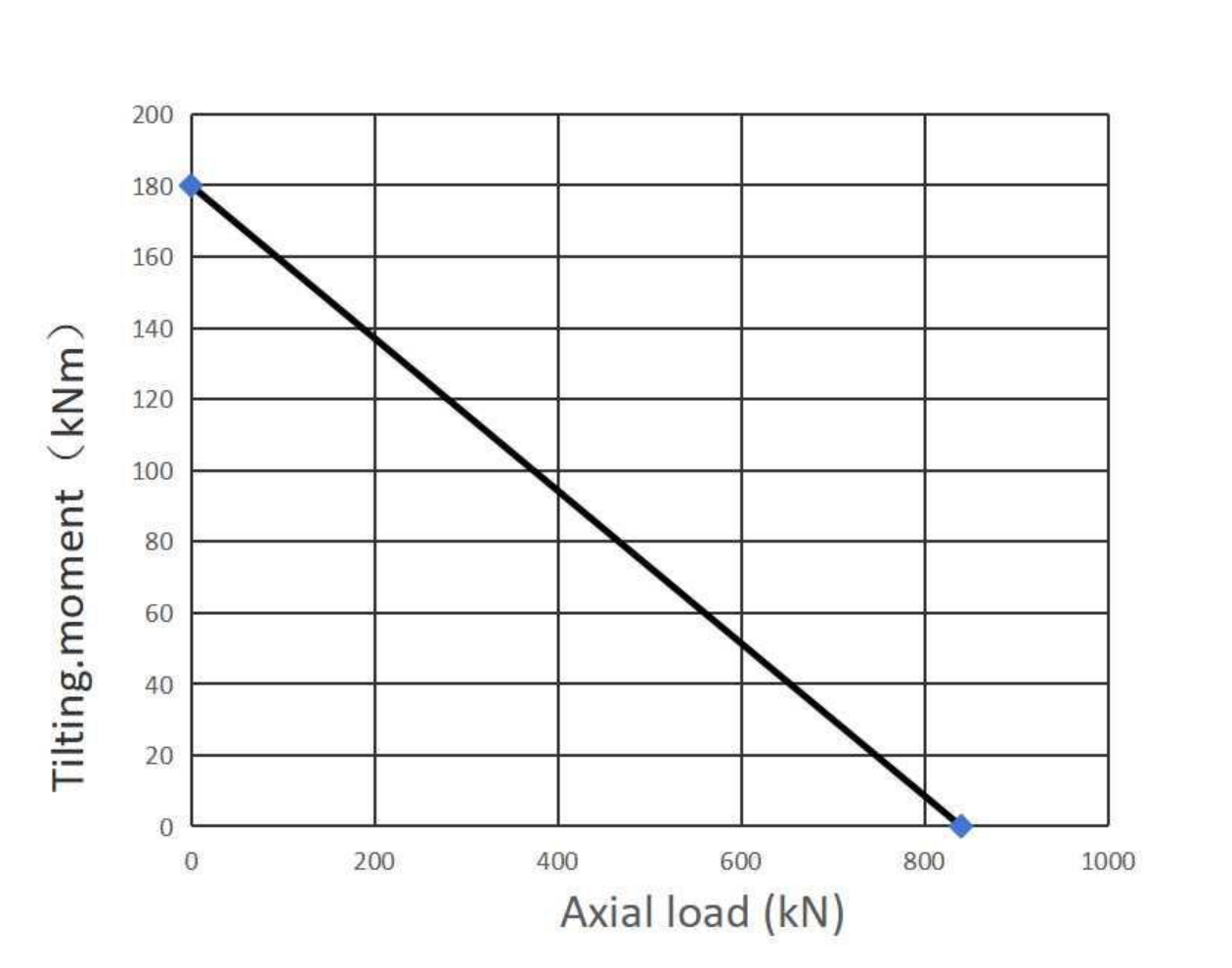

MAXIMUM DEFLECTION
MAXIMUM MEASUREMENT IN 1 POINT
