38 0641 01 Slewing Ring Bearings

LILY Interchangeable From Rollix
38 0641 01 Slewing Ring Bearings
Price Not yet
Specifications
Part Number 38 0641 01
Gear Internal gear
Geometry
External Diameter (DR) 716
Internal Diameter (di) 546
Height(H) 56
Weight(kg) 51
Gear Data
Pitch Diameter of Gear (D2) 558
Module(m) 6
Number of teeth(z) 93
Pressure Angle of Gear Teeth (?) 20
Tooth Form Droite
Mounting Holes
Bolt Circle in Outer Ring (Lo) 690
Number Holes in Outer Ring (no) 36
Bolt Circle in Inner Ring (Li) 605
Number Holes in Inner Ring (ni) 36
MEASUREMENTS IN MILLIMETERS
MAXIMUM DEFLECTION
MAXIMUM MEASUREMENT IN 1 POINT

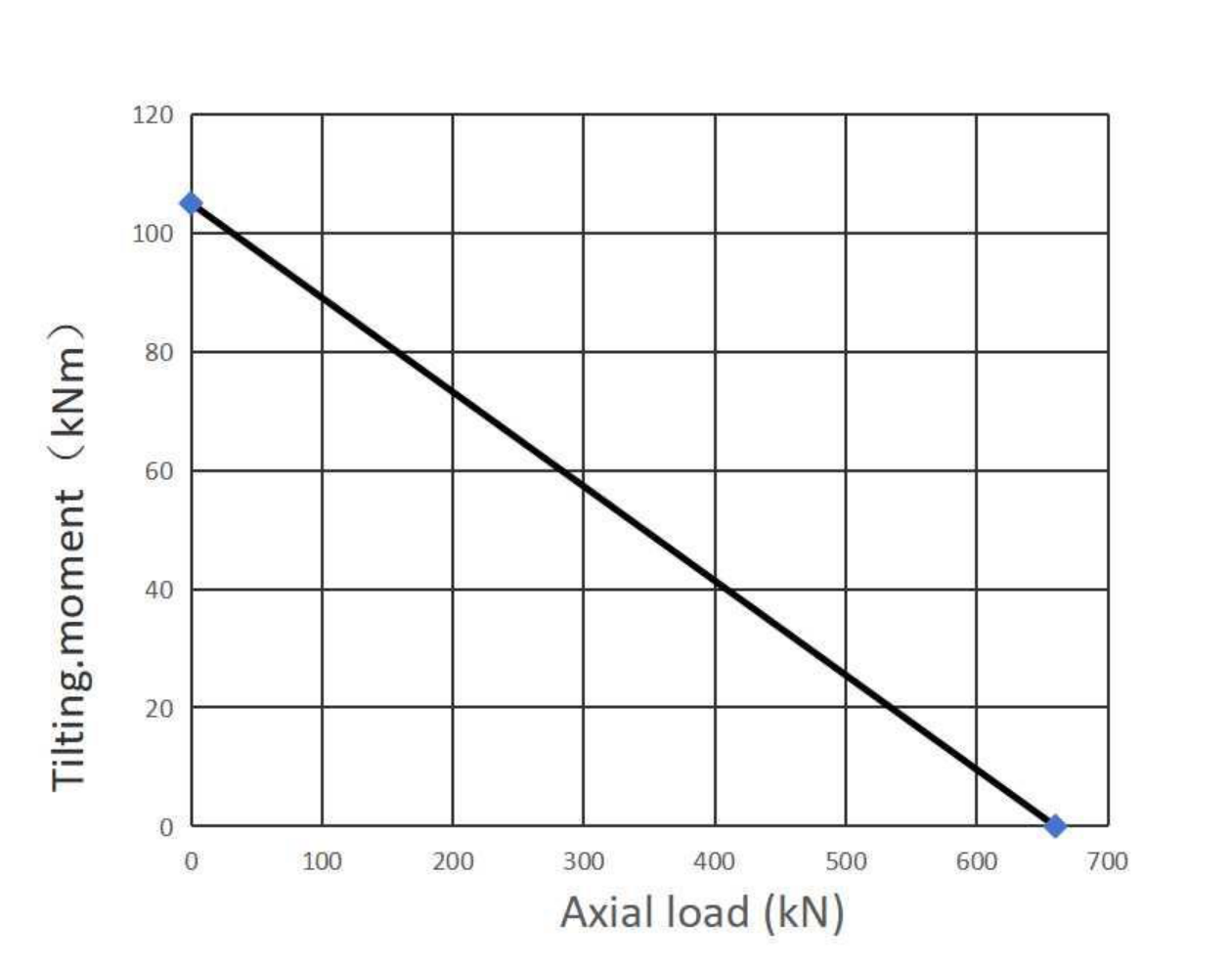

38 0641 01 Slewing Ring Bearings
