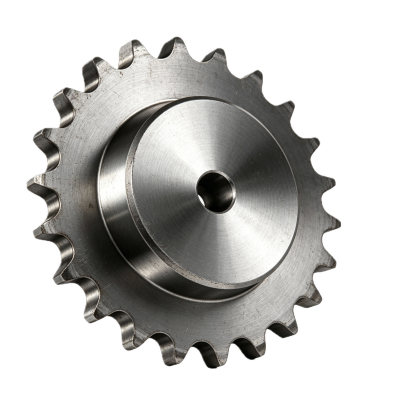

35BTB25
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | 35BTB25 |
Brand: LILY  |
Interchangeable With: Martin |
Characteristics |
|
| System of Measurement | Inch |
| Number Of Teeth | 25 |
| For Roller Chain Trade Size | 35 |
| Type | B |
| Bushing Size | 1210 |
Dimensions |
|
| OD | 3.194" |
| Pitch Diameter | 2.992" |
| Bore Max | 1.25" |
| Chain Pitch | 0.375" |
| Dimensions C | 2.438" |
| Dimensions L | 1" |
Material |
|
| Material | Steel |
Properties |
|
| WT.lb(APPROX) Rim Only | 1.2 lbs |
| WT.lb(APPROX) Bushing Only | 0.6 lbs |
Design Features of 35BTB25 Sprockets
35BTB25 are medium-duty sprockets designed for ANSI No. 35 roller chains, offering a balance between compact size and higher load capacity. They feature teeth with a 3/8-inch pitch for precise chain engagement, ensuring smooth power transmission in moderate-load applications. Commonly manufactured from steel, stainless steel, or engineering plastics, they provide strength, wear resistance, and corrosion protection as needed. Available in multiple tooth counts, hub styles, and bore configurations—such as plain bore, finished bore, or taper-lock—they allow flexibility for various installation requirements.
What Benefits Can 35BTB25 Sprockets Provide?
- Balanced Size and Strength – Offers higher load capacity than smaller-pitch sprockets while remaining compact.
- Smooth Power Transmission – Precise tooth spacing ensures reliable, efficient chain engagement.
- Steel Options – Available in steel for strength, stainless steel for corrosion resistance, and engineering plastics for lightweight applications.
- Versatile Mounting – Offered in plain bore, finished bore, and taper-lock styles to fit different shaft and mounting requirements.
- Durability – Designed for moderate-load applications, providing long service life with minimal wear.
- Adaptability – Suitable for both power transmission and conveying in a variety of industrial settings.
What Can 35BTB25 Sprockets Be Used for?
- Light to Medium-Duty Machinery – Ideal for powering conveyors, packaging equipment, and processing machines.
- Agricultural Equipment – Used in small tractors, harvesters, and related machinery requiring reliable chain drives.
- Steel Handling Systems – Suitable for pallet conveyors, sorters, and automated warehousing equipment.
- Food and Beverage Industry – Common in packaging lines and machinery with hygienic or corrosion-resistant requirements.
- Textile Machinery – Provides consistent, moderate-speed power transmission in fabric handling and processing equipment.
- Printing and Paper Industry – Drives rollers and conveyors in printing presses and paper handling systems.
