24 0941 01 Slewing Ring Bearings

LILY Interchangeable From Rollix
24 0941 01 Slewing Ring Bearings
Price Not yet
Specifications
Part Number 24 0941 01
Gear External gear
Geometry
External Diameter (DR) 1046
Internal Diameter (di) 834
Height(H) 56
Weight(kg) 76
Gear Data
Pitch Diameter of Gear (D2) 1032
Module(m) 8
Number of teeth(z) 129
Pressure Angle of Gear Teeth (?) 20
Tooth Form Droite
Mounting Holes
Bolt Circle in Outer Ring (Lo) 985
Number Holes in Outer Ring (no) 20
Bolt Circle in Inner Ring (Li) 862
Number Holes in Inner Ring (ni) 20
MEASUREMENTS IN MILLIMETERS
MAXIMUM DEFLECTION
MAXIMUM MEASUREMENT IN 1 POINT

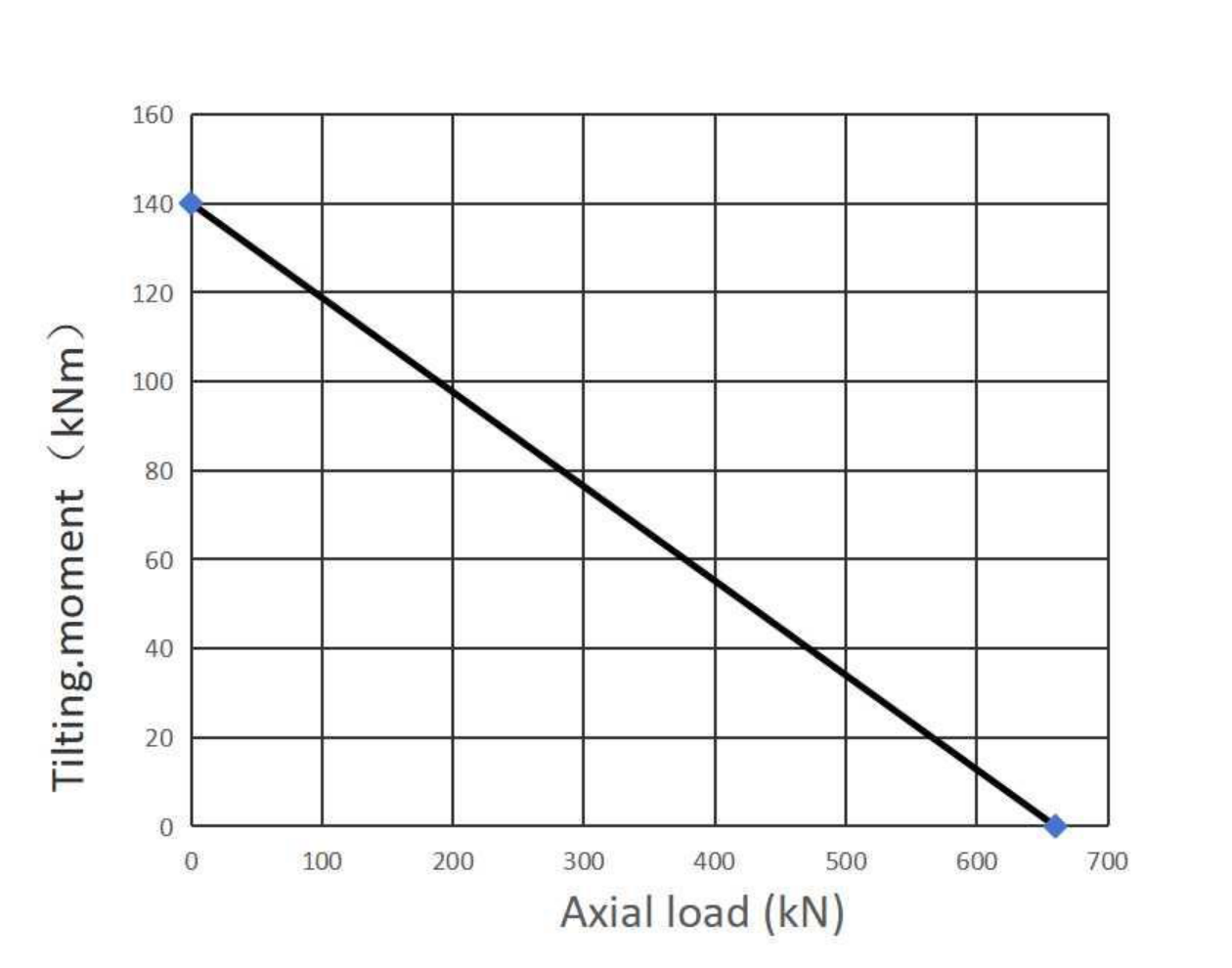

24 0941 01 Slewing Ring Bearings
