23 0741 01 Slewing Ring Bearings

LILY Interchangeable From Rollix
23 0741 01 Slewing Ring Bearings
Price Not yet
Specifications
Part Number 23 0741 01
Gear Without gear
Geometry
External Diameter (DR) 848
Internal Diameter (di) 634
Height(H) 56
Weight(kg) 46
Mounting Holes
Bolt Circle in Outer Ring (Lo) 820
Number Holes in Outer Ring (no) 12
Bolt Circle in Inner Ring (Li) 662
Number Holes in Inner Ring (ni) 16
MEASUREMENTS IN MILLIMETERS
MAXIMUM DEFLECTION
MAXIMUM MEASUREMENT IN 1 POINT

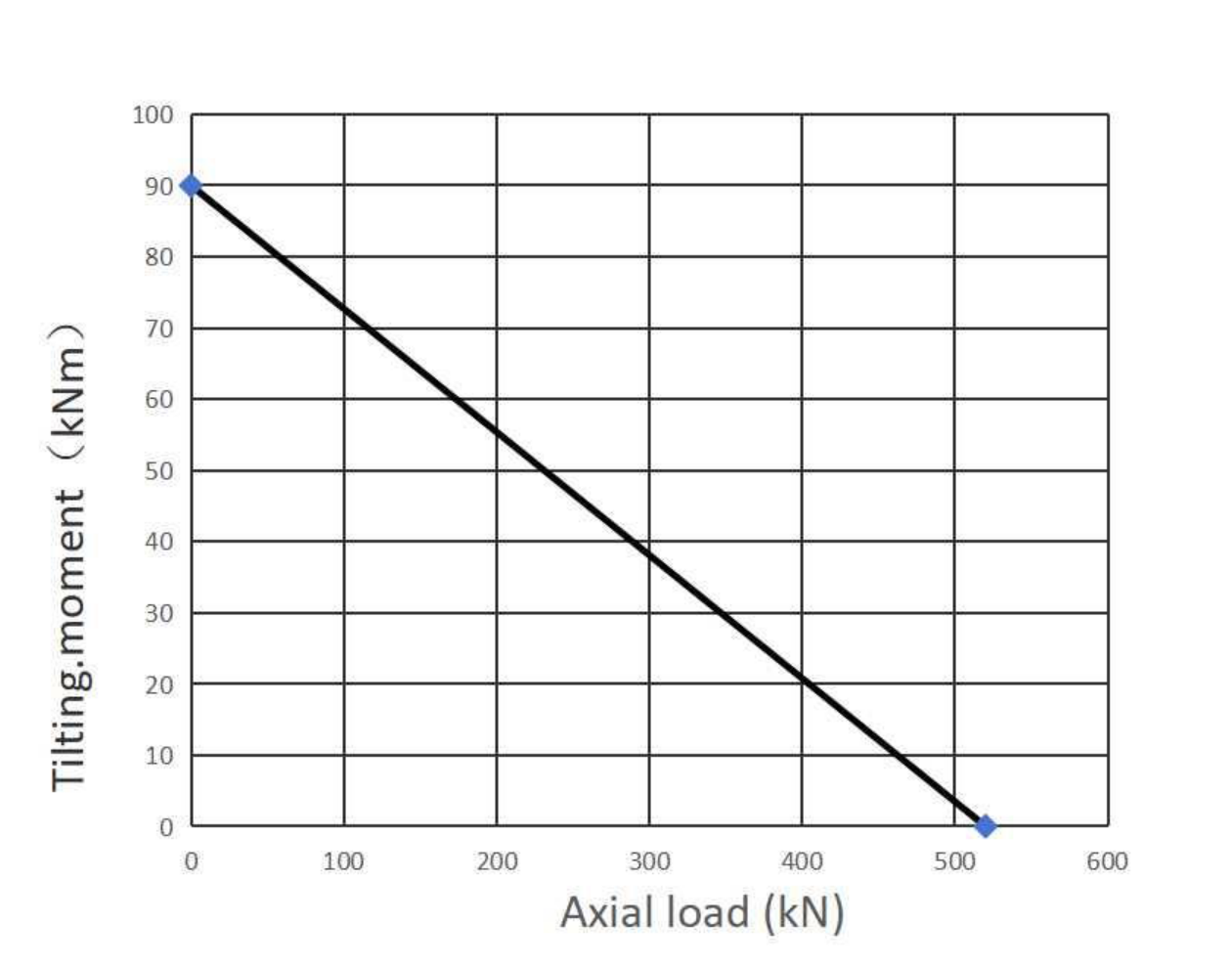

23 0741 01 Slewing Ring Bearings
