21 0411 01 Slewing Ring Bearings

LILY Interchangeable From Rollix
21 0411 01 Slewing Ring Bearings
Price Not yet
Specifications
Part Number 21 0411 01
Gear External gear
Geometry
External Diameter (DR) 505
Internal Diameter (di) 304
Height(H) 56
Weight(kg) 32
Gear Data
Pitch Diameter of Gear (D2) 495
Module(m) 5
Number of teeth(z) 99
Pressure Angle of Gear Teeth (?) 20
Tooth Form Droite
Mounting Holes
Bolt Circle in Outer Ring (Lo) 455
Number Holes in Outer Ring (no) 10
Bolt Circle in Inner Ring (Li) 332
Number Holes in Inner Ring (ni) 12
MEASUREMENTS IN MILLIMETERS
MAXIMUM DEFLECTION
MAXIMUM MEASUREMENT IN 1 POINT

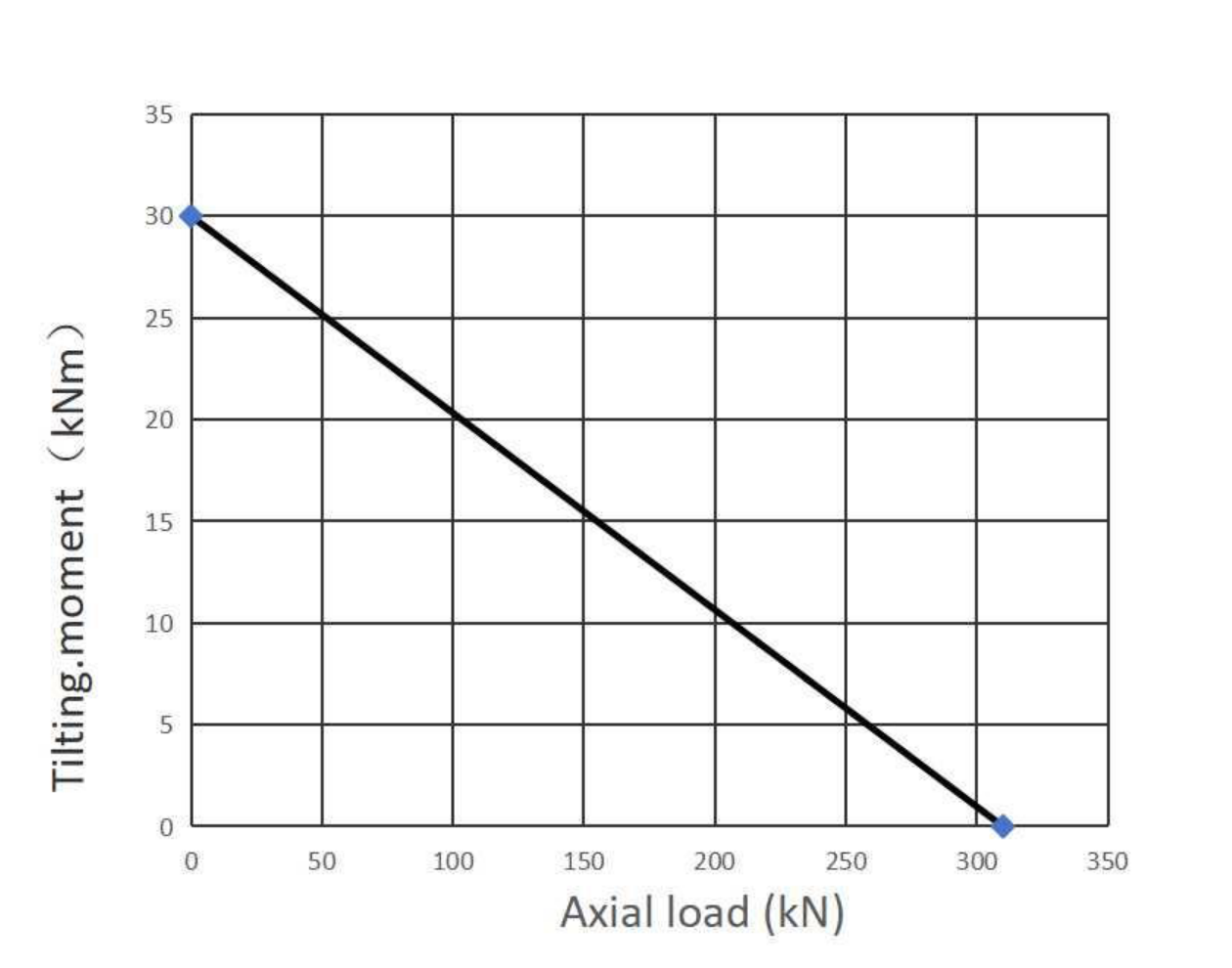

21 0411 01 Slewing Ring Bearings
