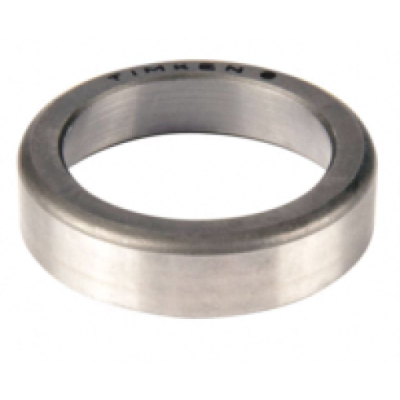

15250X
| Part Number | 15250X |
Brand: LILY  | |
Equivalent: Timken |
| System of Measurement | Inch |
| Type | Cups |
| Bearing Part Number | 15100-15250X , 15100-S-15250X , 15101-15250X , 15102-15250X , 15103-15250X , 15106-15250X , 15112-15250X , 15113-15250X , 15115-15250X , 15116-15250X , 15117-15250X , 15117X-15250X , 15118-15250X , 15119-15250X , 15120-15250X , 15120A-15250X , 15123-15250X , 15125-15250X , 15126-15250X |
| Cups Type | Standard |
| Series | 15000 |
| Outer Dia | 2.5" |
| Outer Dia Tolerance | +0.001" to 0 |
| Cup Width | 0.625" |
| Cup Width Tolerance | +0.002" to -0.01 |
| Cup Backface ToClear Radius | 0.06" |
| Cup Frontface Backing Diameter | 2.34" |
| Cup Backface Backing Diameter | 2.17" |
| Ring Material | Chrome Steel |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| RoHS | Compliant |
| REACH | Compliant |
})
