Slewing Ring Bearings

06 2002 00 Slewing Ring Bearings

LILY Interchangeable From Rollix
06 2002 00 Slewing Ring Bearings
Price Not yet
Specifications
Part Number 06 2002 00
Gear External gear
Geometry
External Diameter (DR) 2267
Internal Diameter (di) 1815
Height(H) 140
Weight(kg) 1174
Gear Data
Pitch Diameter of Gear (D2) 2240
Module(m) 16
Number of teeth(z) 139
Pressure Angle of Gear Teeth (?) 20
Tooth Form Droite
Mounting Holes
Bolt Circle in Outer Ring (Lo) 2124
Number Holes in Outer Ring (no) 72
Bolt Circle in Inner Ring (Li) 1880
Number Holes in Inner Ring (ni) 72
MEASUREMENTS IN MILLIMETERS

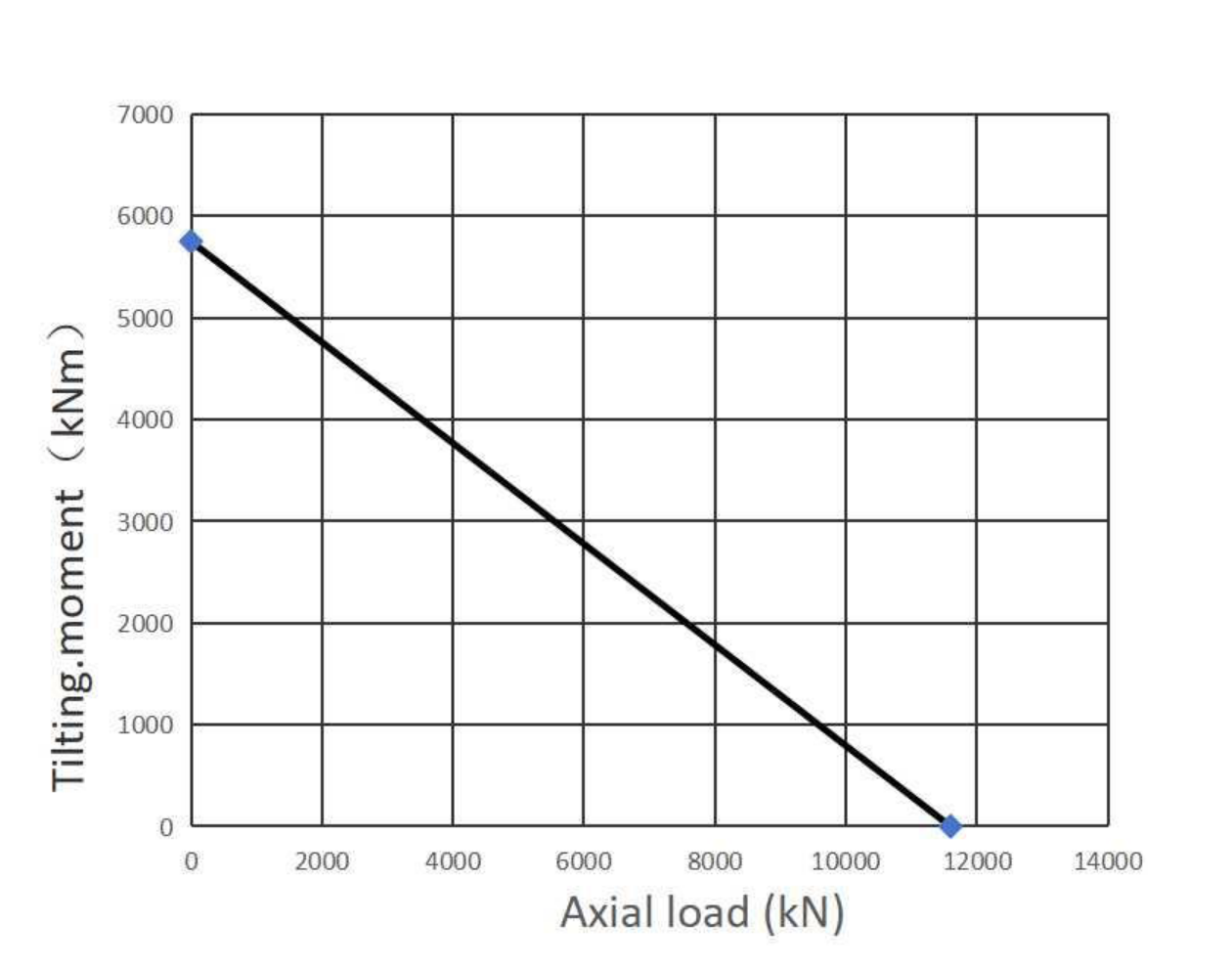

MAXIMUM DEFLECTION
MAXIMUM MEASUREMENT IN 1 POINT
06 2002 00 Slewing Ring Bearings
