03 0342 05
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | 03 0342 05 |
Brand: LILY  |
Interchangeable With: ROLLIX |
| System of Measurement | Metric |
| Series | rectangular sections |
| Gear | Without Gear |
| Type | Ball |
| Bearing Type | Standard |
| Product Type | Slewing Bearing |
| Inside Diameter Of Inner Ring | 10.433" |
| Outside Diameter Of Outer Ring | 17.323" |
| Height Of Overall Bearing Assembly | 1.969" |
| Height Of Inner Ring | 1.732" |
| Height Of Outer Ring | 1.732" |
| Bolt Circle In Inner Ring | 11.614" |
| Bolt Circle In Outer Ring | 15.354" |
| Size Holes In Inner Ring | ref. Drawing |
| Size Holes In Outer Ring | ref. Drawing |
| Number Holes In Inner Ring | 16 |
| Number Holes In Outer Ring | 16 |

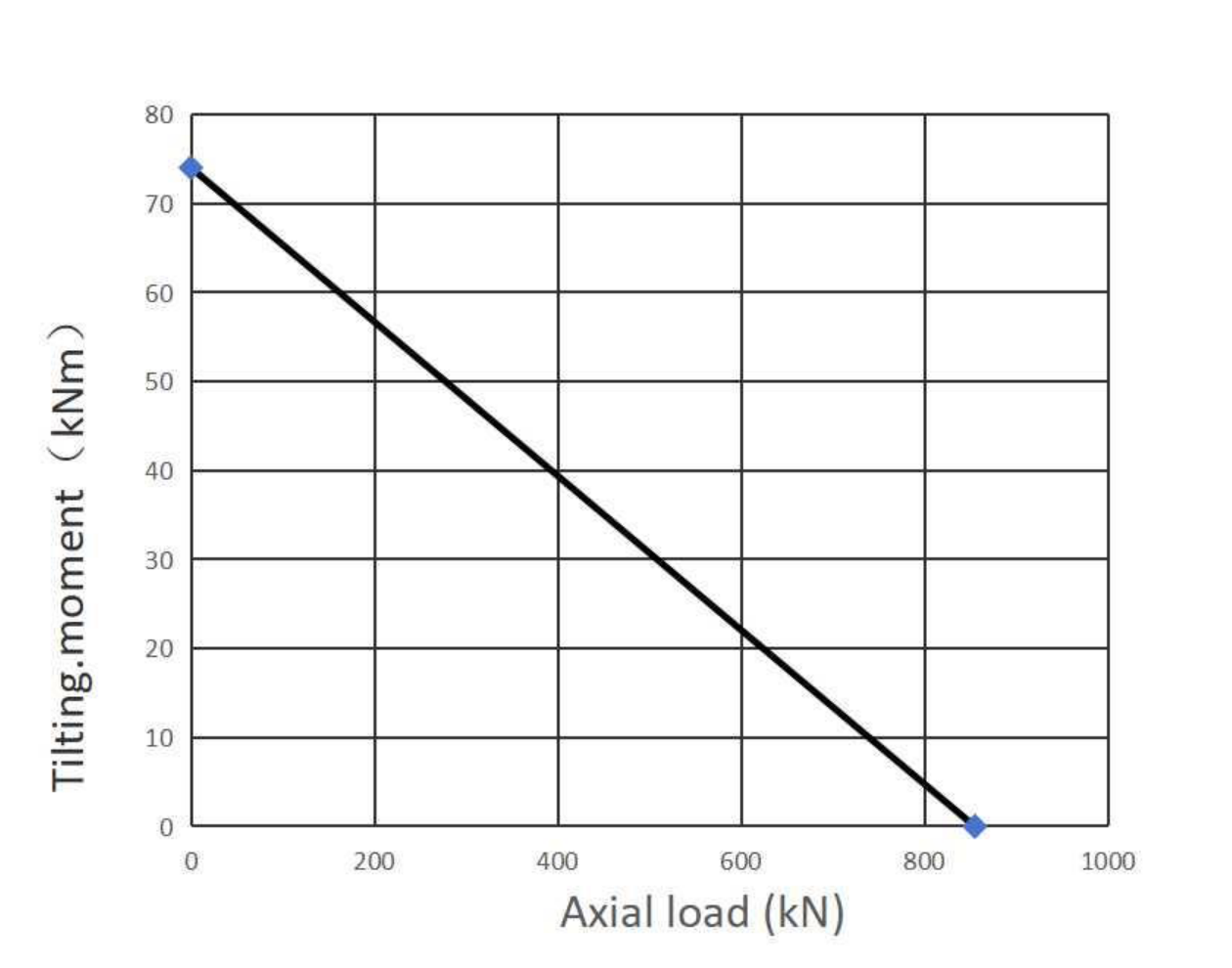

| Axial Load | 855 kN |
| Tilting Moment | 74 kNm |
| Ring Material | 42CRMO or 50MN or 440C |
| Ball Material | Chrome Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 29 kg |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.
Design Features of 03 0342 05 Bearing
03 0342 05 features an inner and outer ring with four contact points between the steel balls and the rings, allowing for the support of radial, axial, and tilting loads. 03 0342 05 inside diameter of inner ring is 10.433". Its outside diameter of outer ring is 17.323". Its design provides high load capacity, durability, and smooth rotation, making it ideal for applications requiring precise, high-torque performance.
What Benefits Can 03 0342 05 Bearing Provide?
- High Load Capacity: Supports radial, axial, and tilting loads simultaneously, making it ideal for heavy-duty applications.
- Compact Design: Offers high performance in a compact form, saving space in mechanical systems.
- Smooth Rotation: Provides smooth and precise movement with minimal friction, ensuring reliable operation.
- Durability: Designed to withstand harsh conditions and long-term use, offering extended service life.
- Versatility: Suitable for a wide range of applications, including cranes, excavators, and solar tracking systems.
What Can 03 0342 05 Bearing Be Used for?
- Cranes and Excavators: Used in heavy machinery for rotating and lifting functions.
- Solar Tracking Systems: Enables smooth and precise tracking of solar panels to optimize energy capture.
- Wind Turbines: Facilitates the rotation of the turbine for optimal positioning and energy generation.
- Radar and Antenna Systems: Provides stable rotation for radar dishes and communication antennas.
- Offshore and Marine Equipment: Used in rotating equipment like winches and turntables in marine and offshore platforms.
