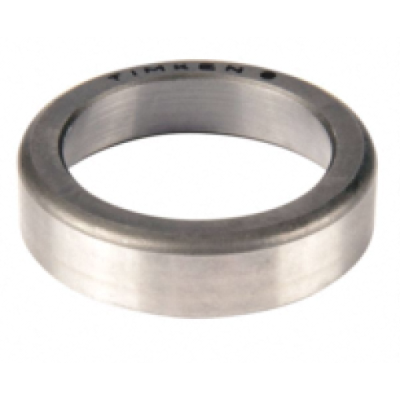

02419
| Part Number | 02419 |
Brand: LILY  | |
Equivalent: Timken |
| System of Measurement | Inch |
| Type | Cups |
| Bearing Part Number | 02473-02419 , 02473X-02419 , 02474-02419 , 02474A-02419 , 02474W-02419 , 02475-02419 , 02476-02419 , 02476X-02419 |
| Cups Type | Standard |
| Series | 02400 |
| Outer Dia | 2.6373" |
| Outer Dia Tolerance | +0.001" to 0 |
| Cup Width | 0.6299" |
| Cup Width Tolerance | +0.002" to -0.01 |
| Cup Backface ToClear Radius | 0.06" |
| Cup Frontface Backing Diameter | 2.46" |
| Cup Backface Backing Diameter | 2.32" |
| Ring Material | Chrome Steel |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| RoHS | Compliant |
| REACH | Compliant |
})
