02 1415 00 Slewing Ring Bearings

LILY Interchangeable From Rollix
02 1415 00 Slewing Ring Bearings
Price Not yet
Specifications
Part Number 02 1415 00
Gear Internal gear
Geometry
External Diameter (DR) 1560
Internal Diameter (di) 1215
Height(H) 110
Weight(kg) 471
Gear Data
Pitch Diameter of Gear (D2) 1236
Module(m) 12
Number of teeth(z) 102
Pressure Angle of Gear Teeth (?) 20
Tooth Form Droite
Mounting Holes
Bolt Circle in Outer Ring (Lo) 1500
Number Holes in Outer Ring (no) 48
Bolt Circle in Inner Ring (Li) 1330
Number Holes in Inner Ring (ni) 48
MEASUREMENTS IN MILLIMETERS

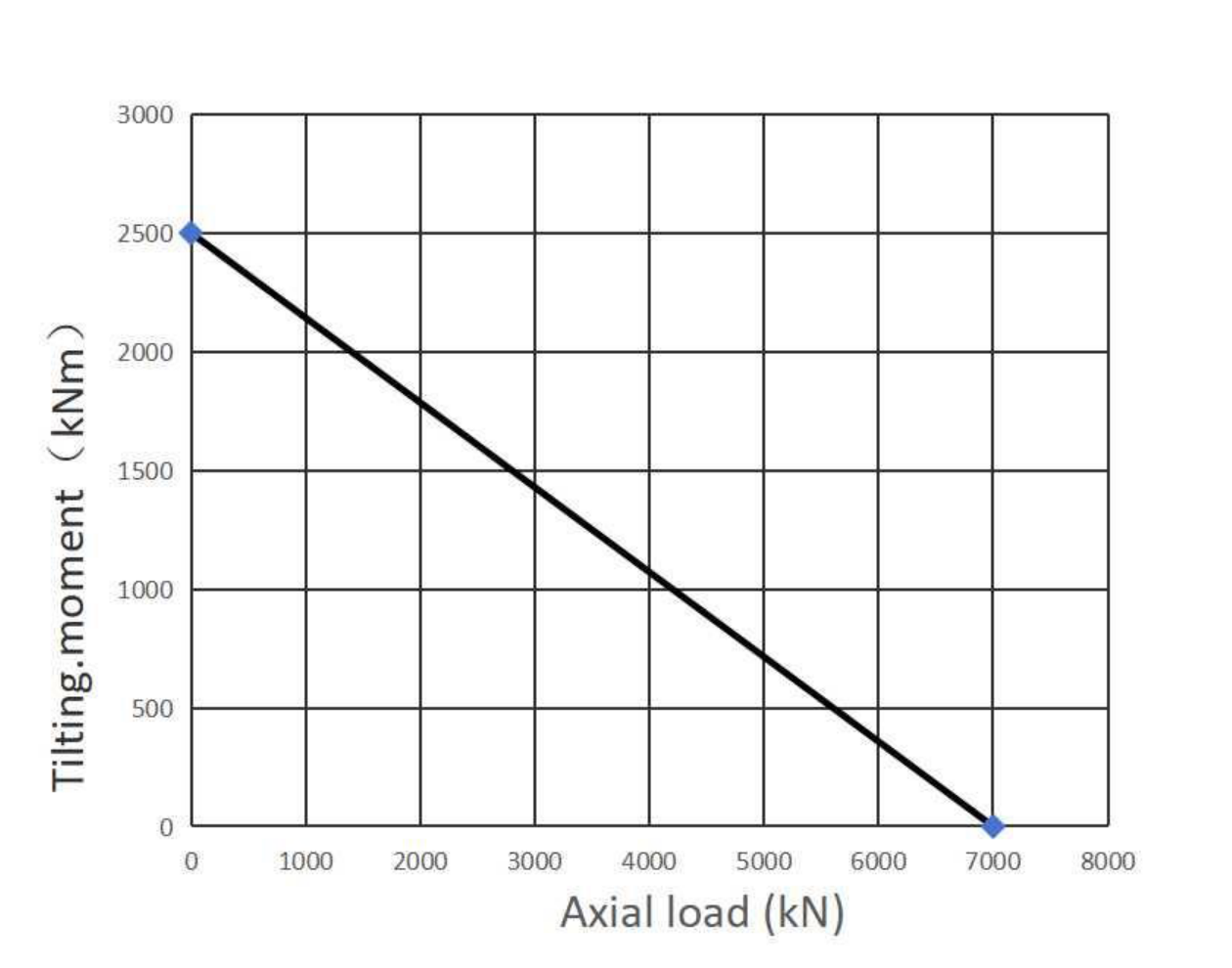

MAXIMUM DEFLECTION
MAXIMUM MEASUREMENT IN 1 POINT
