012.20.0895.000.11.1504
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | 012.20.0895.000.11.1504 |
Brand: LILY  |
Interchangeable With: ROTHEERDE |
| System of Measurement | Metric |
| Series | Series 01 |
| Gear | Internal Gear |
| Type | Ball |
| Bearing Type | Standard |
| Product Type | Slewing Bearing |
| Inside Diameter Of Inner Ring | 30.89" |
| Outside Diameter Of Outer Ring | 34.633" |
| Internal Diameter On Outer Ring | 38.257" |
| External Diameter On Inner Ring | 33.648" |
| External Diameter On Outer Ring | 32.308" |
| Height Of Overall Bearing Assembly | 3.231" |
| Height Of Inner Ring | 3.073" |
| Height Of Outer Ring | 2.285" |
| Bolt Size | 0.63" |
| Bolt Circle In Inner Ring | 33.49" |
| Bolt Circle In Outer Ring | 37.194" |
| Size Holes In Inner Ring | 0.69" |
| Size Holes In Outer Ring | 0.69" |
| Number Holes In Inner Ring | 30 |
| Number Holes In Outer Ring | 30 |
| Pitch Diameter Of Gear | 31.52" |
| Module | 8 |
| Number Of Gear Teeth | 100 |
| Permissible Tooth Forces T | 5085 lbs |
| Max Gear Tooth Load Fz | 10170 lbs |
| Basic Static Load Rating(C0a) | 519311.1 lbf |

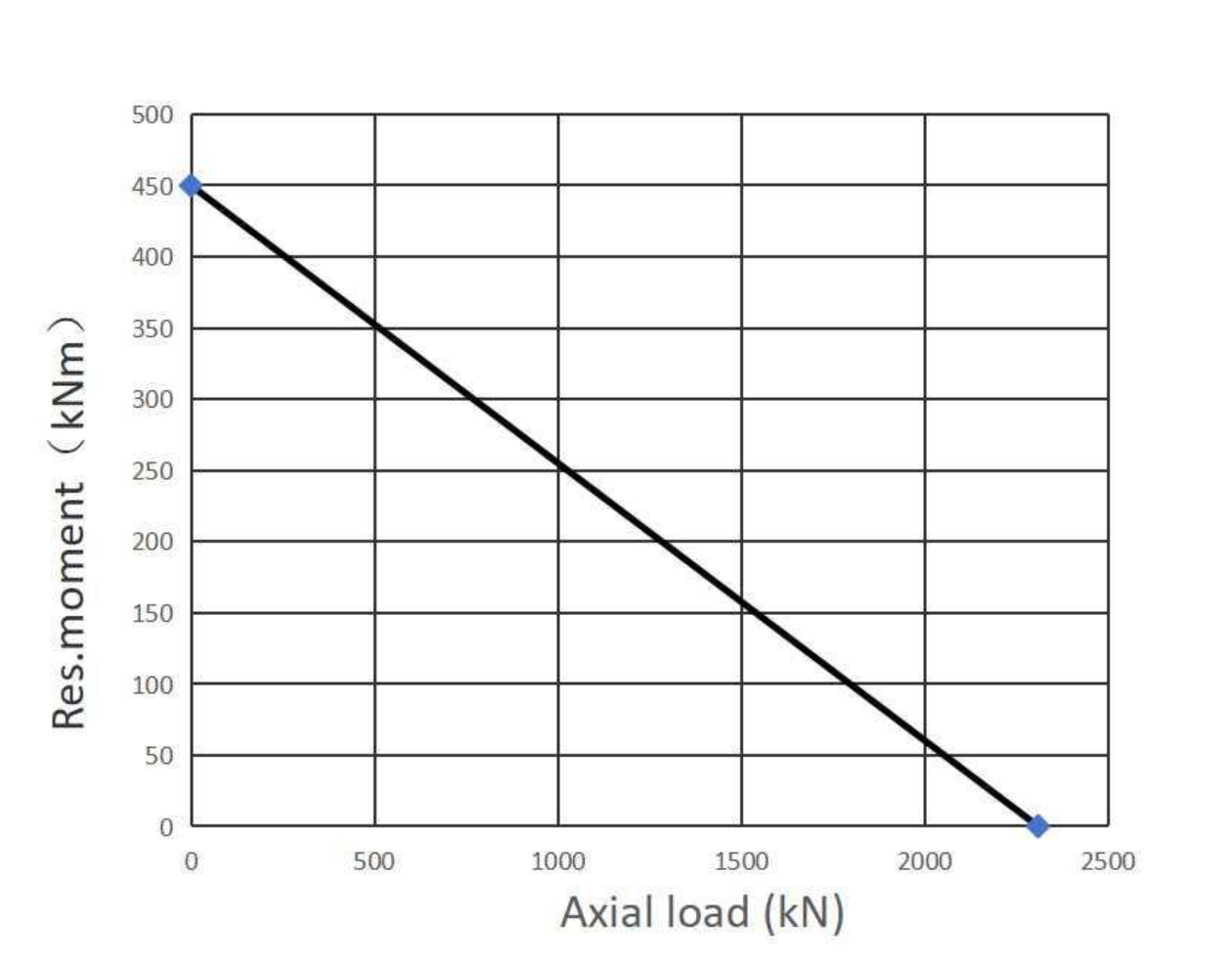

| Moment Load Rating | 331902 ft-lbf |
| Correspond | FIG2 |
| Tooth Width | 1.97" |
| Tooth Neck Height | 0.315" |
| Ring Material | 42CRMO or 50MN or 440C |
| Ball Material | Chrome Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 118 kg |
| Diameter Of Bearing Raceway | 35.263" |
| Number Of Grease Nipples | 2 |
| Distance Between Bottom Outer Ring/Inner Ring | 0.158" |
| Distance at top Outer Ring/Inner Ring | 0.946" |
| Thread Depth | 35 |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

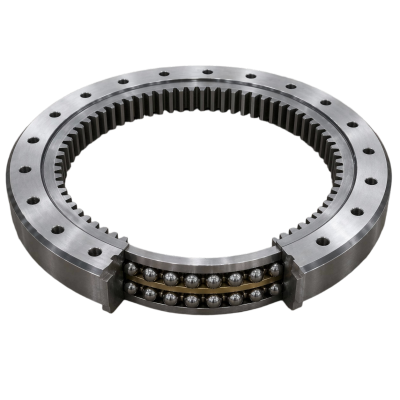

Design Features of 012.20.0895.000.11.1504 Bearing
012.20.0895.000.11.1504 features an advanced design with eight contact points between the balls and raceways, providing enhanced stability and load distribution. 012.20.0895.000.11.1504 inside diameter of inner ring is 30.89". Its outside diameter of outer ring is 34.633". This design supports complex combinations of radial, axial, and moment loads while ensuring smooth rotation and high precision in demanding applications.
What Benefits Can 012.20.0895.000.11.1504 Bearing Provide?
- Enhanced Load Capacity: Distributes loads more effectively, accommodating complex radial, axial, and moment loads.
- Increased Stability: Provides better resistance to deformation and improved performance under high stress.
- High Precision: Ensures smooth and accurate rotation, even in demanding conditions.
- Durability: Designed for long service life, even in harsh or heavy-duty environments.
- Versatility: Suitable for applications requiring high precision and stability, such as robotics, cranes, and aerospace systems.
What Can 012.20.0895.000.11.1504 Bearing Be Used for?
- Aerospace Equipment: Provides precise and stable motion for satellite positioning systems and aircraft components.
- Heavy Machinery: Used in cranes, excavators, and drilling rigs to support complex load combinations during operation.
- Robotics: Ensures accurate and stable movement in robotic arms and automation systems.
- Wind Turbines: Facilitates smooth and reliable yaw and pitch control for optimal energy generation.
- Military and Defense Systems: Supports radar, missile launchers, and tracking systems requiring precise and stable rotation.
