Medium-Pressure Steel Threaded Pipe Flanges

17 Products

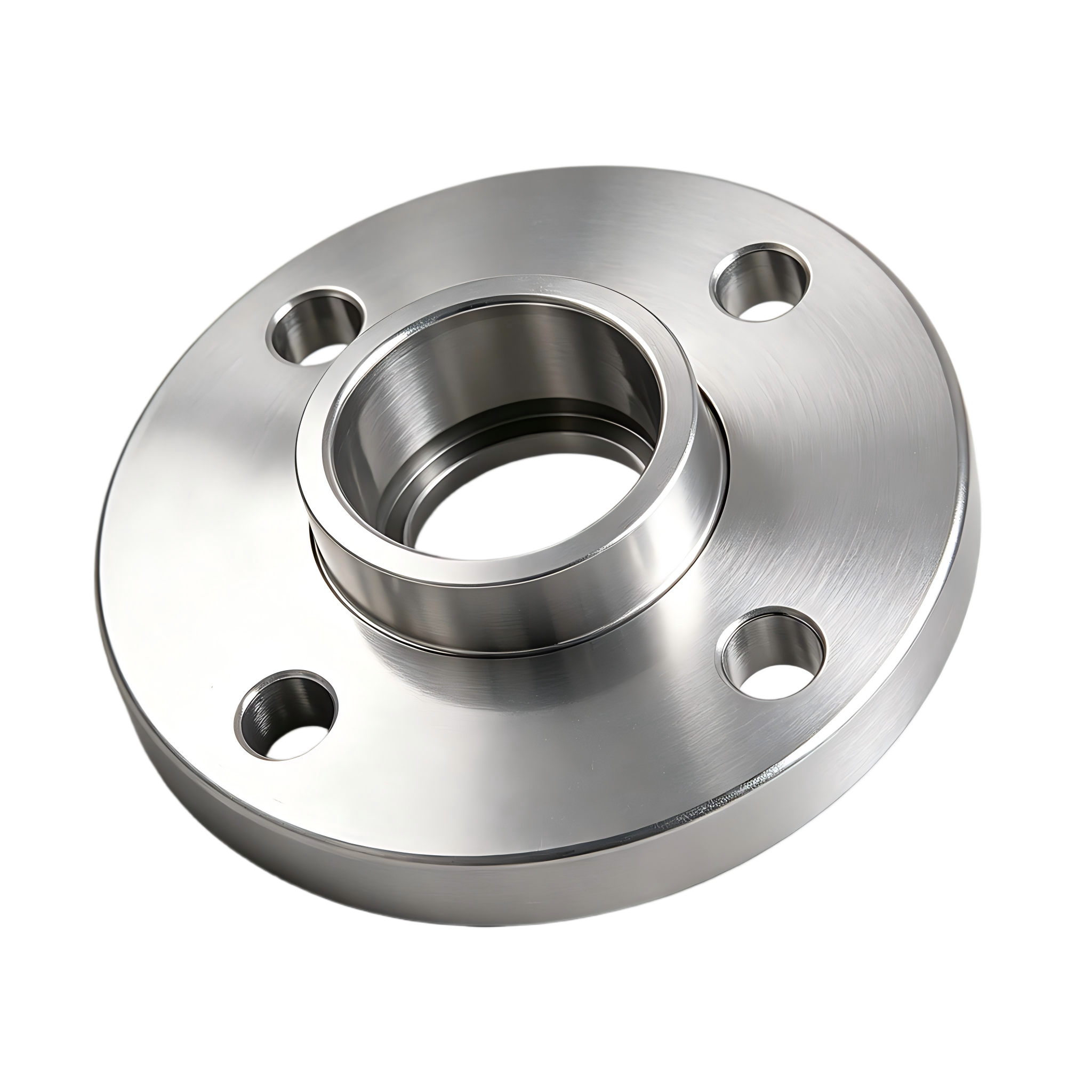

Medium-Pressure Steel Threaded Pipe Flanges Medium-Pressure Steel Threaded Pipe Flanges
Part Number
Pipe Size
Thread Type
Flange OD
Flanged Connection Surface
For Bolt Diameter
Bolt Hole Diameter
Bolt Hole Number of
Bolt Circle Diameter
Maximum Pressure
Maximum Steam Pressure
Material
Price
>
Part Number
Pipe Size
Thread Type
Flange OD
Flanged Connection Surface
For Bolt Diameter
Bolt Hole Diameter
Bolt Hole Number of
Bolt Circle Diameter
Maximum Pressure
Maximum Steam Pressure
Material
Price
>
GIAGKECD
1 1/2
NPT
0.020833"
Raised
0.875000"
0.88"
4
4.5"
1,400 psi @ 72° F
1,300 psi @ 300° F
Steel
$42.92
GIAGKBCE
1 1/2
NPT
0.020833"
Raised
0.75"
0.875000"
4
4.5"
600 psi @ 72° F
300 psi @ 300° F
Steel
$28.97
GIAGKBCH
3
NPT
0.031250"
Raised
0.75"
0.875000"
8
0.104167"
600 psi @ 72° F
300 psi @ 300° F
Steel
$45.95
GIAGKECF
3
NPT
0.031250"
Raised
0.875000"
0.88"
8
6.62"
1,400 psi @ 72° F
1,300 psi @ 300° F
Steel
$77.75
GIAGKBCJ
6
NPT
0.041667"
Raised
0.75"
0.875000"
12
0.062500"
600 psi @ 72° F
300 psi @ 300° F
Steel
$132.99
GIAGKBCD
1 1/4
NPT
0.05"
Raised
0.625000"
0.75"
4
3.875000"
600 psi @ 72° F
300 psi @ 300° F
Steel
$23.58
GIAGKBCG
2 1/2
NPT
0.071429"
Raised
0.75"
0.875000"
8
0.175000"
600 psi @ 72° F
300 psi @ 300° F
Steel
$42.59
GIAGKECG
4
NPT
0.075000"
Raised
1"
1"
8
0.062500"
1,400 psi @ 72° F
1,300 psi @ 300° F
Steel
$102.18
GIAGKECC
1
NPT
0.218750"
Raised
0.75"
0.75"
4
0.166667"
1,400 psi @ 72° F
1,300 psi @ 300° F
Steel
$46.34
GIAGKBCC
1
NPT
0.218750"
Raised
0.625000"
0.75"
4
0.166667"
600 psi @ 72° F
300 psi @ 300° F
Steel
$18.54
GIAGKCCG
1/2
NPT
0.25"
Raised
0.5"
0.625000"
4
0.312500"
600 psi @ 72° F
300 psi @ 300° F
Steel
$16.92
GIAGKBCB
3/4
NPT
4.375000"
Raised
0.625000"
0.75"
4
3.25"
600 psi @ 72° F
300 psi @ 300° F
Steel
$18.84
GIAGKBCF
2
NPT
6.5"
Raised
0.625000"
0.75"
8
5"
600 psi @ 72° F
300 psi @ 300° F
Steel
$24.61
GIAGKECE
2
NPT
6.5"
Raised
0.75"
0.75"
8
5"
1,400 psi @ 72° F
1,300 psi @ 300° F
Steel
$47.02
GIAGKBCI
4
NPT
10"
Raised
0.75"
0.875000"
8
0.125000"
600 psi @ 72° F
300 psi @ 300° F
Steel
$55.78
GIAGKCCC
5
NPT
11"
Raised
0.75"
0.875000"
8
0.027778"
600 psi @ 72° F
300 psi @ 300° F
Steel
$95.99
GIAGKECH
6
NPT
14"
Raised
1.125000"
1.12"
12
0.045455"
1,400 psi @ 72° F
1,300 psi @ 300° F
Steel
$286.42
