- Interchangeable With :
- KALLER

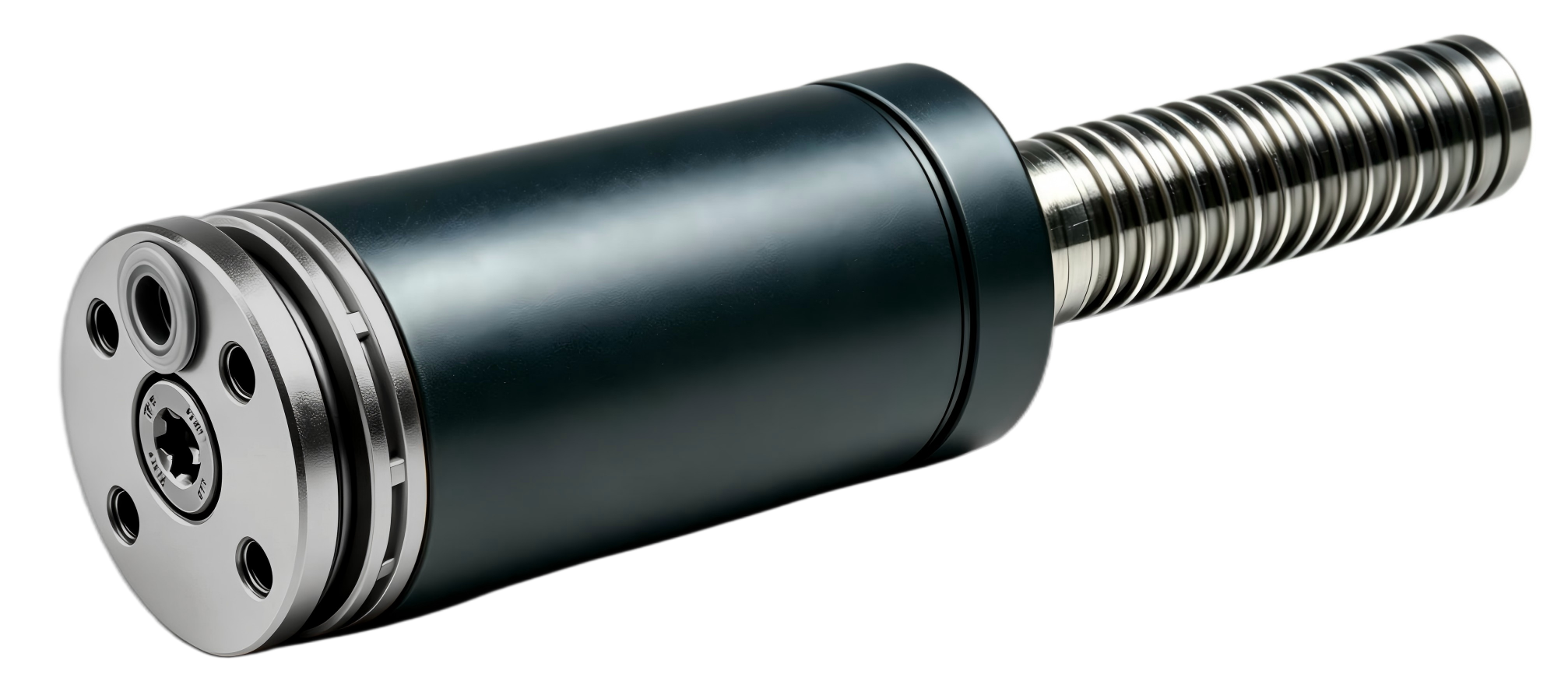

M
180 Products
M
Part Number
Minimum Length
Stroke Length
Total Length
End Force At Full Stroke
Force Increase By Temperature Percent Per
Gas Volume
Initial Force at max. pressure
Max Charging Pressure
Max Piston Rod Velocity
Max. Operating Temperature
Min Charging Pressure
Min. Operating Temperature
Recommended Max Strokes Per Minute
>
Part Number
Minimum Length
Stroke Length
Total Length
End Force At Full Stroke
Force Increase By Temperature Percent Per
Gas Volume
Initial Force at max. pressure
Max Charging Pressure
Max Piston Rod Velocity
Max. Operating Temperature
Min Charging Pressure
Min. Operating Temperature
Recommended Max Strokes Per Minute
>
M2-80-Red
4.92"
3.15"
8.07"
683 lbf
0.17 °F
0.001024125 cuf
340 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-10-Black
2.05"
0.39"
2.44"
689 lbf
0.17 °F
0.000176573 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-10-Red
2.05"
0.39"
2.44"
689 lbf
0.17 °F
0.000176573 cuf
340 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-100-Green
5.71"
3.94"
9.65"
171 lbf
0.17 °F
0.001271328 cuf
110 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-125-Green
6.69"
4.92"
11.61"
171 lbf
0.17 °F
0.001553845 cuf
110 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-16-Red
2.28"
0.63"
2.91"
690 lbf
0.17 °F
0.000247203 cuf
340 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-38.1-Black
3.15"
1.5"
4.65"
695 lbf
0.17 °F
0.00052972 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-50-Yellow
3.62"
1.97"
5.59"
695 lbf
0.17 °F
0.000670979 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-63.5-Black
4.27"
2.5"
6.77"
679 lbf
0.17 °F
0.000847552 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-63.5-Yellow
4.27"
2.5"
6.77"
679 lbf
0.17 °F
0.000847552 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-80-Blue
4.92"
3.15"
8.07"
342 lbf
0.17 °F
0.001024125 cuf
225 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MM2-125-Red
6.57"
4.92"
11.5"
515 lbf
0.17 °F
0.001553845 cuf
340 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MM2-125-Yellow
6.57"
4.92"
11.5"
689 lbf
0.17 °F
0.001553845 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MM2-25-Yellow
2.64"
0.98"
3.62"
692 lbf
0.17 °F
0.000353147 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MM2-38.1-Green
3.15"
1.5"
4.65"
173 lbf
0.17 °F
0.00052972 cuf
110 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MM2-50-Blue
3.62"
1.97"
5.59"
346 lbf
0.17 °F
0.000670979 cuf
225 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MM2-80-Green
4.8"
3.15"
7.95"
171 lbf
0.17 °F
0.001024125 cuf
110 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MM2-80-Yellow
4.8"
3.15"
7.95"
683 lbf
0.17 °F
0.001024125 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MC3-10-Black
2.36"
0.39"
2.76"
688 lbf
0.17 °F
0.000176573 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MC3-10-Blue
2.36"
0.39"
2.76"
344 lbf
0.17 °F
0.000176573 cuf
225 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MC3-10-Green
2.36"
0.39"
2.76"
173 lbf
0.17 °F
0.000176573 cuf
110 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MC3-12.7-Black
2.47"
0.5"
2.97"
690 lbf
0.17 °F
0.000211888 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MC3-125-Red
6.89"
4.92"
11.81"
515 lbf
0.17 °F
0.001553845 cuf
340 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MC3-16-Green
2.6"
0.63"
3.23"
173 lbf
0.17 °F
0.000247203 cuf
110 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MC3-16-Yellow
2.6"
0.63"
3.23"
690 lbf
0.17 °F
0.000247203 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MC3-25-Blue
2.95"
0.98"
3.94"
340 lbf
0.17 °F
0.000353147 cuf
225 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MC3-50-Green
3.94"
1.97"
5.91"
173 lbf
0.17 °F
0.000670979 cuf
110 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MC3-63.5-Blue
4.47"
2.5"
6.97"
342 lbf
0.17 °F
0.000847552 cuf
225 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MC3-80-Black
5.12"
3.15"
8.27"
683 lbf
0.17 °F
0.001024125 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MC3-SP-100-Black
5.91"
3.94"
9.84"
686 lbf
0.17 °F
0.001271328 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MC3-SP-25-Red
2.95"
0.98"
3.94"
519 lbf
0.17 °F
0.000353147 cuf
340 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MC3-SP-38.1-Red
3.47"
1.5"
4.97"
522 lbf
0.17 °F
0.00052972 cuf
340 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MC3-SP-50-Black
3.94"
1.97"
5.91"
695 lbf
0.17 °F
0.000670979 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-100-Black
5.71"
3.94"
9.65"
686 lbf
0.17 °F
0.001271328 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-100-Blue
5.71"
3.94"
9.65"
342 lbf
0.17 °F
0.001271328 cuf
225 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-12.7-Black
2.15"
0.5"
2.65"
690 lbf
0.17 °F
0.000211888 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-12.7-Blue
2.15"
0.5"
2.65"
344 lbf
0.17 °F
0.000211888 cuf
225 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-12.7-Green
2.15"
0.5"
2.65"
173 lbf
0.17 °F
0.000211888 cuf
110 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-12.7-Yellow
2.15"
0.5"
2.65"
690 lbf
0.17 °F
0.000211888 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-125-Blue
6.69"
4.92"
11.61"
344 lbf
0.17 °F
0.001553845 cuf
225 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-125-Yellow
6.69"
4.92"
11.61"
689 lbf
0.17 °F
0.001553845 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-16-Blue
2.28"
0.63"
2.91"
346 lbf
0.17 °F
0.000247203 cuf
225 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-25-Yellow
2.64"
0.98"
3.62"
692 lbf
0.17 °F
0.000353147 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-38.1-Blue
3.15"
1.5"
4.65"
346 lbf
0.17 °F
0.00052972 cuf
225 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-38.1-Red
3.15"
1.5"
4.65"
695 lbf
0.17 °F
0.00052972 cuf
340 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-50-Black
3.62"
1.97"
5.59"
695 lbf
0.17 °F
0.000670979 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-50-Green
3.62"
1.97"
5.59"
173 lbf
0.17 °F
0.000670979 cuf
110 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-50-Red
3.62"
1.97"
5.59"
695 lbf
0.17 °F
0.000670979 cuf
340 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
M2-63.5-Green
4.27"
2.5"
6.77"
171 lbf
0.17 °F
0.000847552 cuf
110 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
MM2-10-Black
2.05"
0.39"
2.44"
689 lbf
0.17 °F
0.000176573 cuf
450 lbf
2610 psi
314.96 ft/min
176 F
362 psi
32 F
~80-100
