To streamline precise configuration and selection, the miniature linear guideway MG series model numbering system adopts a standardized alphanumeric code structure. This modular framework defines key parameters, including series (MGN / MGW), size specifications (5/7/9/12/15), load type (standard/extended), precision grade (C/H/P), preload level (ZF/Z0/Z1), rail length (mm), block material (CM/HM/PM), and optional special processing and protective features. Designed for compact industrial applications, this system ensures compatibility with various automation equipment, precision instruments, and lightweight mechanical systems.
For customized linear guides, please specify the rail length (in 1mm increments).
Note: Each slider can only be used with its corresponding rail.

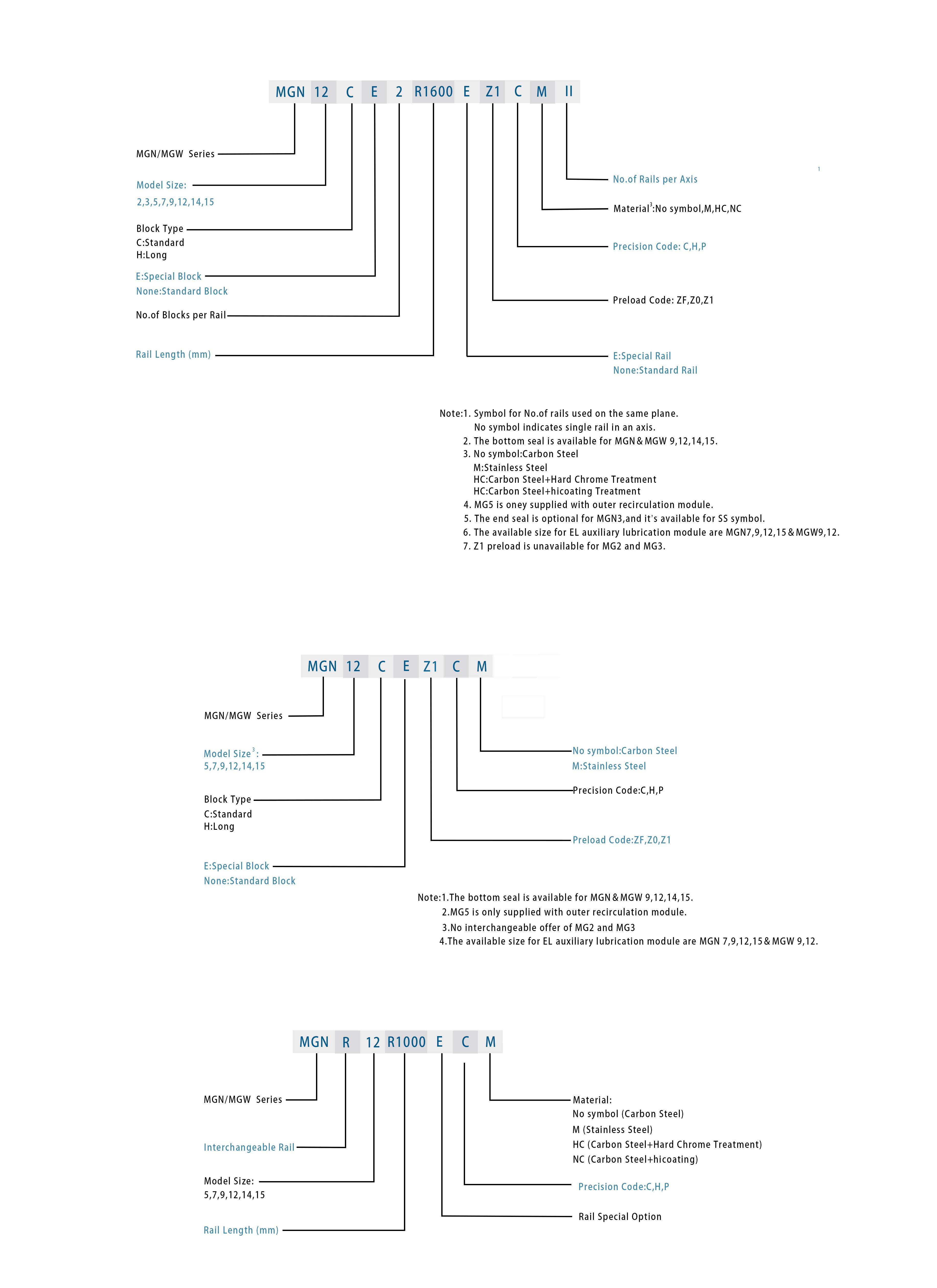

Refer to the diagram below for a detailed breakdown of the model code components:
Miniature Linear Guideway
Part Number
Rail Width (WR)
Rail Height (HR)
Assembly Height (H)
Block Type
Load Type
Block Width (W)
Block Mounting hole Width (B)
Block Length (L)
Rail Length
Pitch (P)
Price
>
Part Number
Rail Width (WR)
Rail Height (HR)
Assembly Height (H)
Block Type
Load Type
Block Width (W)
Block Mounting hole Width (B)
Block Length (L)
Rail Length
Pitch (P)
Price
>
2SRS5GMUU+100LM
5 mm
4 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16.9 mm
100 mm
15 mm
$163.83
2SRS5GMUU+130LM
5 mm
4 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16.9 mm
130 mm
15 mm
$200.60
2SRS5GMUU+160LM
5 mm
4 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16.9 mm
160 mm
15 mm
$265.83
2SRS5GMUU+40LM
5 mm
4 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16.9 mm
40 mm
15 mm
$140.86
2SRS5GMUU+55LM
5 mm
4 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16.9 mm
55 mm
15 mm
$140.86
2SRS5GMUU+70LM
5 mm
4 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16.9 mm
70 mm
15 mm
$140.86
2SRS5GNUU+100LM
5 mm
4 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
20.1 mm
100 mm
15 mm
$182.81
2SRS5GNUU+130LM
5 mm
4 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
20.1 mm
130 mm
15 mm
$212.55
2SRS5GNUU+160LM
5 mm
4 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
20.1 mm
160 mm
15 mm
$265.34
2SRS5GNUU+40LM
5 mm
4 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
20.1 mm
40 mm
15 mm
$145.65
2SRS5GNUU+55LM
5 mm
4 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
20.1 mm
55 mm
15 mm
$151.50
2SRS5GNUU+70LM
5 mm
4 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
20.1 mm
70 mm
15 mm
$158.01
2SRS5MUU+100LM
5 mm
4 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16.9 mm
100 mm
15 mm
$163.83
2SRS5MUU+130LM
5 mm
4 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16.9 mm
130 mm
15 mm
$200.60
2SRS5MUU+160LM
5 mm
4 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16.9 mm
160 mm
15 mm
$265.83
2SRS5MUU+40LM
5 mm
4 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16.9 mm
40 mm
15 mm
$140.86
2SRS5MUU+55LM
5 mm
4 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16.9 mm
55 mm
15 mm
$140.86
2SRS5MUU+70LM
5 mm
4 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16.9 mm
70 mm
15 mm
$140.86
2SRS5NUU+100LM
5 mm
4 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
20.1 mm
100 mm
15 mm
$182.81
2SRS5NUU+130LM
5 mm
4 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
20.1 mm
130 mm
15 mm
$212.55
2SRS5NUU+160LM
5 mm
4 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
20.1 mm
160 mm
15 mm
$265.34
2SRS5NUU+40LM
5 mm
4 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
20.1 mm
40 mm
15 mm
$145.65
2SRS5NUU+55LM
5 mm
4 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
20.1 mm
55 mm
15 mm
$151.50
2SRS5NUU+70LM
5 mm
4 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
20.1 mm
70 mm
15 mm
$158.01
MGN5C1R100Z0CM
5 mm
3.6 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16 mm
100 mm
15 mm
$83.30
MGN5C1R130Z0CM
5 mm
3.6 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16 mm
130 mm
15 mm
$125.30
MGN5C1R160Z0CM
5 mm
3.6 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16 mm
160 mm
15 mm
$125.30
MGN5C1R40Z0CM
5 mm
3.6 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16 mm
40 mm
15 mm
$83.30
MGN5C1R55Z0CM
5 mm
3.6 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16 mm
55 mm
15 mm
$83.30
MGN5C1R70Z0CM
5 mm
3.6 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16 mm
70 mm
15 mm
$83.30
MGN5C2R100Z0CM
5 mm
3.6 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16 mm
100 mm
15 mm
$124.60
MGN5C2R130Z0CM
5 mm
3.6 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16 mm
130 mm
15 mm
$166.60
MGN5C2R160Z0CM
5 mm
3.6 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16 mm
160 mm
15 mm
$166.60
MGN5C2R40Z0CM
5 mm
3.6 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16 mm
40 mm
15 mm
$124.60
MGN5C2R55Z0CM
5 mm
3.6 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16 mm
55 mm
15 mm
$124.60
MGN5C2R70Z0CM
5 mm
3.6 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16 mm
70 mm
15 mm
$124.60
MGN5H1R100Z0CM
5 mm
3.6 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
19 mm
100 mm
15 mm
$83.30
MGN5H1R130Z0CM
5 mm
3.6 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
19 mm
130 mm
15 mm
$125.30
MGN5H1R160Z0CM
5 mm
3.6 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
19 mm
160 mm
15 mm
$125.30
MGN5H1R40Z0CM
5 mm
3.6 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
19 mm
40 mm
15 mm
$83.30
MGN5H1R55Z0CM
5 mm
3.6 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
19 mm
55 mm
15 mm
$83.30
MGN5H1R70Z0CM
5 mm
3.6 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
19 mm
70 mm
15 mm
$83.30
MGN5H2R100Z0CM
5 mm
3.6 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
19 mm
100 mm
15 mm
$124.60
MGN5H2R130Z0CM
5 mm
3.6 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
19 mm
130 mm
15 mm
$166.60
MGN5H2R160Z0CM
5 mm
3.6 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
19 mm
160 mm
15 mm
$166.60
MGN5H2R40Z0CM
5 mm
3.6 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
19 mm
40 mm
15 mm
$124.60
MGN5H2R55Z0CM
5 mm
3.6 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
19 mm
55 mm
15 mm
$124.60
MGN5H2R70Z0CM
5 mm
3.6 mm
6 mm
Square Type
Extended Type
12 mm
8 mm
19 mm
70 mm
15 mm
$124.60
SRS5GMUU+100LM
5 mm
4 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16.9 mm
100 mm
15 mm
$115.36
SRS5GMUU+130LM
5 mm
4 mm
6 mm
Square Type
Standard Type
12 mm
8 mm
16.9 mm
130 mm
15 mm
$152.11
