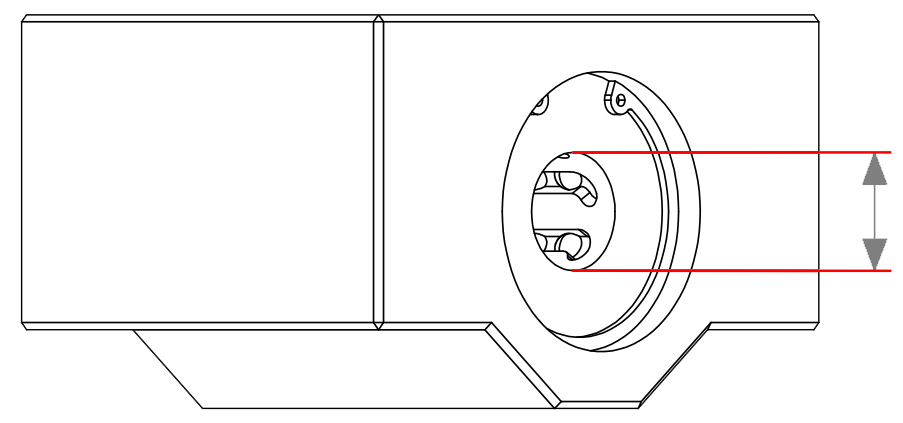

Bore Dia
Overall Length
Overall Width
Overall Height
Center Height
Bearing Type
Alignment Style
Dynamic Radial Load
Static Radial Load
Temperature Range
Common Mounted Linear Ball Bearings
37 Products
Common Mounted Linear Ball Bearings
Choose ball bearings for debris-free environments and when speed is a necessity. They operate with less friction than sleeve bearings, so you can run them at higher speeds.
Part Number
Bore Dia
Overall
Length
Length
Overall
Width
Width
Center
Height
Height
With End
Seals
Seals
Dynamic Radial
Load
Load
Static Radial
Load
Load
Temperature
Range
Range
GCFFKDB
0.25"
1 3/16"
1 5/8"
7/16"
Yes
60 lbs
80 lbs
-4° to 176° F
JDDITEC
0.25"
2 1/2"
1 5/8"
7/16"
Yes
95 lbs
160 lbs
-4° to 176° F
GCFFKDC
0.375"
1 5/16"
1 3/4"
1/2"
Yes
95 lbs
120 lbs
-4° to 176° F
JDDITED
0.375"
2 3/4"
1 3/4"
1/2"
Yes
150 lbs
240 lbs
-4° to 176° F
JDDITB
0.5"
1 11/16"
2"
11/16"
Yes
230 lbs
290 lbs
-4° to 176° F
JDDITH
0.5"
3 1/2"
2"
11/16"
Yes
370 lbs
580 lbs
-4° to 176° F
JDDITC
0.625"
1 15/16"
2 1/2"
7/8"
Yes
400 lbs
500 lbs
-4° to 176° F
JDDITI
0.625"
4"
2 1/2"
7/8"
Yes
640 lbs
1000 lbs
-4° to 176° F
JDDITD
0.75"
2 1/16"
2 3/4"
15/16"
Yes
470 lbs
590 lbs
-4° to 176° F
JDDITJ
0.75"
4 1/2"
2 3/4"
15/16"
Yes
750 lbs
1100 lbs
-4° to 176° F
JDDITBB
1"
6"
3 1/4"
1 3/16"
Yes
1300 lbs
2100 lbs
-4° to 176° F
JDDITE
1"
2 13/16"
3 1/4"
1 3/16"
Yes
850 lbs
1000 lbs
-4° to 176° F
JDDITBC
1.25"
7 1/2"
4"
1 1/2"
Yes
1900 lbs
3000 lbs
-4° to 176° F
JDDITF
1.25"
3 5/8"
4"
1 1/2"
Yes
1200 lbs
1500 lbs
-4° to 176° F
JDDITBD
1.5"
9"
4 3/4"
1 3/4"
Yes
2300 lbs
3700 lbs
-4° to 176° F
JDDITG
1.5"
4"
4 3/4"
1 3/4"
Yes
1400 lbs
1800 lbs
-4° to 176° F
JDDITEB
2"
5"
6"
2 1/8"
Yes
2400 lbs
3000 lbs
-4° to 176° F
JDDITGB
3 mm
13 mm
16 mm
5 mm
Yes
15 lbs
23 lbs
-4° to 176° F
JDDITGD
4 mm
15 mm
17 mm
5.5 mm
Yes
19 lbs
28 lbs
-4° to 176° F
JDDITGF
5 mm
18 mm
22 mm
7 mm
Yes
37 lbs
46 lbs
-4° to 176° F
JDDITGH
6 mm
25 mm
30 mm
9 mm
Yes
46 lbs
55 lbs
-4° to 176° F
JDDITDB
8 mm
58 mm
34 mm
11 mm
Yes
95 lbs
175 lbs
-4° to 176° F
JDDITFB
8 mm
30 mm
34 mm
11 mm
Yes
60 lbs
85 lbs
-4° to 176° F
JDDITDC
10 mm
68 mm
40 mm
13 mm
Yes
130 lbs
245 lbs
-4° to 176° F
JDDITFC
10 mm
35 mm
40 mm
13 mm
Yes
80 lbs
120 lbs
-4° to 176° F
JDDITDD
12 mm
70 mm
42 mm
15 mm
Yes
180 lbs
350 lbs
-4° to 176° F
JDDITFD
12 mm
36 mm
42 mm
15 mm
Yes
110 lbs
175 lbs
-4° to 176° F
JDDITHC
16 mm
44 mm
50 mm
19 mm
Yes
170 lbs
260 lbs
-4° to 176° F
JDDITHD
16 mm
85 mm
50 mm
19 mm
Yes
270 lbs
520 lbs
-4° to 176° F
JDDITDE
20 mm
96 mm
54 mm
21 mm
Yes
310 lbs
615 lbs
-4° to 176° F
JDDITFE
20 mm
50 mm
54 mm
21 mm
Yes
195 lbs
305 lbs
-4° to 176° F
JDDITDF
25 mm
130 mm
76 mm
26 mm
Yes
350 lbs
700 lbs
-4° to 176° F
JDDITFF
25 mm
67 mm
76 mm
26 mm
Yes
220 lbs
350 lbs
-4° to 176° F
JDDITFG
30 mm
72 mm
78 mm
30 mm
Yes
350 lbs
615 lbs
-4° to 176° F
JDDITHF
35 mm
155 mm
90 mm
34 mm
Yes
590 lbs
1400 lbs
-4° to 176° F
JDDITHG
40 mm
90 mm
102 mm
40 mm
Yes
480 lbs
900 lbs
-4° to 176° F
JDDITHI
50 mm
110 mm
122 mm
52 mm
Yes
850 lbs
1750 lbs
-4° to 176° F
