Common Mounted Linear Ball Bearings for Support Rail Shafts
21 Products

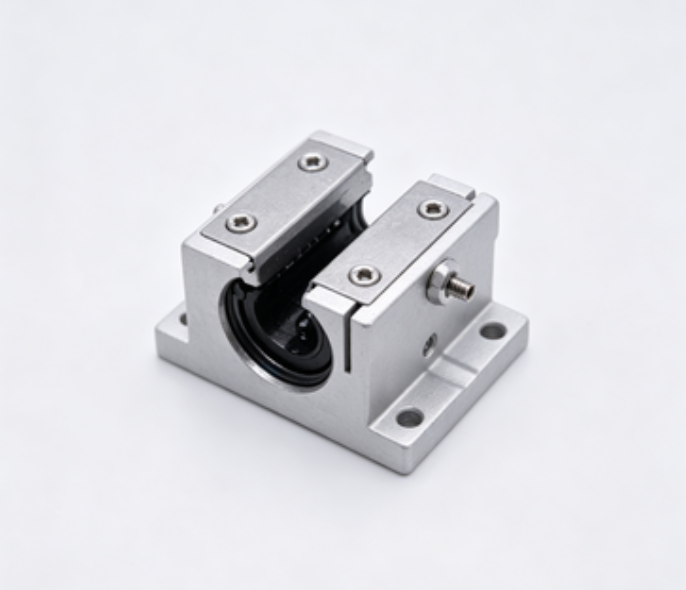

Common Mounted Linear Ball Bearings for Support Rail Shafts
Mount these bearings on a support rail shaft for applications requiring maximum rigidity.
Part Number

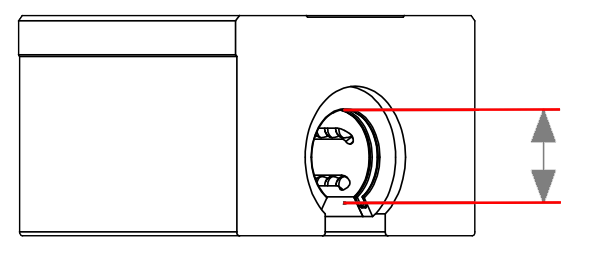

Bore Dia
Overall
Length
Length
Overall
Width
Width
Overall
Height
Height
Center
Height
Height
Width
With End
Seals
Seals
Dynamic Radial
Load
Load
Static Radial
Load
Load
Temperature
Range
Range
9338T14
0.5"
1 1/2"
2",1/4"
1 3/32"
11/16"
2",1/4"
Yes
230 lbs
290 lbs
-4° to 176° F
9338T21
0.5"
3 1/2"
2",1/4"
1 3/32"
11/16"
2",1/4"
Yes
370 lbs
580 lbs
-4° to 176° F
9338T15
0.625"
1 3/4"
2 1/2",5/16"
1 13/32"
7/8"
2 1/2",5/16"
Yes
400 lbs
500 lbs
-4° to 176° F
9338T22
0.625"
4"
2 1/2",5/16"
1 13/32"
7/8"
2 1/2",5/16"
Yes
640 lbs
1000 lbs
-4° to 176° F
9338T16
0.75"
1 7/8"
2 3/4",3/8"
1 17/32"
15/16"
2 3/4",3/8"
Yes
470 lbs
590 lbs
-4° to 176° F
9338T23
0.75"
4 1/2"
2 3/4",3/8"
1 17/32"
15/16"
2 3/4",3/8"
Yes
750 lbs
1100 lbs
-4° to 176° F
9338T17
1"
2 5/8"
3 1/4",1/2"
1 31/32"
1 3/16"
3 1/4",1/2"
Yes
850 lbs
1000 lbs
-4° to 176° F
9338T24
1"
6"
3 1/4",1/2"
1 31/32"
1 3/16"
3 1/4",1/2"
Yes
1300 lbs
2100 lbs
-4° to 176° F
9338T18
1.25"
3 3/8"
4",9/16"
2 31/64"
1 1/2"
4",9/16"
Yes
1200 lbs
1500 lbs
-4° to 176° F
9338T25
1.25"
7 1/2"
4",9/16"
2 15/32"
1 1/2"
4",9/16"
Yes
1900 lbs
3000 lbs
-4° to 176° F
9338T19
1.5"
3 3/4"
4 3/4",11/16"
2 29/32"
1 3/4"
4 3/4",11/16"
Yes
1400 lbs
1800 lbs
-4° to 176° F
9338T26
1.5"
9"
4 3/4",11/16"
2 29/32"
1 3/4"
4 3/4",11/16"
Yes
2300 lbs
3700 lbs
-4° to 176° F
9338T111
12 mm
39 mm
43,6.5 mm
28 mm
18 mm
43,6.5 mm
Yes
225 lbs
290 lbs
-4° to 176° F
9338T118
12 mm
76 mm
43,6.5 mm
28 mm
18 mm
43,6.5 mm
Yes
370 lbs
580 lbs
-4° to 176° F
9338T112
16 mm
43 mm
53,9 mm
35 mm
22 mm
53,9 mm
Yes
280 lbs
340 lbs
-4° to 176° F
9338T119
16 mm
84 mm
53,9 mm
35 mm
22 mm
53,9 mm
Yes
450 lbs
690 lbs
-4° to 176° F
9338T113
20 mm
54 mm
60,9 mm
42 mm
25 mm
60,9 mm
Yes
460 lbs
590 lbs
-4° to 176° F
9338T121
20 mm
104 mm
60,9 mm
42 mm
25 mm
60,9 mm
Yes
760 lbs
1150 lbs
-4° to 176° F
9338T114
25 mm
67 mm
78,11.5 mm
51 mm
30 mm
78,11.5 mm
Yes
840 lbs
1000 lbs
-4° to 176° F
9338T122
25 mm
130 mm
78,11.5 mm
51 mm
30 mm
78,11.5 mm
Yes
1350 lbs
2100 lbs
-4° to 176° F
9338T115
30 mm
79 mm
87,14 mm
60 mm
35 mm
87,14 mm
Yes
1200 lbs
1500 lbs
-4° to 176° F
