B500DD / MB500DD
18 Products
More
Notes:
1. Rings and balls are manufactured from premium quality AISI 52100 chrome steel.
2. Operating temperature range:-65 to +250 °F.
3. All bearings include nonremovable PTFE seals.
4. Bearings are lubricated with MIL-PRF-81322 grease, 80% minimum fill,unless otherwise specified.
5. External surfaces (except bore) are cadmium plated per AMS-QQ-P-416.All dimensions apply after plating.
6. Custom sizes, materials, tolerances,radial internal clearances, lubrication, plating, etc., are available upon request.
7. All dimensions are in inches, unless otherwise specified.
8. B500DD/MB500DD series are dimensionally interchangeable with B500/MB500 series (applies to bore,O.D., and width).

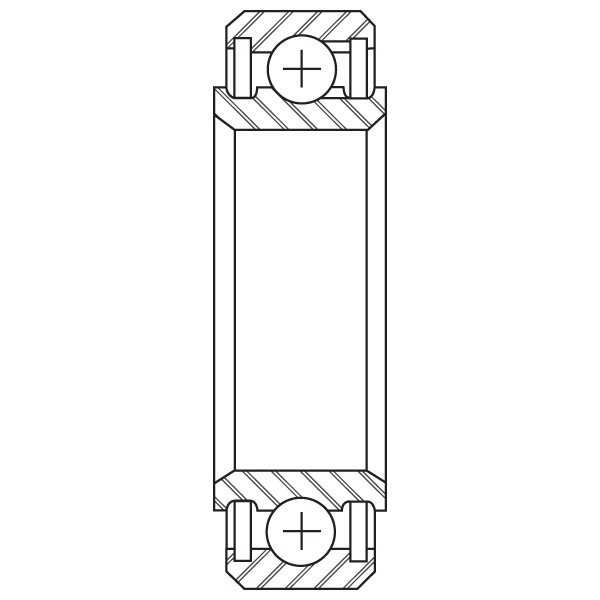

B500DD / MB500DD
Anti-friction, Single Row, Extra Light Duty
Part Number
Standard Reference
Bore Dia
Outer Dia
Ring Width Outer Height
Ring Width Inner Width
Static Radial Load
Static Thrust Load
Dynamic Radial Ring Inner Load
Dynamic Radial Ring Outer Load
Price
>
Part Number
Standard Reference
Bore Dia
Outer Dia
Ring Width Outer Height
Ring Width Inner Width
Static Radial Load
Static Thrust Load
Dynamic Radial Ring Inner Load
Dynamic Radial Ring Outer Load
Price
>
B538DD
MS27646-38
0.625"
1.0625"
0.25"
0.281"
3280 lbf
1500 lbf
1990 lbf
1820 lbf
$82.50
MB538DD
MS21428-38
0.625"
1.0625"
0.25"
0.281"
3280 lbf
1500 lbf
1990 lbf
1820 lbf
$100.00
MB539DD
MS21428-39
0.75"
1.1875"
0.25"
0.281"
3750 lbf
1700 lbf
2050 lbf
1900 lbf
$104.00
B539DD
MS27646-39
0.75"
1.1875"
0.25"
0.281"
3750 lbf
1700 lbf
2050 lbf
1900 lbf
$87.00
MB540DD
MS21428-40
0.875"
1.3125"
0.25"
0.281"
4220 lbf
1900 lbf
2110 lbf
1970 lbf
$117.50
B540DD
MS27646-40
0.875"
1.3125"
0.25"
0.281"
4220 lbf
1900 lbf
2110 lbf
1970 lbf
$93.00
B541DD
MS27646-41
1.0625"
1.5"
0.25"
0.281"
5000 lbf
2200 lbf
2170 lbf
2020 lbf
$103.00
MB541DD
MS21428-41
1.0625"
1.5"
0.25"
0.281"
5000 lbf
2200 lbf
2170 lbf
2020 lbf
$125.50
MB542DD
MS21428-42
1.3125"
1.75"
0.25"
0.281"
5950 lbf
2700 lbf
2220 lbf
2130 lbf
$145.00
B542DD
MS27646-42
1.3125"
1.75"
0.25"
0.281"
5950 lbf
2700 lbf
2220 lbf
2130 lbf
$115.00
MB543DD
MS21428-43
1.5625"
2"
0.25"
0.281"
6880 lbf
3200 lbf
2260 lbf
2180 lbf
$160.00
B543DD
MS27646-43
1.5625"
2"
0.25"
0.281"
6880 lbf
3200 lbf
2260 lbf
2180 lbf
$140.50
MB544DD
MS21428-44
1.8125"
2.25"
0.25"
0.281"
7980 lbf
3600 lbf
2300 lbf
2220 lbf
$192.50
B544DD
MS27646-44
1.8125"
2.25"
0.25"
0.281"
7980 lbf
3600 lbf
2300 lbf
2220 lbf
$168.50
B545DD
MS27646-45
2.0625"
2.625"
0.25"
0.281"
9220 lbf
4000 lbf
2340 lbf
2260 lbf
$214.50
MB545DD
MS21428-45
2.0625"
2.625"
0.25"
0.281"
9220 lbf
4000 lbf
2340 lbf
2260 lbf
$224.00
B546DD
MS27646-46
2.3125"
2.875"
0.25"
0.281"
10150 lbf
4400 lbf
2360 lbf
2280 lbf
$184.00
MB546DD
MS21428-46
2.3125"
2.875"
0.25"
0.281"
10150 lbf
4400 lbf
2360 lbf
2280 lbf
$276.00
