B500 / MB500
18 Products
More
Notes:
1. Rings and balls are manufactured from premium quality AISI 52100 chrome steel.
2. Operating temperature range:-65 to +250 °F.
3. All bearings include nonremovable PTFE seals.
4. Bearings are lubricated with MIL-PRF-81322 grease, 80% minimum fill,unless otherwise specified.
5. External surfaces (except bore) are cadmium plated per AMS-QQ-P-416.All dimensions apply after plating.
6. Custom sizes, materials, tolerances,radial internal clearances, lubrication, plating, etc., are available upon request.
7. All dimensions are in inches, unless otherwise specified.
8. B500DD/MB500DD series are dimensionally interchangeable with B500/MB500 series (applies to bore,O.D., and width).

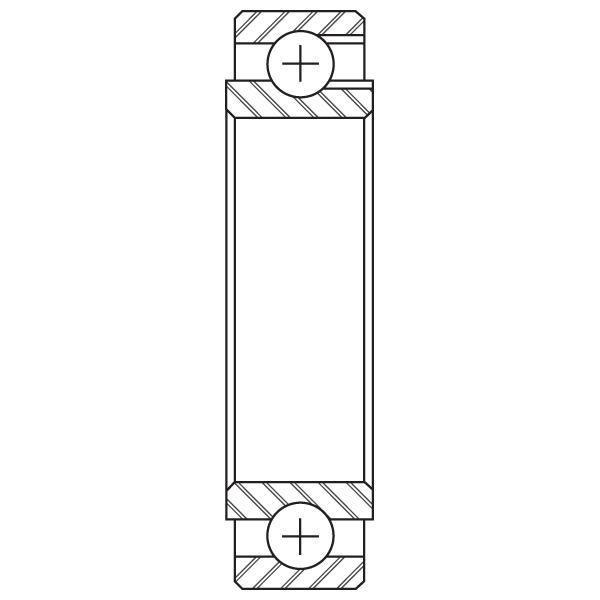

B500 / MB500
Torque Tube, Single Row, Extra Light Duty
Part Number
Bore Dia
Outer Dia
Ring Width Outer Height
Ring Width Inner Width
Static Radial Load
Static Thrust Load
Dynamic Radial Ring Inner Load
Dynamic Radial Ring Outer Load
Price
>
Part Number
Bore Dia
Outer Dia
Ring Width Outer Height
Ring Width Inner Width
Static Radial Load
Static Thrust Load
Dynamic Radial Ring Inner Load
Dynamic Radial Ring Outer Load
Price
>
B538
0.625"
1.0625"
0.25"
0.281"
3280 lbf
1500 lbf
1990 lbf
1820 lbf
$82.50
MB538
0.625"
1.0625"
0.25"
0.281"
3280 lbf
1500 lbf
1990 lbf
1820 lbf
$100.00
MB539
0.75"
1.1875"
0.25"
0.281"
3750 lbf
1700 lbf
2050 lbf
1900 lbf
$104.00
B539
0.75"
1.1875"
0.25"
0.281"
3750 lbf
1700 lbf
2050 lbf
1900 lbf
$87.00
MB540
0.875"
1.3125"
0.25"
0.281"
4220 lbf
1900 lbf
2110 lbf
1970 lbf
$117.50
B540
0.875"
1.3125"
0.25"
0.281"
4220 lbf
1900 lbf
2110 lbf
1970 lbf
$93.00
MB541
1.0625"
1.5"
0.25"
0.281"
5000 lbf
2200 lbf
2170 lbf
2020 lbf
$125.50
B541
1.0625"
1.5"
0.25"
0.281"
5000 lbf
2200 lbf
2170 lbf
2020 lbf
$103.00
MB542
1.3125"
1.75"
0.25"
0.281"
5950 lbf
2700 lbf
2220 lbf
2130 lbf
$145.00
B542
1.3125"
1.75"
0.25"
0.281"
5950 lbf
2700 lbf
2220 lbf
2130 lbf
$115.00
MB543
1.5625"
2"
0.25"
0.281"
6880 lbf
3200 lbf
2260 lbf
2180 lbf
$160.00
B543
1.5625"
2"
0.25"
0.281"
6880 lbf
3200 lbf
2260 lbf
2180 lbf
$140.50
B544
1.8125"
2.25"
0.25"
0.281"
7980 lbf
3600 lbf
2300 lbf
2220 lbf
$168.50
MB544
1.8125"
2.25"
0.25"
0.281"
7980 lbf
3600 lbf
2300 lbf
2220 lbf
$192.50
B545
2.0625"
2.625"
0.25"
0.281"
9220 lbf
4000 lbf
2340 lbf
2260 lbf
$214.50
MB545
2.0625"
2.625"
0.25"
0.281"
9220 lbf
4000 lbf
2340 lbf
2260 lbf
$224.00
B546
2.3125"
2.875"
0.25"
0.281"
10150 lbf
4400 lbf
2360 lbf
2280 lbf
$184.00
MB546
2.3125"
2.875"
0.25"
0.281"
10150 lbf
4400 lbf
2360 lbf
2280 lbf
$276.00
