Kaydon Bearings are renowned for their high precision, durability, and versatility, making them ideal for a wide range of industrial applications. They come in a variety of cross sections and bore sizes to accommodate different design constraints.

Benefits of Kaydon Bearings

Precision and Quality

Kaydon Bearings are made to high standards, ensuring they are precise and reliable. Their top-quality materials and design make them perform well and last long.

Versatility

Kaydon Bearings come in many types and configurations to fit different needs. Whether for aerospace, medical, industrial, or other uses, there's a Kaydon bearing for you.

Reduced Friction and Wear

Kaydon Bearings cut down on friction and wear, helping machines run better and last longer. This means lower maintenance costs and higher reliability.

Space and Weight Efficiency

Thin section bearings like the Constant Section (CS) Bearings offer significant space and weight savings without compromising performance. This makes them ideal for applications where size and weight are critical factors.

Types of Kaydon Bearings

Thin Section Bearings

Constant Section (CS) Bearings

These bearings are perfect for tight spaces. They have a small, square cross-section that ensures excellent running accuracy and reduces friction. Available in many bore sizes, CS bearings are ideal for high-precision, compact applications.

Reali-Slim® Thin Section Ball Bearings

KAYDON's Reali-Slim® bearings are among the thinnest in the industry. They offer excellent running accuracy and reduced friction.

These bearings are ideal for applications where space is at a premium and weight reduction is beneficial.

Slewing Ring Bearings

Four Point Contact Ball Slewing Ring Bearing

Single row ball bearings that are divided into two types: flange and without flange. These bearings are available with internal gear, external gear, or without gear, providing flexibility for various applications. They are designed to handle axial, radial, and moment loads simultaneously.

Reali-Slim TT Turntable Bearings

The TT series range in bore diameters from 1.5" to 6". These bearings use a four-point contact ball bearing design. This allows them to handle radial, axial, and moment loads effectively. They are ideal for applications requiring compact design and high load capacity.

Eight Point Contact Ball Slewing Ring Bearing

Double row ball bearings available with internal gear, external gear, or without gear. These bearings can handle heavy loads and ensure precise positioning. They are ideal for demanding applications across various industries.

Cross Roller Slewing Ring Bearing

Single row roller bearings that include internal gear, external gear, or without gear options. These bearings offer high stiffness and can handle both radial and axial loads, as well as moment loads. They provide reliable performance in a compact design.

Three-Row Cross Roller Slewing Ring Bearing

These bearings feature three rows of roller bearings and are available with internal gear, external gear, or without gear. They are built for applications needing high load capacity and precision. This makes them perfect for heavy-duty machinery and equipment.

Mating Pinions

Mating pinions are available to complement the slewing ring bearings. This ensures a complete and efficient solution for your mechanical systems.

Product Details

Designs and Variants

Kaydon Bearings come in a variety of designs and configurations to meet specific application requirements. Whether you need thin section ball bearings or slewing ring bearings, Kaydon offers a solution tailored to your needs.

General Bearing Specifications

Kaydon Bearings are built to last and work reliably. They come in different materials, shapes, and precision levels to fit various industrial uses.

Loads

Kaydon Bearings are designed to handle various load types, including axial, radial, and moment loads. Understanding the load requirements of your application is crucial for selecting the right bearing.

Temperature Limits

Kaydon Bearings can operate in a wide range of temperatures, making them suitable for different environments. Be sure to choose the right bearing type for your specific temperature needs.

Mounting

Mount Kaydon Bearings properly to ensure they work well and last long. Follow the manufacturer's instructions for best results.

Designation System

Kaydon Bearings use a standardized designation system to simplify the selection process. Understanding the designation codes will help you choose the right bearing for your application.

Selecting the Right KAYDON Bearing

Choosing the right bearing is crucial for optimal performance. KAYDON's engineering team assists in this process. They consider factors like load, speed, and environmental conditions.

Load: Bearings must withstand the forces applied during operation.
Speed: The bearing's rotational speed affects its performance and lifespan.
Environment: Conditions like temperature, humidity, and dirt can impact bearing selection.

Considering Load and Speed

Load and speed are key factors in bearing selection. Bearings must be able to handle the forces applied during operation.

The rotational speed of the bearing also plays a significant role. It affects the bearing's performance and lifespan.

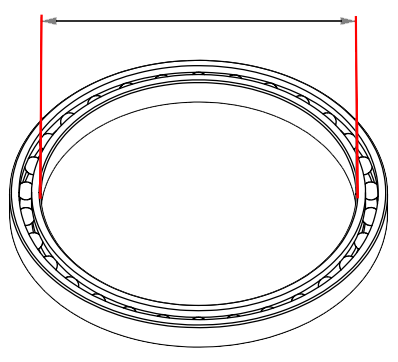

Bore Sizes and Cross Sections

KAYDON bearings come in various bore sizes and cross sections. This variety accommodates different design constraints.

The right bore size and cross section ensure the bearing fits perfectly. It also ensures the bearing performs optimally in its specific application.

Applications of Kaydon Bearings

Kaydon Bearings are used in many industries:

Aerospace: They provide the precision and reliability needed.
Industrial Machinery: They support heavy equipment and precision tools.
Medical Devices: They meet high standards for accuracy and dependability.
Renewable Energy: They work well in wind turbines and other renewable energy uses.
Robotics: They ensure smooth and precise movement in robots.
