ANSI vs ISO Sprockets: A Replacement Guide for Industrial Buyers

ANSI and ISO sprockets follow different roller chain standard systems. For a buyer replacing a worn sprocket or sourcing a custom part, the difference is not just a naming issue. It affects chain fit, machine fit, and the information a supplier needs before quoting.

Replacement mistakes often happen when buyers rely on pitch, visual similarity, or an incomplete part number. A practical replacement process starts with the standard system, then checks the chain, sprocket geometry, shaft interface, application conditions, and documentation needs.

Short answer: ANSI vs ISO sprocket replacement should start by identifying the chain standard and measuring the existing sprocket. Pitch is important, but buyers should also confirm chain size, tooth count, roller dimensions, chain width, sprocket thickness, bore, keyway, hub structure, mounting holes, strand count, and operating conditions before ordering.

LILY Bearing supports ANSI and ISO / metric roller chain sprocket inquiries for replacement and custom projects. Requirements should be reviewed against drawings, samples, photos, markings, measurements, material or treatment expectations, quantity, and operating conditions.

ANSI vs ISO Sprockets: What Buyers Need to Identify First

ANSI sprockets are associated with ANSI / American roller chain standard systems and inch-based references. ISO / metric, BS, and DIN-style sprockets are associated with metric and international roller chain standard systems and numbering conventions.

Common ANSI examples include #40, #50, and #60. Common ISO / BS examples include 08B, 10B, and 12B. Suffixes such as `-1`, `-2`, or `-3` can be used as strand indicators in ISO / BS-style naming contexts.

These references help identify the system family, but they are not a complete replacement decision. The reference number helps identify the system family, but replacement decisions should still be checked against actual chain and sprocket dimensions.

Start with markings and documentation

Before measuring, collect what is already available:

· chain markings;

· sprocket markings;

· equipment manual or OEM documentation;

· old purchase records or part numbers;

· drawings, photos, or samples;

· visible chain size references such as #40, #50, #60, 08B, 10B, or 12B.

If the standard is unclear, say so in the RFQ rather than guessing. A supplier can review photos, measurements, samples, and application context more reliably than a buyer can force an uncertain part into the wrong standard family.

Identification answer: To identify whether a sprocket is ANSI, ISO / metric, BS, DIN, or another system, check chain or sprocket markings, equipment documentation, part numbers, chain size, pitch, roller diameter, chain width, tooth count, drawings, photos, samples, and measurements. If the system is unclear, do not guess from pitch alone.

Why Pitch Alone Is Not Enough for Replacement

Pitch is the distance between chain pins or rollers. It is a required baseline dimension, but it does not confirm sprocket compatibility by itself.

A sprocket can have the expected pitch and still be wrong if the roller diameter, chain width, tooth form, or thickness does not match the chain. ANSI and ISO / BS chains can have similar pitch references while differing in other dimensions that affect how the chain seats on the teeth.

Key compatibility points include:

· roller diameter;

· chain inner width;

· tooth profile;

· sprocket thickness or face width;

· strand count;

· alignment with the chain path;

· operating conditions such as speed, load, shock, and lubrication.

A mismatch may lead to poor engagement, abnormal noise, uneven wear, reduced service life, installation problems, or replacement mismatch. That is why replacement selection should look at the chain and the sprocket as a working pair.

How to Measure an Existing Sprocket Before Ordering

This is the part that usually improves quote quality. If you have an old sprocket, a worn sample, or an unknown machine part, measure and document it before sending an inquiry.

Replacement measurement checklist

Worn sprockets can distort tooth dimensions. If teeth are badly worn, send chain data, equipment information, photos, and a sample when possible. That gives the supplier more context than worn tooth shape alone.

Chain-Fit Checks vs Machine-Fit Checks

A replacement sprocket has to fit the chain and the machine. These are related, but they are not the same check.

This separation is useful for procurement teams. A sprocket may appear correct for the chain but fail at the shaft or mounting interface. The reverse is also possible: the bore and hub may fit the machine, while the tooth profile or chain width does not match the chain.

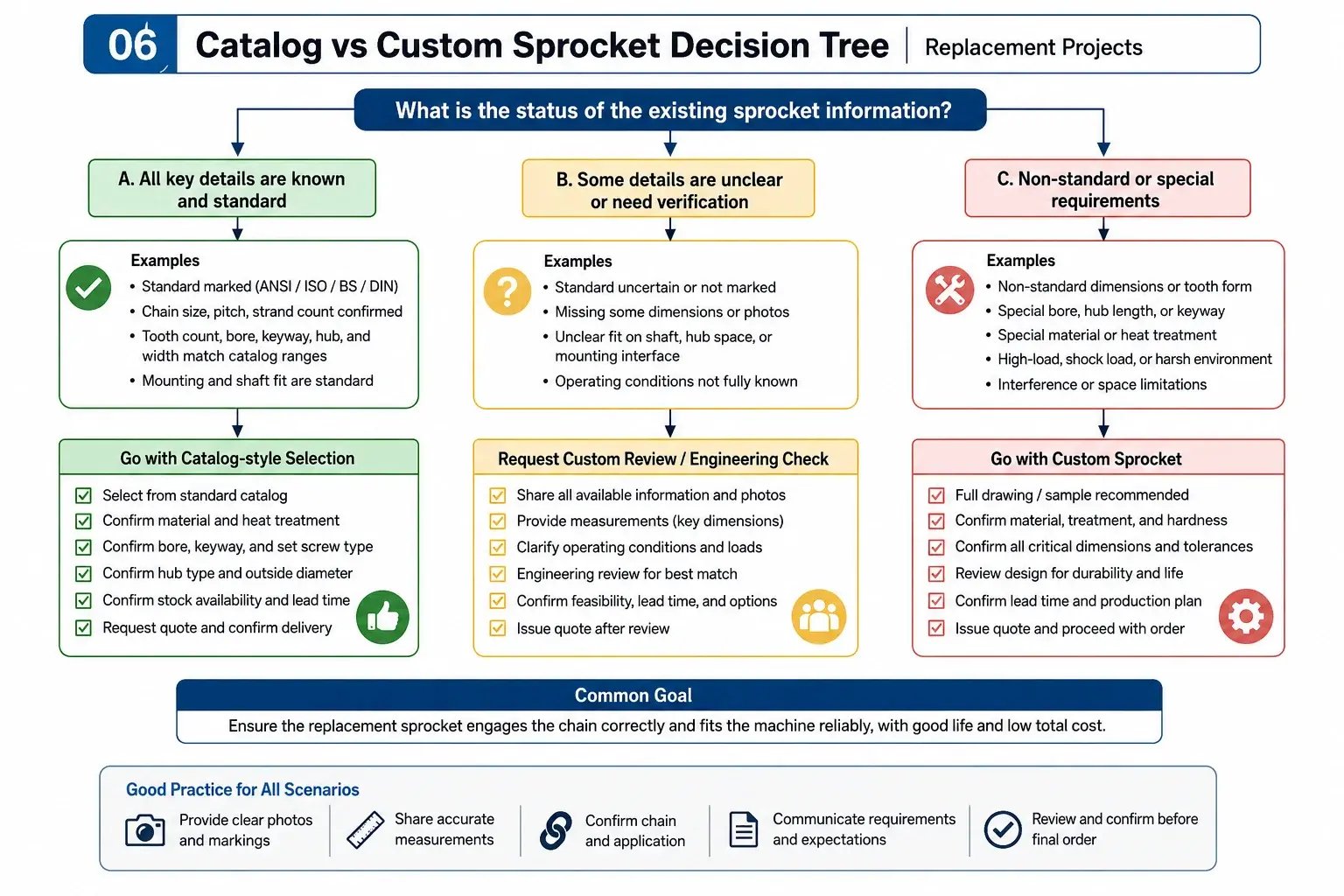

Catalog Sprocket or Custom Sprocket?

Once the standard and measurements are clear, decide whether the project is a catalog-style selection or needs custom review.

A catalog-style sprocket may work when

A catalog-style sprocket may be suitable when the chain standard, chain size, tooth count, bore, keyway, hub structure, mounting details, material, and treatment requirements match available product options.

This path is usually more realistic when:

· the chain standard is known;

· the chain size and tooth count are confirmed;

· the bore, keyway, hub, and mounting details match available options;

· material and treatment needs are standard or simple;

· no drawing-specific geometry is required;

· the buyer can verify dimensions before ordering.

LILY Bearing’s sprocket product data includes ANSI and ISO / metric roller chain sprocket entries, with inch and metric product data available for review. Product data supports buyer discussion around chain standard, chain size, pitch, tooth count, bore type, bore diameter, keyway, hub dimensions, shaft mounting, bushing type, material, strand count, and inch/metric sizing.

Custom review is safer when

Custom sprocket review is useful when a catalog sprocket does not clearly match the chain standard, dimensions, bore/keyway, hub, mounting interface, material, treatment, or operating conditions.

Custom review is often the safer path when:

· the chain standard is unclear;

· ANSI / ISO / BS / DIN references conflict;

· pitch appears to match, but chain width or roller dimensions are uncertain;

· the replacement is based on a worn sample;

· bore, keyway, hub, mounting holes, or bolt pattern do not match catalog options;

· a special tooth profile or special geometry is required;

· material, heat treatment, surface treatment, balancing, or documents are order-specific;

· operating conditions are severe, unusual, or costly to get wrong.

LILY Bearing can produce roller chain sprockets according to ANSI, BS, DIN, and JIS standards, with requirements confirmed for each RFQ. LILY Bearing can review custom sprocket requirements based on drawings, samples, chain size, tooth count, pitch, bore, keyway, mounting holes, hub structure, material/treatment expectations, quantity, and operating conditions.

Catalog vs custom answer: A catalog sprocket may work when the standard, chain size, tooth count, bore, keyway, hub, mounting, material, and treatment needs match available options. Custom review is safer when dimensions are unclear, non-standard, or based on drawings, samples, photos, or special operating conditions.

What to Send for an ANSI, ISO, BS, or DIN Sprocket RFQ

A useful RFQ should reduce assumptions. If your requirement is for an ANSI, ISO / metric, BS, DIN, JIS, or unknown-standard sprocket, send as much of the following as possible:

· chain standard: ANSI, ISO / BS, DIN, JIS, or unknown;

· chain size or visible markings;

· pitch;

· number of teeth;

· roller diameter and chain width if known;

· sprocket thickness or face width;

· bore diameter and bore type;

· keyway details;

· set screw details;

· hub type, hub outside diameter, and length through bore;

· mounting holes, bolt pattern, or bolt circle;

· strand count;

· material expectation;

· heat treatment or surface treatment expectations;

· quantity;

· drawings, photos, samples, markings, or equipment manual;

· operating conditions such as speed, load, shock, lubrication, contamination, temperature, corrosion exposure, and whether the sprocket is drive, driven, or idler.

LILY Bearing supports ANSI and ISO / metric roller chain sprocket inquiries and can review replacement or custom requirements based on drawings, samples, photos, markings, chain size, tooth count, pitch, bore, keyway, mounting holes, hub structure, material/treatment expectations, quantity, and operating conditions.

Quality Documents Buyers Can Specify for Custom Orders

Quality requirements should be discussed before the quote is finalized. They should not be added after the order scope is already assumed.

For custom sprocket orders, buyers may specify quality-document needs such as dimensional reports, material certificates, heat treatment reports, or hardness reports. These requirements should be confirmed during RFQ review.

For replacement and custom sprocket projects, buyers may also discuss inspection points such as tooth profile accuracy, pitch consistency, bore size, keyway position, face runout, and radial runout.

Requirements such as H7/H8 bore tolerance, 40–55 HRC tooth hardness, Ra 1.6 / Ra 3.2 surface roughness, dynamic balancing, or inspection reports can be specified during RFQ review, available upon request when applicable, and should be confirmed for the specific order.

Quality document answer: For custom sprocket orders, buyers may specify dimensional reports, material certificates, heat treatment reports, or hardness reports when required for the order. Requirements should be confirmed during RFQ review.

FAQ

How do I know if my sprocket is ANSI or ISO?

Check chain markings, sprocket markings, equipment documentation, part numbers, chain size, pitch, roller diameter, chain width, tooth count, drawings, photos, samples, and measurements. If the standard is uncertain, include that uncertainty in the RFQ instead of selecting by pitch alone.

Can ANSI and ISO sprockets be used interchangeably?

Do not assume interchangeability. Compatibility depends on chain standard, pitch, roller diameter, chain width, tooth profile, sprocket thickness, bore, keyway, hub, mounting details, strand count, and operating conditions.

Is pitch enough to select a replacement sprocket?

No. Pitch is important, but it is not sufficient. Chain width, roller diameter, tooth profile, sprocket thickness, strand count, bore, keyway, hub, and mounting details should also be reviewed.

What dimensions should I measure on an old sprocket?

Measure tooth count, pitch if possible, outside diameter, sprocket thickness, bore, keyway, hub outside diameter, length through bore, mounting holes, bolt pattern, and strand count. Take clear photos of both sides, the teeth, bore, hub, markings, and mounting face.

When should I choose a custom sprocket instead of a catalog sprocket?

Custom review is useful when the standard is unclear, catalog dimensions do not match, bore/keyway/hub/mounting details are non-standard, or material, treatment, balancing, documentation, or operating conditions are order-specific.

What information should I send for a custom sprocket RFQ?

Send chain standard, chain size, pitch, tooth count, sprocket thickness, bore, keyway, hub details, mounting holes, strand count, material/treatment expectations, quantity, drawings, samples, photos, markings, and operating conditions.

What quality documents can be requested for custom sprockets?

Quality documents may include dimensional reports, material certificates, heat treatment reports, and hardness reports when specified for the order. Other inspection documentation should be discussed during RFQ review.

What if I only have a worn sprocket sample?

Send the sample or clear photos with measurements. Worn teeth may distort dimensions, so chain information, equipment details, markings, and operating conditions help reduce selection risk.

Should chain and sprocket be replaced together?

It is a maintenance consideration worth checking. A worn chain can accelerate sprocket wear, and a worn sprocket can shorten chain life. Review the condition of both components before deciding the replacement scope.

Send Your Replacement Sprocket Details for Review

If you are replacing an ANSI, ISO, BS, DIN, JIS, or unknown-standard sprocket, send drawings, photos, markings, measurements, chain size, tooth count, bore, keyway, hub details, mounting holes, quantity, material/treatment expectations, and operating conditions for review.

If your project requires dimensional reports, material certificates, heat treatment reports, hardness reports, or other inspection documentation, specify those requirements in the RFQ. If you are not sure which standard the existing system uses, include chain markings, equipment documentation, measurements, and clear photos so the requirement can be reviewed before quoting.
