For OEM buyers, a useful roller chain sprocket quote starts with clear project information. A roller chain sprocket manufacturer needs more than a general request for a sprocket. The RFQ should define the chain standard, chain size, pitch, tooth count, bore, keyway, hub structure, mounting details, material expectations, treatment requirements, quantity, operating conditions, and quality-document needs.
This guide is written for U.S. industrial buyers, OEM machinery builders, procurement teams, and engineers preparing a sprocket RFQ. It focuses on how to make the inquiry clear enough for manufacturing review without relying on broad or unsupported claims.
What OEM Buyers Need from a Roller Chain Sprocket Manufacturer
An OEM-focused roller chain sprocket manufacturer should be able to review the sprocket as part of the complete chain drive system. That means looking at the chain standard, tooth geometry, bore and shaft interface, hub structure, material, treatment, load, speed, operating environment, and inspection expectations.
For standard projects, the buyer may already know the chain size and sprocket type. For custom or replacement projects, the manufacturer may need drawings, samples, photos, field measurements, or equipment context before confirming what can be produced.
LILY Bearing supports industrial sprocket and power transmission component projects for OEM machinery builders and industrial buyers. Project discussions may include standard and custom roller chain sprockets for equipment such as conveyors, packaging machinery, agricultural machinery, mining equipment, construction machinery, food processing equipment, automated production lines, and OEM machinery.
**Answer block:** OEM buyers should prepare drawings or samples, chain standard, chain size, pitch, tooth count, strand count, bore, keyway, hub structure, mounting holes, material expectations, treatment requirements, quantity, operating conditions, and quality-document requirements before requesting a custom sprocket quote.
Key Sprocket Details to Define Before Requesting a Quote
A complete RFQ reduces back-and-forth and helps the manufacturer review feasibility, manufacturing route, material selection, machining needs, and documentation expectations.
Chain standard, chain size, pitch, and tooth count
Start with the chain standard if known. LILY Bearing can produce roller chain sprockets according to common standards such as ANSI, BS, DIN, and JIS, with project details confirmed during RFQ review. Product data includes both inch and metric entries, which can be useful for buyers working with ANSI chain sizes as well as ISO / metric chain requirements.
Buyers should provide:
chain standard or chain series
chain size or trade size
pitch
number of teeth
strand count: single, double, or multi-strand
sprocket type if already known
Do not assume that a similar tooth count or pitch is enough. For OEM equipment, small specification differences can affect chain fit, wear, and assembly clearance.
Bore, keyway, hub, and mounting details

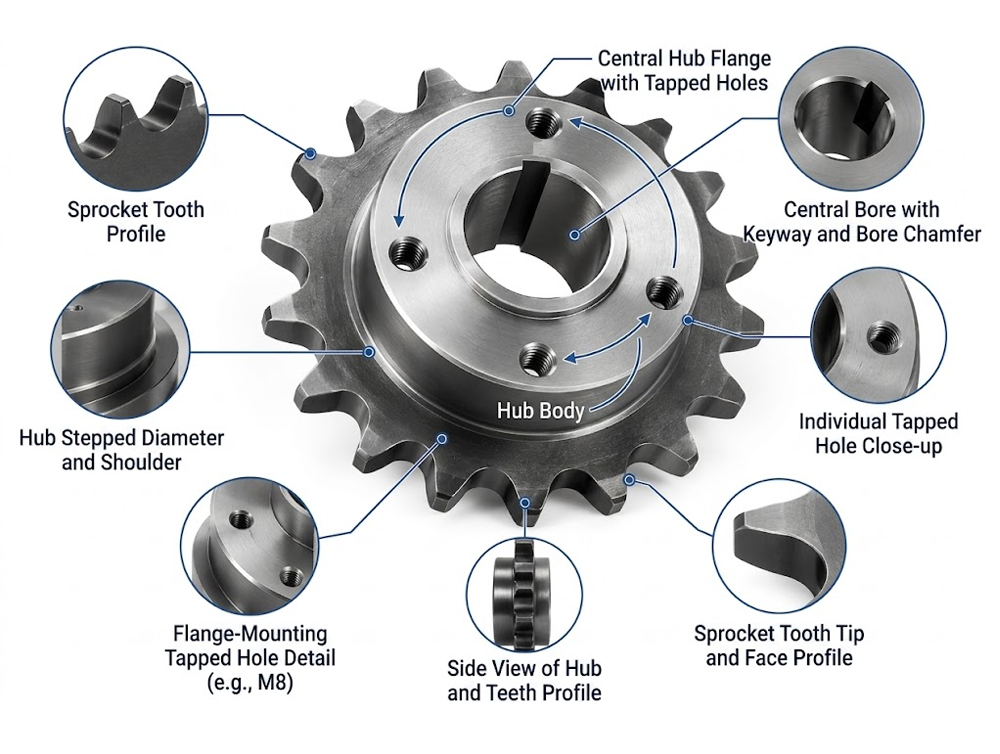

The shaft interface is often where a quote becomes unclear. Include bore diameter, finished bore or machinable bore requirements, keyway size and position, hub dimensions, set screw requirements, mounting holes, and any bushing or locking structure.
Custom machining options may include finished bore, keyway, set screw holes, hub modification, lightening holes, mounting holes, spline bore, taper bore, and counterbore, depending on the drawing and project requirements.
If bore tolerance, keyway tolerance, surface roughness, or mounting-face requirements matter, specify them in the drawing or RFQ. Requirements such as H7 / H8 bore tolerances, DIN 6885 / ANSI B17.1 keyway references, Ra 1.6 / Ra 3.2 surface roughness, or dynamic balancing should be treated as project-specific items to confirm during review.
Material, treatment, and operating environment
Material selection should be tied to the application. Load, speed, wear, corrosion exposure, temperature, lubrication, washdown, shock load, and cost expectations can all affect the discussion.
Material discussions may include C45 / 1045 / S45C medium carbon steel, 40Cr / 5140 alloy steel, 42CrMo / 4140 alloy steel, 20CrMnTi / 8620 carburizing steel, 304 / 316 stainless steel, cast iron / ductile iron, and nylon / POM / UHMW-PE engineering plastics, depending on project requirements.
Heat treatment options may include quenching and tempering, tooth induction hardening, carburizing, or nitriding depending on the material, load, wear requirement, and drawing specification. Surface treatments may include black oxide, phosphating, zinc or nickel plating, painting, powder coating, or stainless passivation, depending on the operating environment and project requirements.
These should be specified or confirmed before quoting. They should not be assumed unless the project requirement has been reviewed.
Sprocket Types and Configurations LILY Bearing Can Discuss
OEM sprocket projects may involve catalog-style requirements, custom machining, or made-to-spec designs. The sprocket range can be discussed in terms of standard and custom roller chain sprockets, including:
standard sprockets
idler sprockets
single-strand, double-strand, and multi-strand sprockets
plate / flat sprockets
hub sprockets
finished-bore and machinable-bore sprockets
QD bushing sprockets / quick-disconnect bushing-bore sprockets
taper bushing / taper-lock style sprockets
split-tapered bushing sprockets
stainless steel sprockets
corrosion-resistant or wear-resistant sprockets
engineering chain sprockets
large-pitch and conveyor chain sprockets
special tooth-profile sprockets
Project-specific requirements should be confirmed during RFQ review. The goal is to match the chain standard, equipment interface, operating conditions, and manufacturing route rather than assume that one sprocket type fits every application.

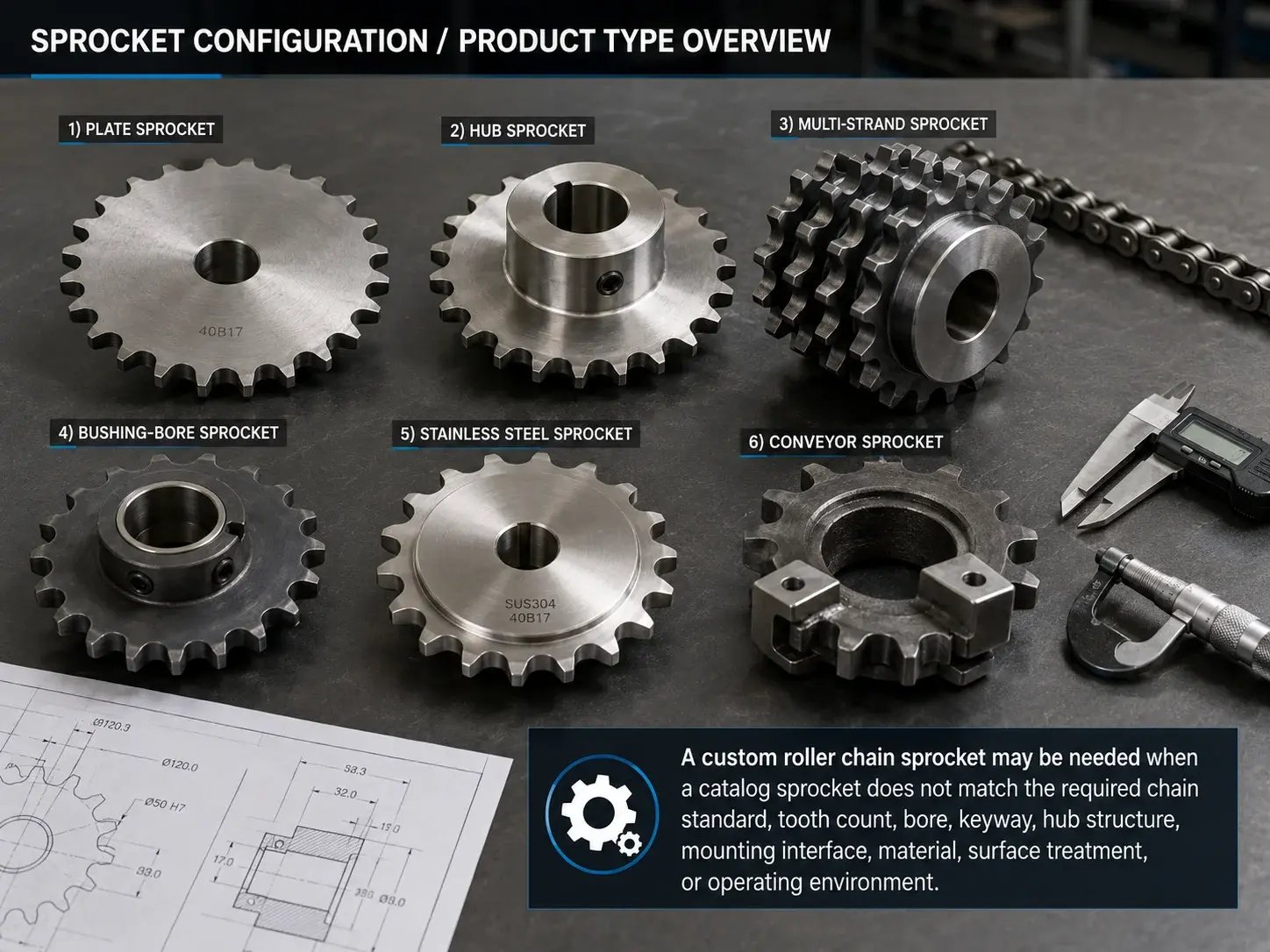

**Answer block:** A custom roller chain sprocket may be needed when a catalog sprocket does not match the required chain standard, tooth count, bore, keyway, hub structure, mounting interface, material, surface treatment, or operating environment.
Manufacturing and Custom Machining Capabilities
Manufacturing and secondary machining may include CNC turning, hobbing, shaping, milling, wire EDM for special tooth forms, bore/keyway/threaded-hole/set-screw/mounting-hole machining, tooth chamfering, deburring, edge treatment, cleaning, rust prevention, packaging, and export labeling.
For high-speed sprockets, dynamic balancing can be specified depending on project requirements and should be confirmed against the drawing, speed, application conditions, and manufacturing route.
The actual process depends on the sprocket type, material, dimensions, quantity, tooth profile, bore and hub structure, and inspection requirements. For replacement projects, a sample or clear drawing can help identify details that may not be obvious from a part number alone.
Quality Control and Documents OEM Buyers May Request
For OEM projects, quality expectations should be discussed early. Quality control for sprocket projects may focus on tooth profile accuracy, pitch consistency, bore size, keyway position, face runout, and radial runout so the sprocket can mesh properly with the chain and fit the OEM assembly.
Depending on project requirements, buyers may request dimensional reports, material certificates, heat treatment reports, or hardness reports during the RFQ stage. These documents should be specified before quoting rather than assumed by default.
Hardness targets such as 40–55 HRC, surface roughness requirements such as Ra 1.6 / Ra 3.2, and specific bore or keyway tolerance references can be specified when relevant, but they should be confirmed against the material, treatment, drawing, and application requirements.
How to Send a Clear Custom Sprocket RFQ
A strong RFQ gives the manufacturer enough information to review the part without guessing. Include as much of the following as possible:
·drawing or sample photos
·chain standard: ANSI, BS, DIN, JIS, or ISO / metric if known
·chain size and pitch
·number of teeth
·strand count
·sprocket type
·bore diameter and tolerance if specified
·keyway size and position
·hub structure and hub dimensions
·set screw, threaded hole, mounting hole, spline, taper bore, or counterbore requirements
·material expectation
·heat treatment or surface treatment preference
·application and operating conditions
·load, speed, duty cycle, environment, corrosion or wear exposure if relevant
·quantity and project stage: prototype, replacement, production, or OEM assembly
·quality documents required
·packaging or export labeling requirements if relevant
If a requirement is unknown, say so. It is better to mark a detail as unknown than to leave the manufacturer to infer it from an incomplete part number.
FAQ
What information is needed to quote a custom roller chain sprocket?
OEM buyers should send drawings or samples, chain standard, chain size, pitch, tooth count, strand count, bore, keyway, hub structure, mounting details, material requirements, quantity, operating conditions, and documentation needs.
How do you measure a sprocket chain?
To measure a sprocket chain, you need to identify the chain size by checking several key dimensions:
Chain Pitch
Measure the distance between the centers of two consecutive chain pins.
This is the most important measurement for matching a chain with a sprocket.
Roller Diameter
Measure the outside diameter of the chain roller.
The sprocket tooth profile must match the roller size.
Inner Width
Measure the distance between the inner plates of the chain.
This determines whether the chain properly fits the sprocket teeth.
Common chain sizes include:
ANSI #25, #35, #40, #50, #60
ISO 04B, 06B, 08B, 10B, 12B
What is sprocket pitch?
Sprocket pitch is the distance between the centers of two adjacent sprocket teeth, which corresponds to the pitch of the chain that the sprocket is designed to drive.
In chain drive systems, the sprocket pitch must match the chain pitch to ensure proper engagement and smooth power transmission.
For example:
ANSI #40 chain → 1/2 inch pitch
ANSI #50 chain → 5/8 inch pitch
ANSI #60 chain → 3/4 inch pitch
A mismatched pitch can cause poor engagement, vibration, accelerated wear, and possible chain failure.
How do you measure a sprocket?
Number of Teeth (T)
Count the total number of teeth around the sprocket.
Pitch
Identify the chain pitch that matches the sprocket.
Outside Diameter (OD)
Measure the diameter from the top of one tooth to the opposite tooth tip.
Bore Size
Measure the diameter of the center hole where the shaft fits.
Keyway and Hub Dimensions
Check the keyway size, hub diameter, and overall width.
Sprocket Type
Identify whether it is:
Type A (flat sprocket)
Type B (single hub)
Type C (double hub)
Custom design
How do you determine chain size from a sprocket?
You can determine the correct chain size by measuring the sprocket and identifying its standard.
The main steps are:
Measure sprocket pitch
Match the sprocket pitch to the chain pitch.
Check tooth profile
The sprocket teeth must match the chain roller diameter and width.
Count the teeth
Tooth count does not determine chain size, but it helps identify the sprocket specification.
Check manufacturer markings
Many industrial sprockets are marked with chain numbers such as:
#40
#50
#60
08B
10B
For accurate replacement or custom manufacturing, provide:
Sprocket drawing or model number
Number of teeth
Bore diameter
Keyway dimensions
Chain standard and size
Can LILY Bearing manufacture sprockets from drawings or samples?
LILY Bearing can discuss custom sprocket projects based on drawings, samples, chain size, tooth count, pitch, bore, keyway, mounting holes, hub structure, quantity, and operating conditions. The details should be reviewed before quoting.
Which chain standards can be supported?
LILY Bearing can produce roller chain sprockets according to common chain standards such as ANSI, BS, DIN, and JIS, with project requirements confirmed during RFQ review. Product data also includes inch and metric entries.
What materials are available for roller chain sprockets?
Material discussions may include carbon steel, alloy steel, stainless steel, cast iron / ductile iron, and engineering plastics, depending on load, speed, wear, corrosion exposure, cost requirements, and the drawing specification.
Can bore, keyway, hub, and mounting holes be customized?
Yes, custom machining options may include finished bore, keyway, set screw holes, hub modification, mounting holes, spline bore, taper bore, and counterbore, depending on the drawing and project requirements.
What quality documents can OEM buyers request?
Project documentation may include dimensional reports, material certificates, heat treatment reports, or hardness reports when specified during the RFQ stage. These documents should be requested before quoting.
Can heat treatment or surface treatment be specified?
Yes. Heat treatment and surface treatment options can be specified depending on material, load, wear, corrosion exposure, operating environment, and project requirements.
What should buyers avoid when sending a sprocket RFQ?
Avoid sending only a general part description without chain size, pitch, tooth count, bore, keyway, hub, material, quantity, and operating conditions. Also avoid assuming documents, tolerances, hardness, balancing, or treatments are included unless specified and confirmed.
Final CTA
Send your drawing or sample, chain size, pitch, tooth count, bore/keyway details, hub and mounting requirements, material or treatment expectations, quantity, operating conditions, and document requirements for review. LILY Bearing can review the information and discuss a suitable roller chain sprocket manufacturing approach for your OEM project.
