Choosing the right crossed roller bearing starts with the application, not the catalog page.
Buyers should define load direction, radial load, axial load, moment load, mounting space, rigidity, accuracy, preload or clearance, starting torque, speed, duty cycle, environment, and required inspection documents before requesting a quote.
A crossed roller bearing may be suitable where compact structure, rigidity, and combined-load support are required.
Final selection should still be reviewed against drawings, operating conditions, mounting design, and order requirements.
To choose the right crossed roller bearing, confirm these items first:
equipment type and bearing position;
radial, axial, and moment load conditions;
speed, duty cycle, and motion profile;
mounting space, shaft/housing interface, and installation constraints;
rigidity, rotational accuracy, runout, preload, clearance, and starting torque expectations;
lubrication, sealing, temperature, contamination, corrosion, or cleanliness concerns;
standard series fit versus custom review;
inspection reports, certificates, traceability, or other quality-document needs.
These inputs help a supplier decide whether a standard crossed roller bearing can be reviewed or whether a custom crossed roller bearing discussion is needed.
If the project involves a replacement bearing, a sample, existing part number, photos, and machine position can also help prevent wrong assumptions.
Start by identifying where the bearing works in the machine.
Crossed roller bearings are often discussed for precision rotary applications such as robot joints, reducer output ends, CNC rotary tables, precision indexing tables, medical imaging equipment, optical or semiconductor inspection equipment, automated rotary platforms, robotic arms, and high-precision measuring equipment.
The same bearing size may perform differently depending on whether it supports a rotary table, robot axis, reducer output, inspection stage, or compact positioning mechanism. The surrounding structure matters.
Crossed roller bearing selection should include load direction.
Buyers should define radial load, axial load, and moment load if those values are available.
Moment load is especially important because crossed roller bearings are often considered where compact assemblies must support combined loads.
If exact load values are not ready, provide the machine function, expected workpiece weight, offset distance, motion pattern, and duty cycle.
This gives engineering reviewers a better starting point than dimensions alone.
Speed and duty cycle affect bearing choice, lubrication, heat, and service expectations.
A slow indexing table, an intermittent robot joint, and a continuously rotating axis may have different requirements.
Also define the environment: lubrication method, sealing needs, temperature, contamination, corrosion exposure, cleanliness, and maintenance access.
These conditions should be discussed before quotation rather than treated as after-order details.
Crossed roller bearing structures may include split outer ring / integrated inner ring, split inner ring / integrated outer ring, integrated high-rigidity designs, thin-section types, mounting-hole types, rotary-table types, robot-joint types, and non-standard custom types.
The right structure depends on which ring rotates, how the bearing is mounted, where bolts or locating features are needed, and how the surrounding parts support the bearing.
A crossed roller bearing can be sensitive to the accuracy and rigidity of the shaft, housing, mounting shoulder, and adjacent components.
Poor mounting surfaces or weak surrounding structure can reduce the value of a precision bearing.
Before selection, confirm bore, outside diameter, width, mounting hole needs, shaft/housing dimensions, installation method, and available space.
If the envelope is fixed by an existing machine, include drawings or a sample for review.
Common crossed roller bearing series references may include RU, RB, RE, RA, CRBH, CRBF, and SX.
These can be useful RFQ starting points, but they should not be treated as proof that every size, preload, material, seal, or documentation package is available.
A standard option may be enough when dimensions, mounting, and performance requirements match available designs.
Non-standard dimensions, mounting holes, special materials, sealing needs, or inspection criteria may require custom review subject to technical or factory confirmation.
Crossed roller bearings are often considered where rigidity and controlled rotary motion matter.
This can apply to rotary tables, robot joints, inspection equipment, reducer output ends, and compact precision assemblies.
Rigidity is not only a bearing feature.
It also depends on preload or clearance, mounting design, housing stiffness, shaft or table accuracy, installation quality, and operating conditions.
Preload and clearance can affect rigidity, rotational feel, heat, and starting torque.
If the application is sensitive to motion quality, positioning, or smooth rotation, these requirements should be discussed before RFQ.
Do not assume a preload or clearance condition from the series name alone.
The needed condition should be tied to the drawing, application, and acceptance criteria.
Runout, rotational accuracy, and starting torque should be translated into inspection or acceptance requirements when they are important.
Avoid unsupported assumptions about exact accuracy grades, tolerance values, torque values, or performance in the final machine.
If the buyer has internal inspection standards, they should be shared during RFQ or before order confirmation.
A standard crossed roller bearing may be suitable when the required dimensions, structure, mounting interface, material, preload or clearance, and inspection needs match an available option.
If the project also involves choosing between bearing types, see crossed roller bearings vs ball bearings for a comparison of when each type may fit.

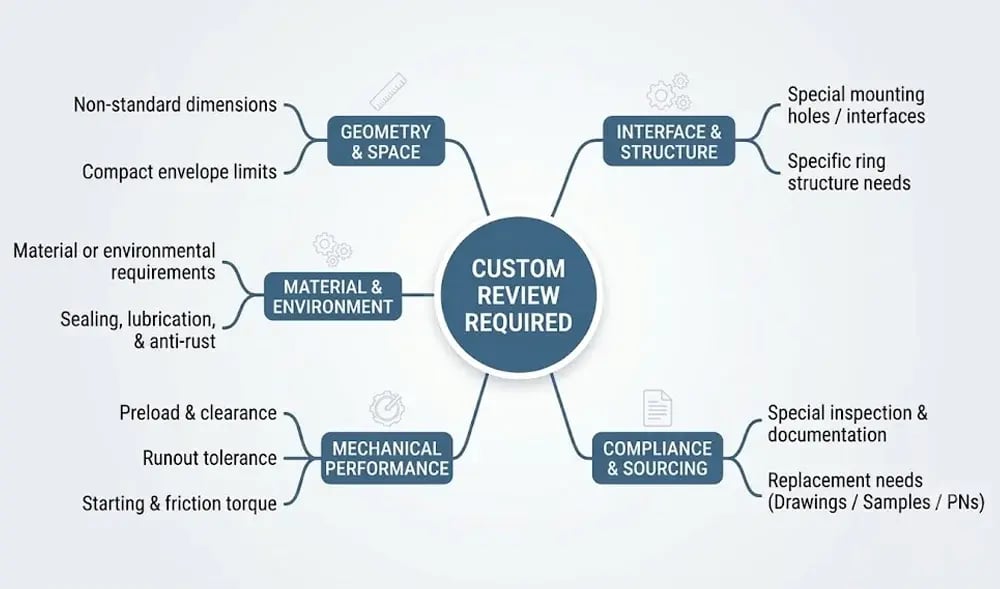

Custom review may be needed when the application has:
non-standard dimensions or compact envelope limits;
special mounting holes or mounting interfaces;
specific ring structure needs;
material or environment requirements;
sealing, lubrication, or anti-rust requirements;
preload, clearance, runout, starting torque, or friction torque concerns;
special inspection or documentation requirements;
replacement needs based on drawings, samples, or existing part numbers.
LILY can review drawings, samples, target part numbers, and application conditions to discuss standard or custom crossed roller bearing options.
Feasibility, material options, lead time, MOQ, price, precision grade, and documentation scope remain project-specific and subject to technical or factory confirmation.
LILY / the related factory has crossed roller bearing R&D, manufacturing, and custom processing capability.
For crossed roller bearings, confirmed manufacturing capability includes material procurement, turning, heat treatment, grinding, assembly inspection, anti-rust packaging, and outgoing inspection.
Project-specific control points may include raceway grinding, roller sorting and matching, preload control, rotational accuracy inspection, clearance inspection, and starting torque inspection, depending on drawing and application requirements.
Relevant equipment terms may include CNC lathes, precision grinders, inner and outer cylindrical grinders, face grinders, raceway grinding equipment, and assembly inspection equipment.
Buyers should still confirm manufacturability for the exact bearing. Do not rely on general capability statements for final approval.
Non-standard dimensions, materials, coatings, seals, inspection standards, commercial terms, and document packages must be reviewed for the specific model and order.
Quality documents may be available depending on product, order requirements, and factory confirmation.
Define documentation needs during RFQ or before order confirmation, not after production.
Documents may include:
dimensional inspection report;
material certificate or material proof;
heat treatment report;
hardness inspection report;
clearance inspection record;
preload inspection record;
rotational accuracy or runout record, if required;
starting torque or friction torque inspection record, if relevant;
appearance inspection;
packaging inspection report;
outgoing inspection report;
traceability records, if required and confirmed.
LILY Bearing operates with company-level quality system certifications such as ISO 9001, AS9100, and IATF 16949 where applicable.
For a crossed roller bearing order, buyers should confirm certification scope, document availability, and order-specific quality requirements during RFQ review.
Use this checklist when preparing a crossed roller bearing RFQ:
drawings, samples, existing bearing model, or target series;
equipment type and application;
bearing position and mounting interface;
radial, axial, and moment load conditions, if available;
speed, duty cycle, and motion profile;
rigidity, accuracy, runout, preload/clearance, and starting torque expectations;
mounting space, shaft/housing dimensions, and installation constraints;
environment, lubrication, sealing, temperature, contamination, corrosion, or cleanliness concerns;
material or special treatment requirements;
quantity, sample stage, pilot stage, or production stage;
requested approval timeline, subject to confirmation;
inspection reports, certificates, traceability, or other quality-document requirements.
A complete RFQ helps the supplier identify missing data early and reduces the risk of selecting by bore, outside diameter, and width alone.
Bore, outside diameter, and width are not enough. A crossed roller bearing must also match load direction, mounting structure, rigidity, speed, preload/clearance, and inspection requirements.
Moment load and mounting stiffness can strongly affect crossed roller bearing performance. The bearing, shaft, housing, fasteners, and adjacent parts should be considered as a system.
Preload, clearance, starting torque, and friction torque should be discussed before quotation when they affect motion quality or machine acceptance.
A known series reference is only a starting point. Mounting holes, ring structure, material, seals, and inspection requirements may still require technical review.
Quality documents should be defined during RFQ. If inspection reports, certificates, or traceability records are needed for approval, state them before order confirmation.
Lead time, inventory, precision grade, load rating, speed rating, MOQ, price, and document package should be confirmed for the specific model and order.
LILY Bearing supplies precision rolling bearings and related components.
Product scope includes ball bearings, needle roller bearings, tapered roller bearings, slewing bearings, custom bearings, fasteners, seals, and gears.
For crossed roller bearing inquiries, LILY supports bearing selection and custom-design discussions based on application requirements.
LILY can review drawings, samples, target part numbers, and application conditions to discuss standard or custom crossed roller bearing options, subject to technical or factory confirmation.
Application discussions may include robot joints, reducer output ends, CNC rotary tables, precision indexing tables, medical imaging equipment, optical or semiconductor inspection equipment, automated rotary platforms, robotic arms, and high-precision measuring equipment, depending on the design requirements.
Choose the right crossed roller bearing by confirming load direction, radial load, axial load, moment load, mounting space, rigidity, accuracy, preload or clearance, starting torque, speed, duty cycle, environment, and inspection-document requirements. Final selection should be reviewed against drawings and application conditions.
Buyers should provide drawings, samples or existing part numbers, application conditions, load and speed data, mounting constraints, accuracy expectations, preload or clearance requirements, quantity, and quality-document requirements. If exact data is not available, provide the machine function and current problem.
Radial load, axial load, and moment load should be considered. Moment load is especially important in compact rotary assemblies, but the final selection depends on actual load conditions and mounting design.
Preload and clearance affect rigidity, rotational feel, torque, and application performance. They should be discussed before quotation when the application is sensitive to precision, smooth motion, or starting torque.
Custom review may be needed when standard dimensions, mounting interfaces, ring structure, materials, seals, preload/clearance, torque, or inspection requirements do not match the application. Feasibility and commercial terms remain project-specific.
Yes. LILY can review drawings, samples, target part numbers, and application conditions to discuss standard or custom crossed roller bearing options, subject to technical or factory confirmation.
Quality documents may include dimensional inspection reports, material certificates, heat treatment or hardness records, clearance/preload records, rotational accuracy/runout records, starting torque records, outgoing inspection, packaging records, and traceability records depending on product and order requirements.
A crossed roller bearing RFQ should include drawings, samples or part numbers, equipment type, bearing position, load direction, load and speed data, mounting space, accuracy needs, quantity, requested approval timeline, and required quality documents.
If you are choosing a crossed roller bearing for an OEM project, replacement, or precision rotary assembly, send drawings, samples, existing part numbers, application conditions, load/speed data, mounting constraints, quantity, and required inspection documents for review.
LILY can discuss standard or custom crossed roller bearing options based on submitted technical requirements.
Final selection, feasibility, material options, lead time, MOQ, price, precision grade, and documentation scope should be confirmed for the specific model and order.
