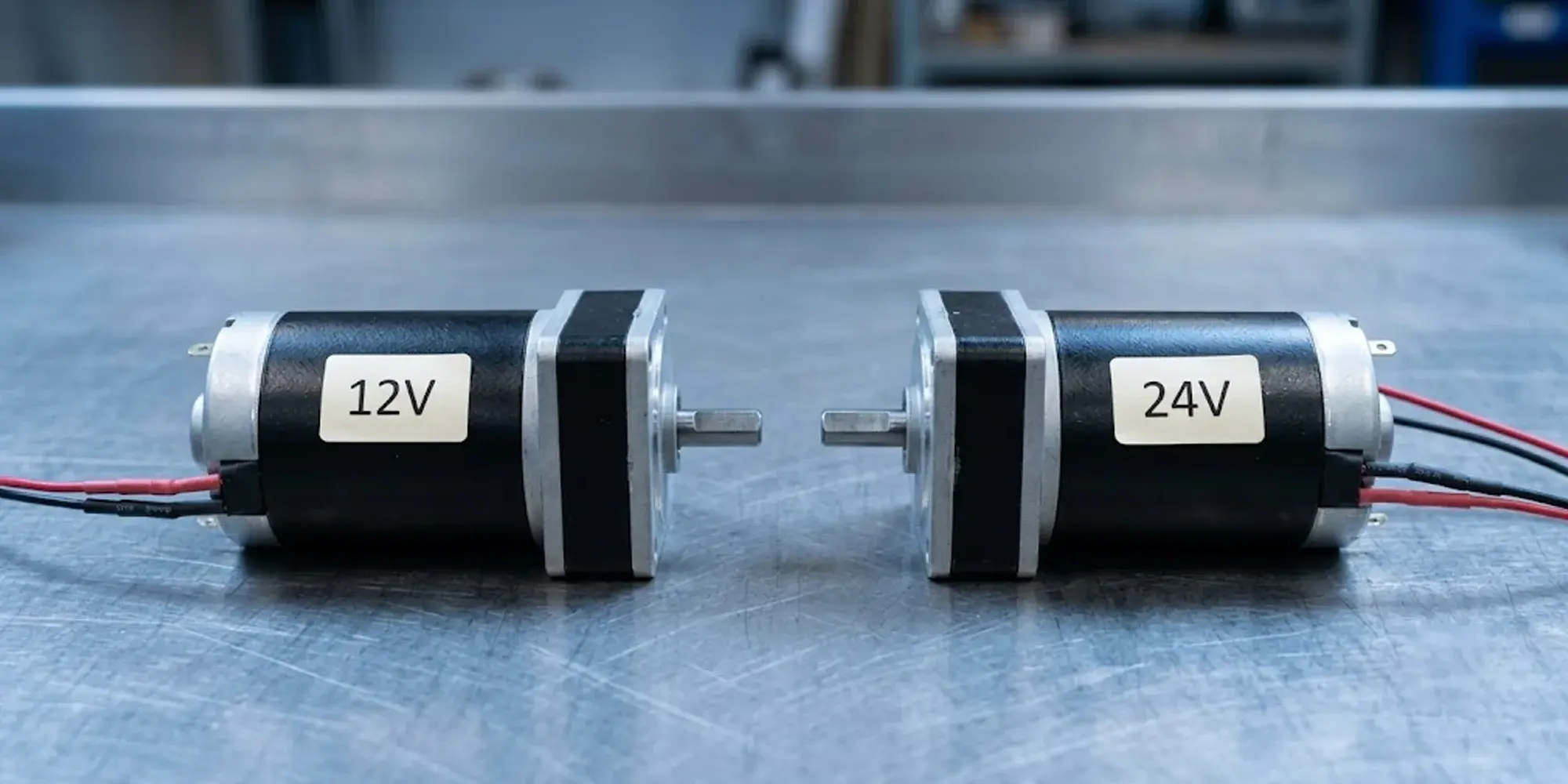

Voltage selection determines more than just compatibility with your power supply. It shapes wire gauge, heat buildup, motor efficiency, available torque, and long-term reliability. For DC gear motors, the 12V vs 24V decision is one of the most practically consequential choices in drive system design — and the right answer depends entirely on your application context.
12V works best in compact, battery-powered, or automotive systems under roughly 150W where low-voltage infrastructure already exists. 24V is the better choice for continuous-duty industrial, robotic, and higher-power applications where wire losses and heat management matter — typically above 100W or cable runs beyond 2 meters.
This guide breaks down the real engineering differences, runs the numbers on current draw and power loss, and maps each voltage to the application types where it genuinely outperforms the other.
If you need a DC gear motor for your project, understanding these tradeoffs will save you time and rework later.
Both voltages deliver power through the same fundamental relationship:
P = V × I
To deliver 100 watts, a 12V motor draws 8.3 amps, while the 24V equivalent draws only 4.2 amps.
That 2× difference in current has cascading effects throughout your entire system — wire sizing, connector selection, switching losses, and thermal behavior all scale with current, not voltage.
Ohm's Law governs line losses: P_loss = I² × R.
Because current is squared, halving the current cuts wire losses by 75%.
A 3-meter run of 20 AWG wire (~0.068 Ω/m total round-trip) dissipates about 1.2W at 4.2A (24V system) versus 4.7W at 8.3A (12V system) — nearly 4× more heat in the same wire.
The table below compares current draw for three common power levels, assuming 85% motor efficiency — a realistic value for quality brushed DC gear motors in the 50–200W range.
| Voltage | Power Level | Current Draw | Note |
|---|---|---|---|
| 12V | 50W | 4.9A | |
| 24V | 50W | 2.5A | ½ current |
| 12V | 100W | 9.8A | |
| 24V | 100W | 4.9A | ½ current |
| 12V | 200W | 19.6A | |
| 24V | 200W | 9.8A | ½ current |
At 200W, a 12V motor needs wire rated for ~20A vs ~10A for 24V — a significant difference in wire cost and connector size.
| Parameter | 12V | 24V |
|---|---|---|
| Rated Voltage | 12V DC | 24V DC |
| Current (100W) | ~9.8A | ~4.9A ½ current |
| Wire Size (100W) | 16 AWG min. | 20 AWG OK |
| Line Loss (3m, 100W) | ~4.7W | ~1.2W 75% less |
| Brush Wear Rate | Higher | Lower |
| Typical Application | Automotive, hobby | Industrial, AGV |
| Battery Bank (Lead-Acid) | Single 12V SLA | Two 12V in series |
| Motor Controller Cost | Lower | Slightly higher |
| Safety (IEC 61140) | Extra Low Voltage | Extra Low Voltage |
Winding temperature is the primary determinant of DC motor lifespan.
According to Arrhenius degradation models used in IEC 60034-18, every 10°C rise in insulation temperature roughly halves the expected insulation life.
Higher current directly means more resistive heating in the windings (P = I²R again), so a 12V motor running at 10A will generate four times the winding heat of a 24V motor drawing 5A for the same output — assuming identical winding resistance.
In practice, manufacturers wind 12V and 24V versions of the same gear motor frame differently.
A 24V winding uses more turns of thinner wire, distributing the lower current across higher winding resistance to achieve the same torque constant.
The net thermal outcome is comparable for matched designs, but at high ambient temperatures (above 40°C) or in enclosed enclosures, the lower current draw of 24V systems provides meaningful thermal margin.
Torque in a DC motor is proportional to current, not voltage: T = Kt × I, where Kt is the torque constant.
For matched motor designs running at the same power level, output torque will be essentially identical regardless of voltage.
The confusion arises because a 24V motor can draw more peak current before hitting its thermal limit, enabling higher intermittent torque.
However, for most standard gearmotor applications, voltage selection does not produce a meaningful difference in sustained output torque — gear ratio selection is far more impactful.

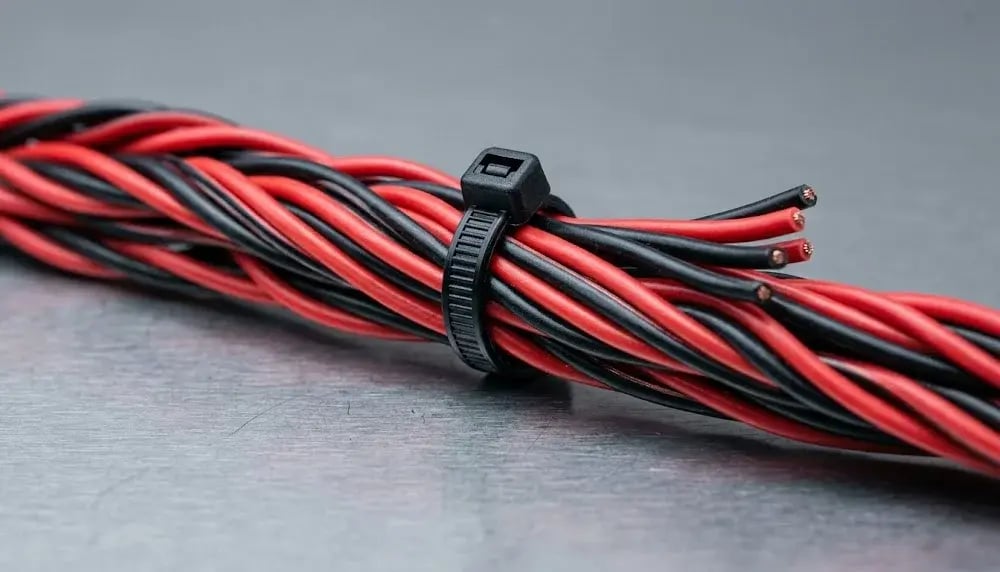

| Cable Run | 12V Loss | 24V Loss | Drop (12V) | Drop (24V) |
|---|---|---|---|---|
| 1 meter | 1.6W | 0.4W | 1.3% | 0.3% |
| 3 meters | 4.7W | 1.2W | 3.9% | 1.0% |
| 5 meters | 7.8W | 2.0W | 6.5% | 1.6% |
| 10 meters | 15.7W | 3.9W | 13.1% | 3.3% |
20 AWG (0.52 mm²) wire resistance ≈ 0.034 Ω/m per conductor; round-trip = 0.068 Ω/m. A voltage drop above 5% degrades motor performance and controller stability.
For cable runs beyond 5 meters, 12V systems typically require an upgrade to 14 or 12 AWG wire to keep voltage drop under 5%.
24V systems comfortably handle the same runs in 20 AWG (0.52 mm²) — roughly a 2.5:1 difference in wire cross-section for the same voltage drop percentage.
|
Choose 12V when…
→ Running from a standard automotive or SLA battery
→ Motor power is under 100W and cable runs are short
→ Integrating into existing 12V vehicle electrical systems
→ Cost of motor controller is a primary constraint
→ DIY, prototyping, or hobbyist applications
→ Benchtop testing with commodity-grade gear motors
|
Choose 24V when…
→ Power exceeds 150W or cable runs exceed 3–5 meters
→ Operating temperature is above 35°C ambient
→ Multiple motors share a common bus (AGV, conveyor)
→ CNC machines, industrial automation, or BLDC servo systems
→ Long-duty cycles demand lower heat accumulation
→ Lithium battery packs sized for 24V nominal are specified
|
PWM motor drivers are widely available for both voltage levels, but the component landscape differs.
Below roughly 150W, the 12V market is saturated with low-cost drivers — the L298N dual H-bridge handles up to 2A continuous per channel at 12V for under $2.
For 24V systems above 10A, quality MOSFET-based drivers start around $15–$40 for reliable industrial-grade performance.
Most modern robot controllers (ROS-based platforms, PLCs) natively support 24V logic and power buses, making 24V the de facto standard for serious automation work.
Speed control quality is identical for both voltage levels when using proper PWM.
However, at the low end of the duty cycle, a 24V system reaches its minimum controllable speed more smoothly — reducing velocity ripple and improving speed stability at the low end of the controllable range.
If you're also weighing motor type alongside voltage, our guide on brushless vs brushed DC gear motors covers the efficiency and maintenance tradeoffs in detail.
Neither voltage is universally superior — each is optimal for a specific set of constraints.
You can, but the motor will run at roughly 50% of its rated speed and produce approximately 50% of rated torque — since both speed and torque scale with voltage in a DC motor. Efficiency also drops, and stall protection may not function correctly if the controller is calibrated for 24V. For temporary testing this is acceptable; as a permanent operating condition it shortens motor life and voids most manufacturer warranties.
Not intrinsically. A 24V motor running at its rated voltage produces the same output power as a 12V motor of equivalent design running at its rated voltage — assuming both are wound to the same power spec. The 24V motor achieves that power at half the current, which is where the system-level benefits come from. Motor frame size and gear ratio determine usable torque and speed far more than voltage selection alone.
Wire sizing follows current, not voltage. For a 100W load on a 3-meter cable run: 12V requires 16 AWG (1.31 mm²) to stay under a 5% voltage drop, while 24V can use 20 AWG (0.52 mm²). The American Wire Gauge standard (ASTM B258-18) should govern selection, with NEC Article 430 applying to motor branch circuits in fixed installations. Always derate wire by 20–30% for continuous motor loads.
Both 12V and 24V fall within the Extra Low Voltage (ELV) range as defined by IEC 61140 (below 50V AC RMS / 120V ripple-free DC). Under normal dry conditions this range presents significantly reduced shock risk. Protective measures per IEC 60364-4-41 apply in wet or conductive environments regardless of voltage level.
For the motor itself, the price difference is negligible — typically 0–5% variation for the same frame and gear ratio in different voltage windings from the same manufacturer. The system cost difference usually favors 24V at higher power levels: thinner wire, smaller connectors, and less heat management hardware offset any minor premium on the motor controller side.
References: IEC 61140 (extra-low voltage classification), IEC 60034-18 (rotating machines — insulation system evaluation), ASTM B258-18 (AWG wire gauge standard), NEC Article 430 (motor branch circuits and controllers).
Robert : Jun 11, 2026 2:42:11 AM

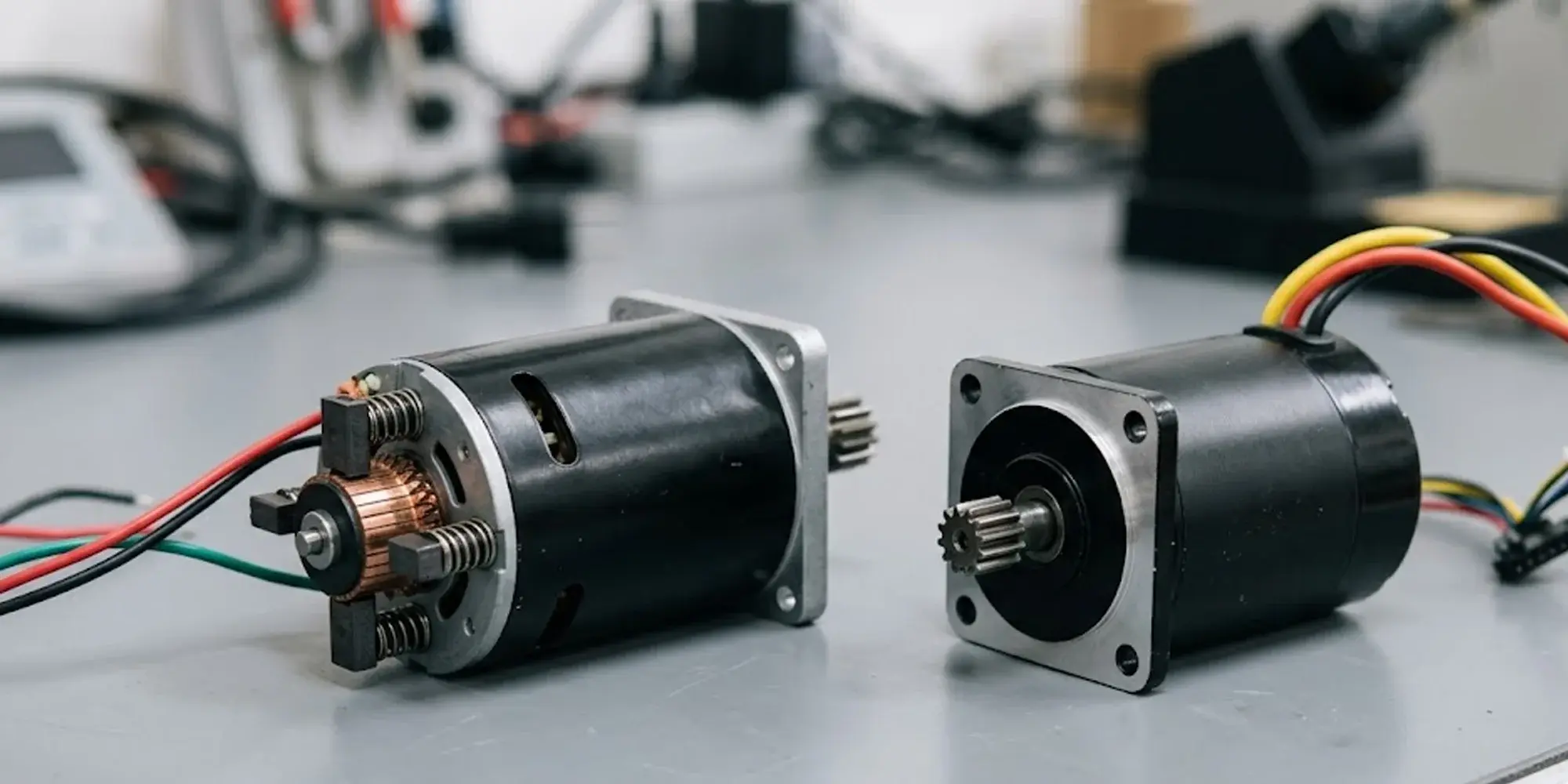

The choice between brushed and brushless DC gear motors shapes maintenance schedules, total cost of ownership, acoustic environment, and the...
