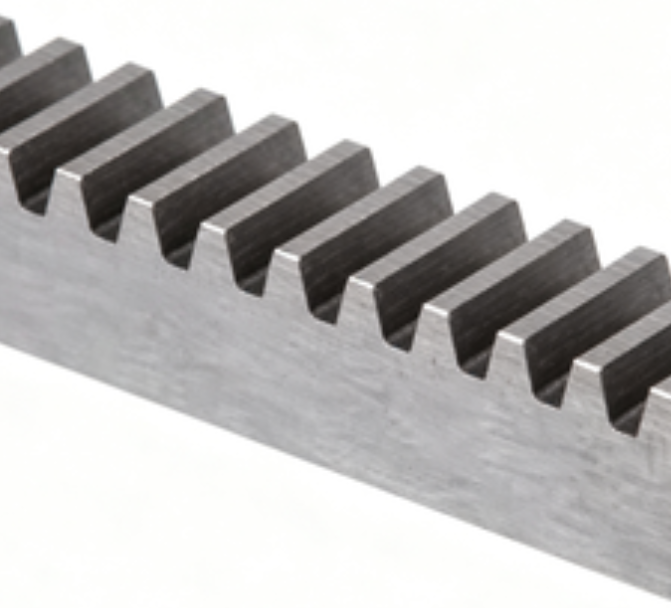

Standard-Zahnstange
155 Produkte
Standard-Zahnstange
Verfügen über Linearverzahnung, präzise Bewegungssteuerung und effiziente Kraftübertragung zur Umwandlung von Dreh- in Linearbewegung.
Teilenummer
Werkstoff
Gesamtdicke
Länge
Stirnbreite
Pitch Line Backing
Teilkreisdurchmesser
Druckwinkel
Lagerlänge
Lagerbreite
Lagerhöhe
Gewicht in lb (CA.)
>
Teilenummer
Werkstoff
Gesamtdicke
Länge
Stirnbreite
Pitch Line Backing
Teilkreisdurchmesser
Druckwinkel
Lagerlänge
Lagerbreite
Lagerhöhe
Gewicht in lb (CA.)
>
TR4X6 20PA 2X1-1/2X6 RACK
Stahl
1.5"
72"
2"
1.25"
4"
20 °
6"
2"
1.5"
52.2 lbs
RA12X4 14-1/2PA 3/4X3/4X4 RACK
Stahl
0.75"
48"
0.75"
0.667"
12"
14.5 °
4"
0.75"
0.75"
6.8 lbs
TR12X2 20PA 3/4X3/4X2 RACK
Stahl
0.75"
24"
0.75"
0.667"
12"
20 °
2"
0.75"
0.75"
3.4 lbs
R2020X4 20PA 1/2X1/2X4 RACK
Stahl
0.5"
48"
0.5"
0.45"
20"
20 °
4"
0.5"
0.5"
1.6 lbs
RA5X6 14-1/2PA 1-3/4X1-1/2X6
Stahl
1.5"
72"
1.75"
1.3"
5"
14.5 °
6"
1.75"
1.5"
48 lbs
R2012X6 20PA 1X1X6 RACK
Stahl
1"
72"
1"
0.917"
12"
20 °
6"
1"
1"
19.2 lbs
RA6X6 14-1/2PA 1-1/2X1-1/2X6
Stahl
1.5"
72"
1.5"
1.333"
6"
14.5 °
6"
1.5"
1.5"
41.4 lbs
TR20X6 20PA 3/8X3/8X6 RACK
Stahl
0.375"
72"
0.375"
0.325"
20"
20 °
6"
0.375"
0.375"
2.52 lbs
TR12X4 20PA 3/4X3/4X4 RACK
Stahl
0.75"
48"
0.75"
0.667"
12"
20 °
4"
0.75"
0.75"
6.8 lbs
TR3X6 20PA 3X1-1/2X6 RACK
Stahl
1.5"
72"
3"
1.167"
3"
20 °
6"
3"
1.5"
72 lbs
R6X4 14-1/2PA 1-1/2X1X4 RACK
Stahl
1"
48"
1.5"
0.833"
6"
14.5 °
4"
1.5"
1"
17.2 lbs
R12X6 14-1/2PA 3/4X1/2X6 RACK
Stahl
0.5"
72"
0.75"
0.417"
12"
14.5 °
6"
0.75"
0.5"
6 lbs
R8X4 14-1/2PA 1-1/4X3/4X4
Stahl
0.75"
48"
1.25"
0.625"
8"
14.5 °
4"
1.25"
0.75"
10.4 lbs
TR3X4 20PA 3X1-1/2X4 RACK
Stahl
1.5"
48"
3"
1.167"
3"
20 °
4"
3"
1.5"
48 lbs
R208X2 20PA 1-1/2X1-1/2X2 RACK
Stahl
1.5"
24"
1.5"
1.375"
8"
20 °
2"
1.5"
1.5"
13.8 lbs
TR16X2 20PA 1/2X1/2X2 RACK
Stahl
0.5"
24"
0.5"
0.438"
16"
20 °
2"
0.5"
0.5"
1.52 lbs
R12X2 14-1/2PA 3/4X1/2X2 RACK
Stahl
0.5"
24"
0.75"
0.417"
12"
14.5 °
2"
0.75"
0.5"
2 lbs
L522-6
Stahl
1.25"
6"
1.75"
1.05"
-
14.5 °
-
-
-
-
L524-4
Stahl
1.5"
4"
3"
1.167"
-
14.5 °
-
-
-
-
L2010-6
Stahl
1.25"
6"
1.25"
1.15"
-
20 °
-
-
-
-
L522-4
Stahl
1.25"
4"
1.75"
1.05"
-
14.5 °
-
-
-
-
L518-6
Stahl
0.75"
6"
1.25"
0.625"
-
14.5 °
-
-
-
-
L501-2
Stahl
0.125"
2"
0.125"
0.104"
-
14.5 °
-
-
-
-
L521-6
Stahl
1.5"
6"
1.5"
1.333"
-
14.5 °
-
-
-
-
L204-6
Stahl
2"
6"
3.5"
1.75"
-
20 °
-
-
-
-
L503-2
Stahl
0.188"
2"
0.188"
0.156"
-
14.5 °
-
-
-
-
L512-6
Stahl
0.5"
6"
0.5"
0.438"
-
14.5 °
-
-
-
-
L514-6
Stahl
0.5"
6"
0.5"
0.417"
-
14.5 °
-
-
-
-
L2016-4
Stahl
0.75"
4"
0.5"
0.688"
-
20 °
-
-
-
-
L510-4
Stahl
0.313"
4"
0.313"
0.25"
-
14.5 °
-
-
-
-
R2012X2 20PA 1X1X2 RACK
Stahl
1"
24"
1"
0.917"
12"
20 °
2"
1"
1"
6.4 lbs
TR16X4 20PA 1/2X1/2X4 RACK
Stahl
0.5"
48"
0.5"
0.438"
16"
20 °
4"
0.5"
0.5"
3.04 lbs
RA4X6 14-1/2PA 2X2X6 RACK
Stahl
2"
72"
2"
1.75"
4"
14.5 °
6"
2"
2"
70.8 lbs
R2016X6 20PA 3/4X3/4X6 RACK
Stahl
0.75"
72"
0.75"
0.688"
16"
20 °
6"
0.75"
0.75"
10.2 lbs
TR4X4 20PA 2X1-1/2X4 RACK
Stahl
1.5"
48"
2"
1.25"
4"
20 °
4"
2"
1.5"
34.8 lbs
TR6X4 20PA 1-1/2X1-1/2X4 RACK
Stahl
1.5"
48"
1.5"
1.333"
6"
20 °
4"
1.5"
1.5"
27.6 lbs
R3X4 14-1/2PA 3X1-1/2X4 RACK
Stahl
1.5"
48"
3"
1.167"
3"
14.5 °
4"
3"
1.5"
48 lbs
R3X6 14-1/2PA 3X1-1/2X6 RACK
Stahl
1.5"
72"
3"
1.167"
3"
14.5 °
6"
3"
1.5"
72 lbs
R12X4 14-1/2PA 3/4X1/2X4 RACK
Stahl
0.5"
48"
0.75"
0.417"
12"
14.5 °
4"
0.75"
0.5"
4 lbs
R24X2 14-1/2PA 1/4X1/4X2 RACK
Stahl
0.25"
24"
0.25"
0.208"
24"
14.5 °
2"
0.25"
0.25"
0.38 lbs
RA6X4 14-1/2PA 1-1/2X1-1/2X4
Stahl
1.5"
48"
1.5"
1.333"
6"
14.5 °
4"
1.5"
1.5"
27.6 lbs
TR6X6 20PA 1-1/2X1-1/2X6 RACK
Stahl
1.5"
72"
1.5"
1.333"
6"
20 °
6"
1.5"
1.5"
41.4 lbs
R4X6 14-1/2PA 2X1-1/2X6 RACK
Stahl
1.5"
72"
2"
1.25"
4"
14.5 °
6"
2"
1.5"
52.2 lbs
R16X6 14-1/2PA 5/16X5/16X6
Stahl
0.313"
72"
0.313"
0.25"
16"
14.5 °
0"
0.313"
0.313"
1.5 lbs
R10X6 14-1/2PA 1X5/8X6 RACK
Stahl
0.625"
72"
1"
0.525"
10"
14.5 °
6"
1"
0.625"
10.8 lbs
R2020X2 20PA 1/2X1/2X2 RACK
Stahl
0.5"
24"
0.5"
0.45"
20"
20 °
2"
0.5"
0.5"
0.8 lbs
RA8X6 14-1/2PA 1-1/4X1-1/4X6
Stahl
1.25"
72"
1.25"
1.125"
8"
14.5 °
6"
1.25"
1.25"
29.4 lbs
TR20X2 20PA 3/8X3/8X2 RACK
Stahl
0.375"
24"
0.375"
0.325"
20"
20 °
2"
0.375"
0.375"
0.84 lbs
R8X6 14-1/2PA 1-1/4X3/4X6
Stahl
0.75"
72"
1.25"
0.625"
8"
14.5 °
6"
1.25"
0.75"
15.6 lbs
R205X2 20PA 2-1/2X1-1/2X2 RACK
Stahl
1.5"
24"
2.5"
1.3"
5"
20 °
2"
2.5"
1.25"
22.4 lbs
