High Temperature Bearings vs. Standard

When equipment runs hot, standard bearings run out of options. Whether you're designing industrial furnaces, jet engine accessories, or EV motors, understanding the critical differences between high temperature bearings and standard bearings can be the difference between years of reliable service and a costly, unplanned shutdown.

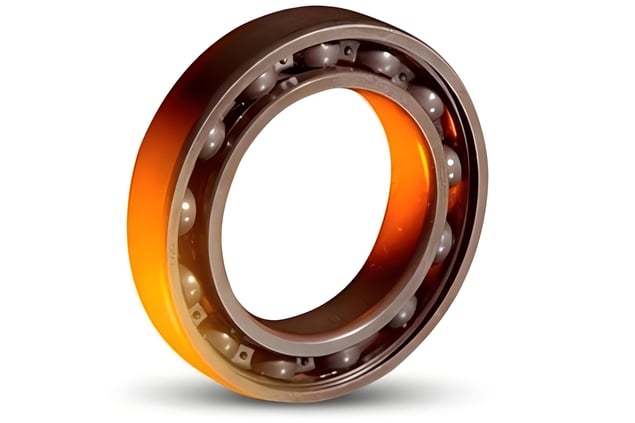

What Are High Temperature Bearings?

High temperature bearings are precision-engineered rolling element bearings specifically designed to maintain dimensional stability, lubrication film integrity, and fatigue resistance in sustained elevated-temperature environments — typically classified as applications exceeding 120–150°C (248–302°F) in continuous operation.

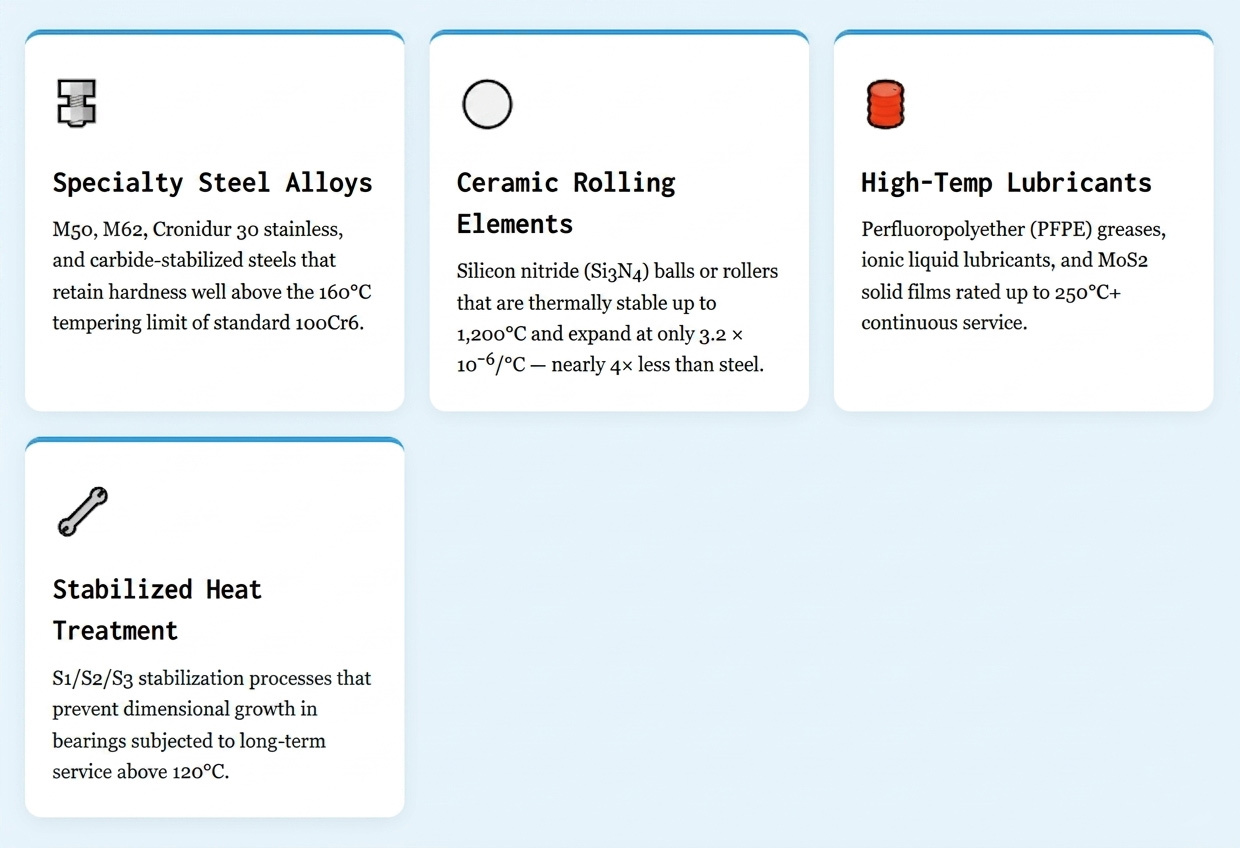

Unlike standard bearings, which use conventional chrome steel (100Cr6 / 52100) and conventional mineral or synthetic grease, high temperature variants employ one or more of the following engineering strategies:

High Temperature vs. Standard Bearings: Master Comparison

The table below covers every critical engineering parameter. Use this as your reference when specifying bearings for elevated-temperature applications.

Why Standard Bearings Fail in High-Heat Environments

1. Dimensional Instability (Retained Austenite Transformation)

Standard chrome steel bearings are hardened by quenching and tempering at roughly 160°C. Any prolonged service above this temperature causes retained austenite — a thermodynamically unstable phase in the steel microstructure — to transform to martensite. This causes measurable dimensional growth (typically 0.002–0.010 mm on the bore), which translates directly into increased internal clearance, elevated vibration, and runout that ruins precision tolerances.

2. Lubricant Breakdown

Standard mineral oil-based greases have an upper service limit of approximately 120–130°C. Above this, the base oil oxidizes rapidly, the thickener breaks down, and the grease loses its ability to maintain an adequate Elastohydrodynamic Lubrication (EHL) film. Metal-to-metal contact follows shortly after — and so does catastrophic wear.

3. Cage Degradation

Standard bearings use polyamide (nylon) or pressed steel cages. Polyamide cages soften and distort above 120–140°C. While steel cages survive higher temperatures structurally, they suffer from thermal stress fatigue when exposed to rapid thermal cycling common in industrial furnaces, autoclaves, and turbomachinery.

4. Fatigue Life Reduction

Rolling contact fatigue life is acutely sensitive to temperature. For every 20°C increase in bearing temperature above the design point, the L10 fatigue life drops by approximately 25–30%. A bearing rated at 1,000 hours at 100°C may deliver only 200–300 hours at 180°C in standard steel construction.

Bearing Material Performance at Elevated Temperatures

Not all 'high temperature' bearings are created equal. The choice of steel alloy or ceramic material has a profound impact on performance at specific temperature bands.

Where High Temperature Bearings Are Used

The application landscape for high temperature bearings spans some of the most demanding operating environments in modern industry. Here is where engineers consistently specify high-temp variants over standard designs:

Lubrication: The Hidden Variable in High-Temperature Performance

Even the most carefully specified high temperature bearing will underperform — or fail prematurely — with the wrong lubricant. Lubrication selection is arguably as critical as material selection in elevated-temperature bearing design.

How to Choose: Decision Framework for Engineers

Use this tiered selection framework when specifying bearings for elevated-temperature applications:

Frequently Asked Questions

Q: At what temperature should I switch to high temperature bearings?

The general industry threshold is 120°C continuous operating temperature. Above this point, standard 100Cr6 bearings require at minimum S1 dimensional stabilization, and you should evaluate upgrading to high-temperature steel alloys or hybrid ceramic designs depending on your full performance envelope.

Q: Can I use a standard bearing with a high-temperature grease to save cost?

Partially. A PFPE grease can extend lubricant life significantly, but it does not address the fundamental dimensional instability of standard 100Cr6 steel above 160°C. In short-duration excursions above 150°C, better grease helps. In sustained high-temperature service, you need the correct bearing material as well.

Q: Do hybrid ceramic bearings really outperform standard steel in high-temperature environments?

Yes, significantly. Silicon nitride rolling elements expand at only 3.2 × 10⁻⁶/°C — roughly 4× less than steel. As temperature rises, a hybrid bearing maintains tighter internal clearance control and smoother rolling contact geometry. This typically delivers 3–5× the L10 fatigue life of standard steel in the 150–350°C range.

Q: What is dimensional stabilization (S1/S2/S3) and when is it needed?

Dimensional stabilization is a supplementary heat treatment applied to bearing rings and rolling elements to transform retained austenite before it can do so in service. S1 stabilizes up to 150°C, S2 up to 200°C, and S3 up to 250°C. Any bearing operating above 120°C should include at minimum an S1 suffix in the part number.

Q: Are full ceramic bearings always the best option for extreme heat?

Not necessarily. Full ceramic bearings offer unmatched temperature capability and corrosion resistance, but carry a 300–800% cost premium and are more susceptible to brittle fracture under shock loading. For most industrial applications below 400°C, a hybrid ceramic design offers better value. Full ceramic is best reserved for scenarios combining extreme temperature with dry-run requirements or cleanroom contamination restrictions.
