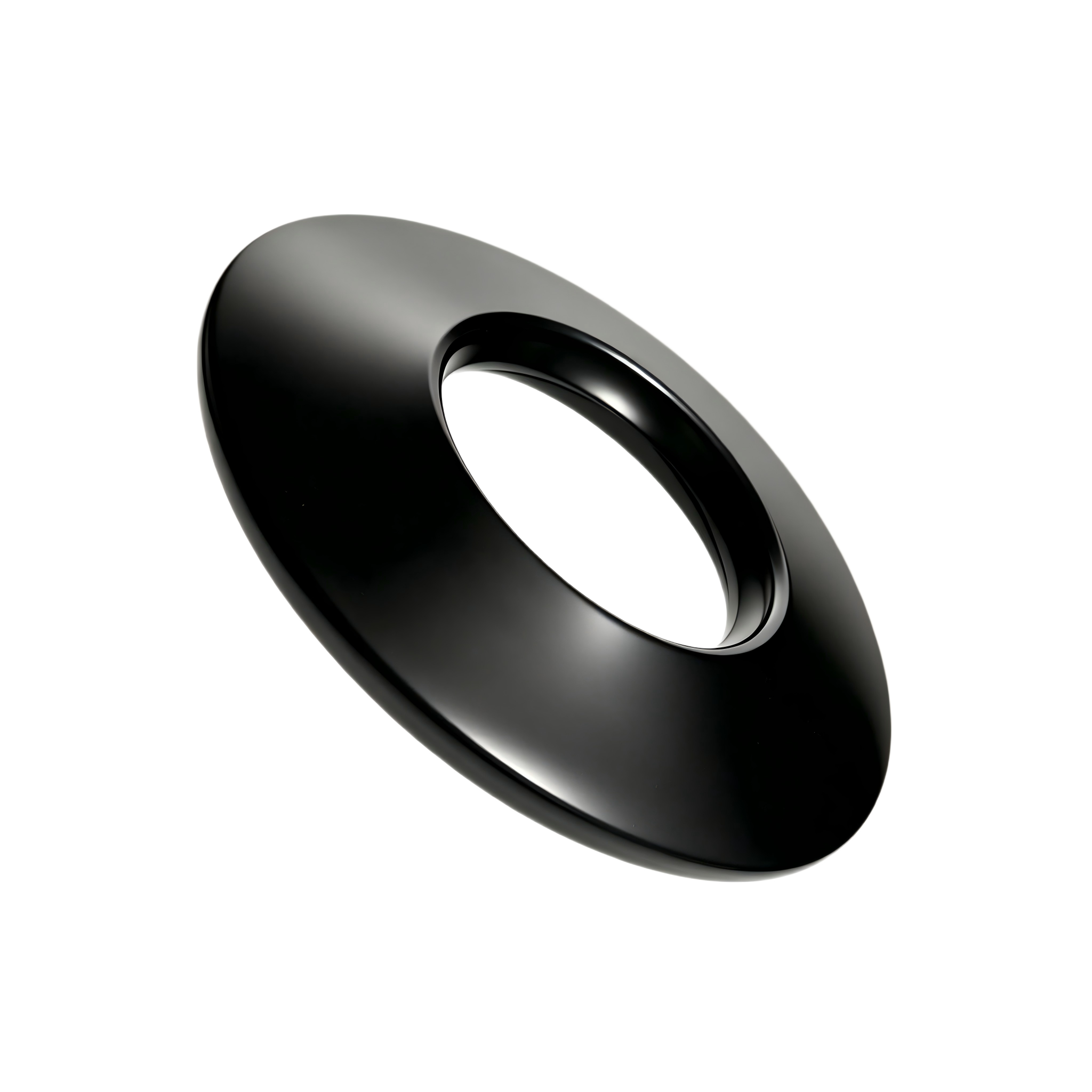

Belleville Disc Springs
236 Produtos
Belleville Disc Springs
Número da Peça
Para Diâmetro do Eixo
OD
ID
Espessura
Altura
Compressed Height @ Working Load
Deflection @ Working Load
Carga de Trabalho
Flat Load
Material
Preço
>
Número da Peça
Para Diâmetro do Eixo
OD
ID
Espessura
Altura
Compressed Height @ Working Load
Deflection @ Working Load
Carga de Trabalho
Flat Load
Material
Preço
>
JHBCKGJ
3/8"
0.75"
0.38"
0.034"
0.055"
0.044"
0.011"
166 lbf
282 lbs.
Aço de Alto Carbono
$5.32
JHBCKHD
5/16"
0.937"
0.317"
0.045"
0.067"
0.056"
0.011"
218 lbf
395 lbs.
Aço de Alto Carbono
$10.03
JHBCKID
5/8"
1.25"
0.63"
0.062"
0.092"
0.077"
0.015"
475 lbf
870 lbs.
Aço de Alto Carbono
$8.17
JHBCKIE
5/8"
1.25"
0.63"
0.089"
0.111"
0.1"
0.011"
980 lbf
1914 lbs.
Aço de Alto Carbono
$12.00
JHBCKJH
1 1/4"
2.5"
1.25"
0.12"
0.18"
0.15"
0.03"
1746 lbf
3200 lbs.
Aço de Alto Carbono
$2.93
JHBCKBBH
1/4"
0.75"
0.255"
0.036"
0.054"
0.045"
0.009"
147 lbf
261 lbs.
Aço de Alto Carbono
$1.39
JHBCKBBI
5/16"
0.937"
0.317"
0.03"
0.06"
0.045"
0.015"
110 lbf
159 lbs.
Aço de Alto Carbono
$2.33
JHBCKBBJ
1/2"
1.5"
0.505"
0.047"
0.093"
0.07"
0.023"
251 lbf
366 lbs.
Aço de Alto Carbono
$1.43
JHBCKBE
0.164"
0.343"
0.164"
0.019"
0.028"
0.023"
0.005"
55 lbf
93 lbs.
Aço de Alto Carbono
$5.51
JHBCKBF
3/16"
0.375"
0.19"
0.018"
0.028"
0.023"
0.005"
46 lbf
81 lbs.
Aço de Alto Carbono
$5.75
JHBCKCB
1/4"
0.637"
0.255"
0.032"
0.048"
0.04"
0.008"
118 lbf
222 lbs.
Aço de Alto Carbono
$6.32
JHBCKCF
1/2"
1.262"
0.505"
0.06"
0.091"
0.075"
0.016"
409 lbf
731 lbs.
Aço de Alto Carbono
$6.96
JHBCKCG
5/8"
1.875"
0.63"
0.057"
0.115"
0.085"
0.03"
370 lbf
522 lbs.
Aço de Alto Carbono
$14.34
JHBCKCH
3/4"
1.5"
0.755"
0.06"
0.102"
0.081"
0.021"
455 lbf
774 lbs.
Aço de Alto Carbono
$1.68
JHBCKEBI
5/16"
0.937"
0.328"
0.07"
0.094"
0.075"
0.019"
1130 lbf
1610 lbs.
Aço de Alto Carbono
$7.44
JHBCKEBJ
11/32"
1"
0.344"
0.09"
0.102"
0.092"
0.01"
1040 lbf
1499 lbs.
Aço de Alto Carbono
$11.38
JHBCKECH
13/32"
0.875"
0.406"
0.109"
0.124"
0.112"
0.012"
3230 lbf
4687 lbs.
Aço de Alto Carbono
$7.64
JHBCKEEE
17/32"
1.25"
0.531"
0.062"
0.092"
0.068"
0.024"
580 lbf
860 lbs.
Aço de Alto Carbono
$8.64
JHBCKEEH
17/32"
1.25"
0.531"
0.125"
0.143"
0.129"
0.014"
2780 lbf
4024 lbs.
Aço de Alto Carbono
$9.48
JHBCKEFB
19/32"
1.188"
0.593"
0.089"
0.115"
0.094"
0.021"
1730 lbf
2489 lbs.
Aço de Alto Carbono
$11.38
JHBCKEFD
21/32"
1.5"
0.656"
0.1"
0.14"
0.108"
0.032"
2250 lbf
3210 lbs.
Aço de Alto Carbono
$5.81
JHBCKEFE
21/32"
1.625"
0.656"
0.085"
0.105"
0.089"
0.016"
570 lbf
826 lbs.
Aço de Alto Carbono
$7.16
JHBCKEFI
11/16"
2"
0.687"
0.125"
0.161"
0.132"
0.029"
2100 lbf
3136 lbs.
Aço de Alto Carbono
$18.95
JHBCKEGD
13/16"
2.25"
0.812"
0.156"
0.202"
0.165"
0.037"
4130 lbf
6206 lbs.
Chrome-Vanadium Steel
$6.41
JHBCKEGH
1 1/16"
3.5"
1.063"
0.219"
0.281"
0.231"
0.05"
6270 lbf
9362 lbs.
Chrome-Vanadium Steel
$10.50
JHBCKEHE
1 13/32"
2.75"
1.406"
0.132"
0.196"
0.145"
0.051"
2670 lbf
3210 lbs.
Chrome-Vanadium Steel
$15.33
JHBCKEHI
1 17/32"
3"
1.531"
0.143"
0.213"
0.157"
0.056"
3120 lbf
4380 lbs.
Aço de Alto Carbono
$12.22
JHBCKFC
3/32"
0.187"
0.093"
0.01"
0.015"
0.013"
0.002"
15 lbf
28 lbs.
Aço de Alto Carbono
$11.05
JHBCKFE
1/8"
0.25"
0.125"
0.013"
0.02"
0.017"
0.003"
26 lbf
48 lbs.
Aço de Alto Carbono
$4.22
JHBCKFF
0.138"
0.281"
0.138"
0.015"
0.023"
0.019"
0.004"
33 lbf
62 lbs.
Aço de Alto Carbono
$4.76
JHBCKGB
1/4"
0.5"
0.255"
0.018"
0.034"
0.026"
0.008"
45 lbf
70 lbs.
Aço de Alto Carbono
$3.68
JHBCKGC
1/4"
0.5"
0.255"
0.022"
0.036"
0.029"
0.007"
65 lbf
115 lbs.
Aço de Alto Carbono
$3.87
JHBCKGD
1/4"
0.5"
0.255"
0.025"
0.038"
0.031"
0.007"
95 lbf
160 lbs.
Aço de Alto Carbono
$3.66
JHBCKGE
1/4"
0.5"
0.255"
0.038"
0.047"
0.043"
0.004"
190 lbf
400 lbs.
Aço de Alto Carbono
$5.44
JHBCKGF
5/16"
0.625"
0.317"
0.022"
0.042"
0.032"
0.01"
70 lbf
105 lbs.
Aço de Alto Carbono
$5.00
JHBCKBH
0.216"
0.437"
0.22"
0.016"
0.031"
0.023"
0.008"
40 lbf
60 lbs.
Aço de Alto Carbono
$9.40
JHBCKBI
3/16"
0.562"
0.19"
0.019"
0.037"
0.028"
0.009"
45 lbf
67 lbs.
Aço de Alto Carbono
$5.72
JHBCKECC
3/8"
0.812"
0.39"
0.061"
0.079"
0.065"
0.014"
810 lbf
1163 lbs.
Aço de Alto Carbono
$7.52
JHBCKECF
13/32"
0.875"
0.406"
0.062"
0.074"
0.064"
0.01"
476 lbf
644 lbs.
Aço de Alto Carbono
$6.56
JHBCKECI
13/32"
1"
0.406"
0.062"
0.092"
0.068"
0.024"
900 lbf
1262 lbs.
Aço de Alto Carbono
$5.88
JHBCKECJ
13/32"
1"
0.406"
0.105"
0.118"
0.108"
0.01"
1830 lbf
2657 lbs.
Aço de Alto Carbono
$10.66
JHBCKEDB
13/32"
1.188"
0.406"
0.098"
0.119"
0.102"
0.017"
1660 lbf
2400 lbs.
Aço de Alto Carbono
$11.60
JHBCKEDF
7/16"
0.937"
0.453"
0.07"
0.09"
0.074"
0.016"
1030 lbf
1471 lbs.
Aço de Alto Carbono
$8.84
JHBCKEDG
7/16"
1.188"
0.453"
0.089"
0.12"
0.095"
0.025"
1890 lbf
2698 lbs.
Aço de Alto Carbono
$11.72
JHBCKEDJ
17/32"
1"
0.531"
0.089"
0.1"
0.091"
0.009"
1070 lbf
1542 lbs.
Aço de Alto Carbono
$11.84
JHBCKEE
17/32"
1.063"
0.531"
0.09"
0.106"
0.093"
0.013"
1370 lbf
1977 lbs.
Aço de Alto Carbono
$11.32
JHBCKEED
17/32"
1.218"
0.531"
0.074"
0.104"
0.08"
0.024"
1040 lbf
1475 lbs.
Aço de Alto Carbono
$7.07
JHBCKEHB
1 5/16"
4"
1.312"
0.312"
0.382"
0.326"
0.056"
15670 lbf
22670 lbs.
Chrome-Vanadium Steel
$16.40
JHBCKEIB
1 11/16"
4.75"
1.687"
0.437"
0.497"
0.449"
0.048"
26290 lbf
38012 lbs.
Chrome-Vanadium Steel
$28.11
JHBCKEID
1 15/16"
5"
1.937"
0.25"
0.333"
0.267"
0.066"
6310 lbf
9003 lbs.
Chrome-Vanadium Steel
$21.30
