Rodamientos lineales de manguito de montaje común
47 productos

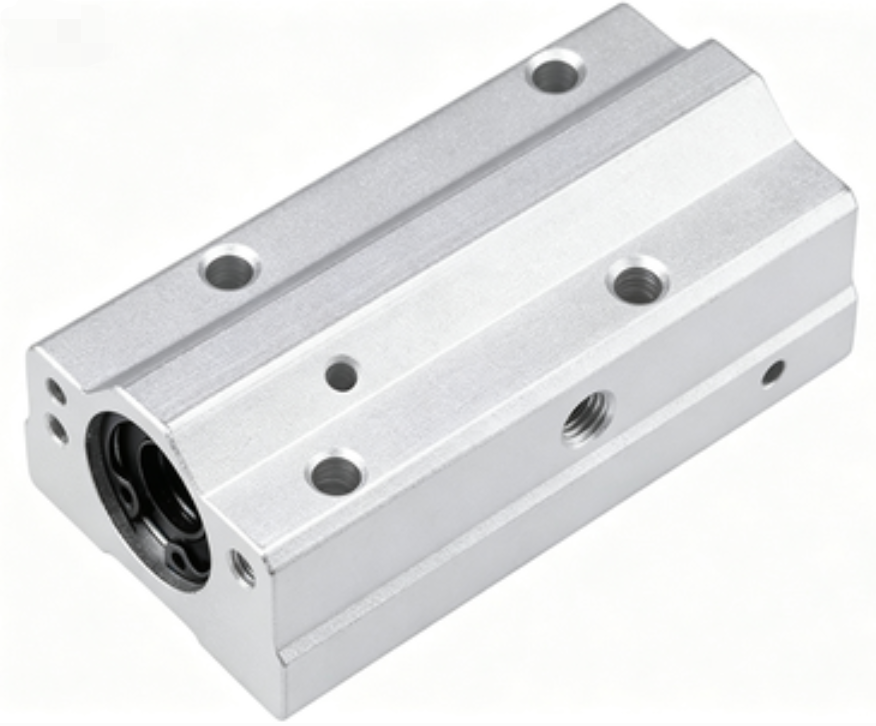

Rodamientos lineales de manguito de montaje común
Prácticamente sin mantenimiento, estos rodamientos tienen revestimientos deslizantes y resistentes a los productos químicos que no requieren lubricación adicional.
Número de pieza
Diámetro
Longitud
total
total
Anchura
total
total
Altura
central
central
With End
Seals
Seals
Carga radial
dinámica
dinámica
Carga radial
estática
estática
Rango de
temperatura
temperatura
GDHEKBBF
0.25"
1 3/16"
1 5/8"
7/16"
No
50 lbs @ 100 fpm
600 lbs
-400° a 400° F
GDHEKBBG
0.25"
1 3/16"
1 5/8"
7/16"
No
50 lbs @ 100 fpm
600 lbs
-400° a 400° F
GDHEKCBD
0.25"
2 1/2"
1 5/8"
7/16"
No
100 lbs @ 100 fpm
1200 lbs
-400° a 400° F
IGEJTB
0.25"
1 3/16"
1 5/8"
7/16"
No
50 lbs @ 100 fpm
935 lbs
-400° a 375° F
GDHEKBBI
0.375"
1 5/16"
1 3/4"
1/2"
No
90 lbs @ 100 fpm
1000 lbs
-400° a 400° F
GDHEKBBJ
0.375"
1 5/16"
1 3/4"
1/2"
No
90 lbs @ 100 fpm
1000 lbs
-400° a 400° F
GDHEKCBF
0.375"
2 3/4"
1 3/4"
1/2"
No
200 lbs @ 100 fpm
2000 lbs
-400° a 400° F
GDHEKCBG
0.375"
2 3/4"
1 3/4"
1/2"
No
200 lbs @ 100 fpm
2000 lbs
-400° a 400° F
IGEJTC
0.375"
1 5/16"
1 3/4"
1/2"
No
90 lbs @ 100 fpm
1600 lbs
-400° a 375° F
GDHEKBCF
0.5"
1 11/16"
2"
11/16"
No
150 lbs @ 100 fpm
1900 lbs
-400° a 400° F
GDHEKBCG
0.5"
1 11/16"
2"
11/16"
No
150 lbs @ 100 fpm
1900 lbs
-400° a 400° F
GDHEKCBI
0.5"
3 1/2"
2"
11/16"
No
350 lbs @ 100 fpm
3900 lbs
-400° a 400° F
GDHEKCBJ
0.5"
3 1/2"
2"
11/16"
No
350 lbs @ 100 fpm
3900 lbs
-400° a 400° F
IGEJTD
0.5"
1 11/16"
2"
11/16"
No
150 lbs @ 100 fpm
3100 lbs
-400° a 375° F
GDHEKBCI
0.625"
1 15/16"
2 1/2"
7/8"
No
200 lbs @ 100 fpm
2900 lbs
-400° a 400° F
GDHEKBCJ
0.625"
1 15/16"
2 1/2"
7/8"
No
200 lbs @ 100 fpm
2900 lbs
-400° a 400° F
GDHEKCCC
0.625"
4"
2 1/2"
7/8"
No
500 lbs @ 100 fpm
5800 lbs
-400° a 400° F
GDHEKCCD
0.625"
4"
2 1/2"
7/8"
No
500 lbs @ 100 fpm
5800 lbs
-400° a 400° F
IGEJTE
0.625"
1 15/16"
2 1/2"
7/8"
No
200 lbs @ 100 fpm
4600 lbs
-400° a 375° F
GDHEKBDC
0.75"
2 1/16"
2 3/4"
15/16"
No
300 lbs @ 100 fpm
3800 lbs
-400° a 400° F
GDHEKBDD
0.75"
2 1/16"
2 3/4"
15/16"
No
300 lbs @ 100 fpm
3800 lbs
-400° a 400° F
GDHEKCCF
0.75"
4 1/2"
2 3/4"
15/16"
No
600 lbs @ 100 fpm
7600 lbs
-400° a 400° F
GDHEKCCG
0.75"
4 1/2"
2 3/4"
15/16"
No
600 lbs @ 100 fpm
7600 lbs
-400° a 400° F
IGEJTF
0.75"
2 1/16"
2 3/4"
15/16"
No
300 lbs @ 100 fpm
6100 lbs
-400° a 375° F
GDHEKBDF
1"
2 13/16"
3 1/4"
1 3/16"
No
500 lbs @ 100 fpm
7000 lbs
-400° a 400° F
GDHEKBDG
1"
2 13/16"
3 1/4"
1 3/16"
No
500 lbs @ 100 fpm
7000 lbs
-400° a 400° F
GDHEKCCI
1"
6"
3 1/4"
1 3/16"
No
1000 lbs @ 100 fpm
14000 lbs
-400° a 400° F
GDHEKCCJ
1"
6"
3 1/4"
1 3/16"
No
1000 lbs @ 100 fpm
14000 lbs
-400° a 400° F
IGEJTG
1"
2 13/16"
3 1/4"
1 3/16"
No
500 lbs @ 100 fpm
11000 lbs
-400° a 375° F
GDHEKBDI
1.25"
3 5/8"
4"
1 1/2"
No
900 lbs @ 100 fpm
10000 lbs
-400° a 400° F
GDHEKBDJ
1.25"
3 5/8"
4"
1 1/2"
No
900 lbs @ 100 fpm
10000 lbs
-400° a 400° F
GDHEKCDC
1.25"
7 1/2"
4"
1 1/2"
No
1500 lbs @ 100 fpm
20000 lbs
-400° a 400° F
GDHEKCDD
1.25"
7 1/2"
4"
1 1/2"
No
1500 lbs @ 100 fpm
20000 lbs
-400° a 400° F
IGEJTH
1.25"
3 5/8"
4"
1 1/2"
No
900 lbs @ 100 fpm
16000 lbs
-400° a 375° F
GDHEKBEC
1.5"
4"
4 3/4"
1 3/4"
No
1000 lbs @ 100 fpm
14000 lbs
-400° a 400° F
GDHEKBED
1.5"
4"
4 3/4"
1 3/4"
No
1000 lbs @ 100 fpm
14000 lbs
-400° a 400° F
GDHEKCDG
1.5"
9"
4 3/4"
1 3/4"
No
2500 lbs @ 100 fpm
28000 lbs
-400° a 400° F
IGEJTI
1.5"
4"
4 3/4"
1 3/4"
No
1000 lbs @ 100 fpm
22000 lbs
-400° a 375° F
GDHEKBEF
2"
5"
6"
2 1/8"
No
2000 lbs @ 100 fpm
25000 lbs
-400° a 400° F
GDHEKBEG
2"
5"
6"
2 1/8"
No
2000 lbs @ 100 fpm
25000 lbs
-400° a 400° F
GDHEKCDI
2"
10"
6"
2 1/8"
No
4000 lbs @ 100 fpm
50000 lbs
-400° a 400° F
GDHEKCDJ
2"
10"
6"
2 1/8"
No
4000 lbs @ 100 fpm
50000 lbs
-400° a 400° F
IGEJTJ
2"
5"
6"
2 1/8"
No
2000 lbs @ 100 fpm
40000 lbs
-400° a 375° F
GDHEKBFC
16 mm
44 mm
50 mm
19mm
No
200 lbs @ 100 fpm
3300 lbs
-400° a 375° F
GDHEKBFD
20 mm
53 mm
54mm
21mm
No
300 lbs @ 100 fpm
5200 lbs
-400° a 375° F
GDHEKBFE
25 mm
67 mm
76mm
26mm
No
500 lbs @ 100 fpm
4800 lbs
-400° a 375° F
GDHEKBFG
40 mm
90 mm
102mm
40 mm
No
1000 lbs @ 100 fpm
18600 lbs
-400° a 375° F
