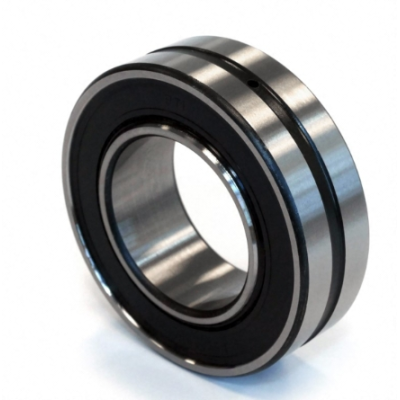

WS22207-E1-XL-2RSR-C3
| Número de pieza | WS22207-E1-XL-2RSR-C3 |
| Sistema de medición | Métrica |
| Diámetro | 35 mm |
| Diámetro exterior | 72 mm |
| Anchura | 28 mm |
| Basic dynamic load rating, radial | 89,000 N |
| Basic static load rating, radial | 81,000 N |
| Fatigue load limit, radial | 9,700 N |
| Limiting speed | 2,700 1/min |
| Peso | 0.496 kg |
| Minimum diameter shaft shoulder | 40.1 mm |
| Maximum diameter of housing shoulder | 65 mm |
| Maximum recess radius | 1 mm |
| Minimum chamfer dimension | 1.1 mm |
| Bore diameter outer ring | 64.2 mm |
| Raceway diameter of the inner ring | 40.1 mm |
| Diameter lubrication hole | 3.2 mm |
| Width of lubricating groove | 4.8 mm |
| Operating temperature min. | -30 u00B0C |
| Operating temperature max. | 100 u00B0C |
| Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y | 0.31 |
| Dynamic axial load factor | 3.29 |
| Static axial load factor | 2.16 |
| Sistema de medición | Métrica |
