FIL8700
$0.00
/Each
Los pedidos al por mayor tendrán descuento, por favor contacte con nuestros comerciales para un presupuesto al por mayor.
Se envía en 1-2 días laborables tras el pago, más 3-6 días laborables de tránsito vía FedEx. La información de seguimiento se enviará a su correo electrónico.
Buscar el mejor precio?
Rellene el formulario de consulta y le ofreceremos la solución más adecuada.
Solicitar presupuesto
Visión general |
|
| Número de pieza | FIL8700 |
Characteristics |
|
| Fabricante de aeronaves | AIRBUS, HERRAMIENTAS FIL |
| Modelos de Aeronaves | AIRBUS A380 |
| Estado | Nuevo |
| Serie | FIL8700 |
| Search Key | FIL8700 |
| Numbering System | Fil Tooling PN — FIL prefix |
| Aircraft Program Code | A380 |

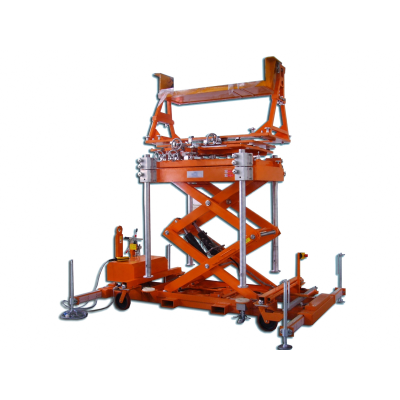

| Tool Name | AIR GENERATION UNIT INSTALLATION AND REMOVAL TOOL |
| Descripción | FIL8700 AIR GENERATION UNIT INSTALLATION AND REMOVAL TOOL USED ON A380 AIRCRAFT FOR THE INSTALLATION AND REMOVAL OF THE AIR GENERATION UNIT DESIGNED, DEVELOPED AND MANUFACTURED BY FIELD FOR THE REMOVAL AND INSTALLATION OF THE AIR GENERATION UNIT (AGU) FOR THE A380 AIRCRAFT. THE AIR GENERATION UNIT IS REMOVED IN ORDER FOR THE FILTERS TO BE REPLACED. FIELD DESIGNED THE EQUIPMENT WHICH ENSURES A FAST AND SAFE RETURN TO SERVICE. THIS IS THE ONLY AIRBUS APPROVED EQUIPMENT TO PERFORM THE TASK AND APPEARS IN THE AIRBUS AIRCRAFT MAINTENANCE MANUAL (AMM). THE EQUIPMENT OFFERS FIVE AXES OF MOVEMENT AND IS MANUALLY OPERATED VIA HAND-WHEELS. THE Z AXIS (RAISE & LOWER) IS POWERED ELECTRICALLY, AND CAN ALSO BE RAISED AND LOWERED HYDRAULICALLY BY THE USE OF A HAND PUMP. © 2022 FIELD INTERNATIONAL |
Dimensions |
|
| Dimensiones (cm) | L:310 x W:167 x H:127 |
| Longitud | 310 mm |
| Anchura | 167 mm |
| Altura | 127 mm |
Properties |
|
| Plazo de entrega (días) | 120 |
| Peso | 2760 kg |
