Silent Wide-Type Ball Linear Guide-QW Series

120 Produkte
Mehr

Zur Vereinfachung der präzisen Konfiguration und Auswahl verwendet die QW-Baureihe ein standardisiertes alphanumerisches Bezeichnungssystem. Dieses modulare System definiert Schlüsselparameter, einschließlich Tragfähigkeit (hohe Last), Montagerichtung (oben/unten), Genauigkeitsklasse (C/H/P), Vorspannungsklasse (Z0/ZA/ZB) und Schienenlänge (mm). Mit ihrer reduzierten Gesamthöhe und dem einzigartigen Breitschienen-Design ist sie ideal für Anwendungen, die hohe Stabilität und Steifigkeit erfordern.

Die QW-Baureihe ist kompatibel mit Schienen der WE-Baureihe, wodurch Kunden keine Installationsmaße neu konstruieren müssen, wenn sie ein geräuscharmes Produkt auswählen.

Für kundenspezifische Linearführungen geben Sie bitte die Schienenlänge in 1-mm-Schritten an.

Hinweis: Jeder Laufwagen kann nur mit der entsprechenden Schiene verwendet werden.

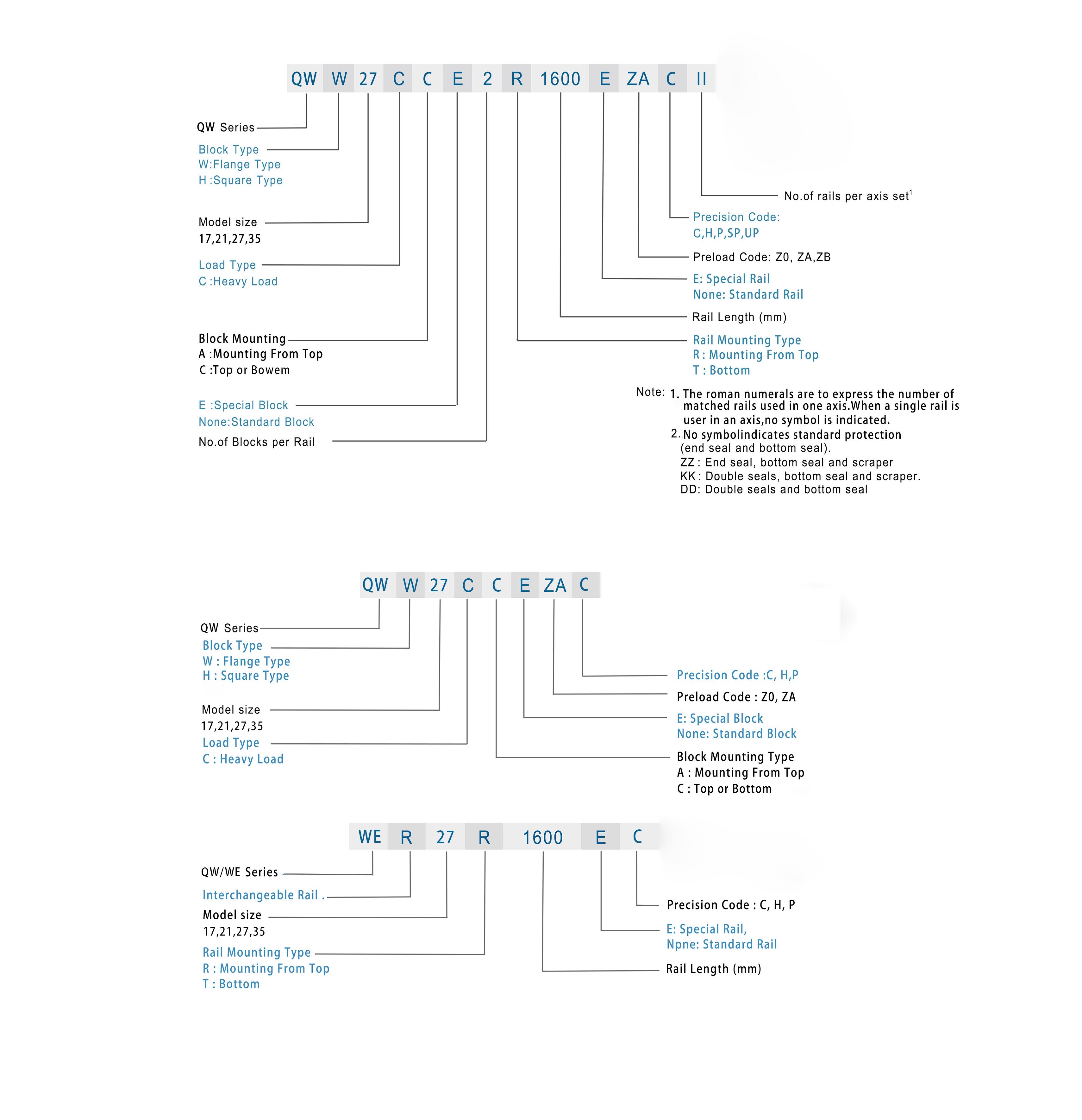

Beachten Sie das Diagramm unten für eine detaillierte Aufschlüsselung der Bestandteile der Modellnummer.
