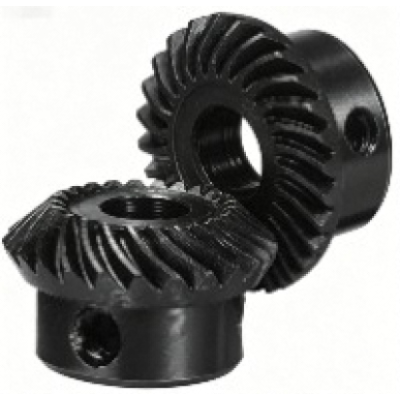

HGFFKC
Price $ 70.99
| Part Number | HGFFKC |
| System of Measurement | Inch |
| Gear Type | Spiral Miter |
| Component | Gear |
| Bore Type | Keyed |
| Gear Pitch | 12 |
| Speed Ratio | 1:1 |
| Number Of Teeth | 15 |
| Pressure Angle | 20° |
| Gear Pitch Diameter | 1 1/4" |
| OD | 1.36" |
| Face Width | 0.3" |
| Overall Width | 0.86" |
| For Shaft Diameter | 1/2" |
| Mounting Distance | 1.25" |
| Material | 1117 Carbon Steel |
| Teeth Heat Treatment | Hardened |
| Hub Diameter | 1" |
| Hub Width | 0.5" |
| Keyway Width | 0.125" |
| Keyway Depth | 0.063" |
| Set Screw Thread Size | 1/4"-20 |
| Includes | Set Screw |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | Not Compliant |
})
INTERCHANGE
The LILY bearing part series HGFFKC is a potential replacement for these common bearing part numbers.
LILY
MCMASTER
HGFFKC
