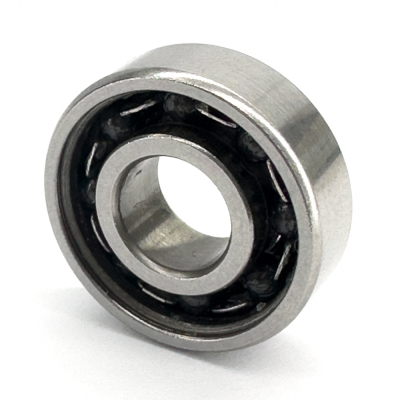

SR4A
| Part Number | SR4A |
| System of Measurement | Inch |
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Inner Ring Type | Standard |
| Seal Type | Open |
| Bore Dia | 0.25" |
| Bore Dia Tolerance | -0.0003" to 0" |
| Outer Dia | 0.75" |
| Outer Dia Tolerance | -0.0003" to 0" |
| Width | 0.2188" |
| Width Tolerance | -0.005" to 0" |
| Ring Material | Stainless Steel |
| Ball Material | Stainless Steel |
| Cage Material | Stainless Steel |
| Dynamic Radial Load | 401 lbf |
| Static Radial Load | 145 lbf |
| Max Speed (X1000 rpm) | 32.4 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -86 to 230 °F |
| ABEC Rating | ABEC1 |
| Radial Clearance Trade No | MC3 |
| Radial Clearance | 0.00008" to 0.0005" |
| RoHS | Compliant |
| REACH | Compliant |
| Ball Dia | 0.13780" |
| Ball Qty | 6 |
| Weight | 7.48 g |
Design Features of SR4A Bearing
SR4A Bearing offers dependable and efficient performance in industrial applications where space is at a premium. SR4A bore dia is 0.25". Its out dia is 0.75". SR4A ball material is Stainless Steel. Its seal type is Open. This bearing boasts high-speed capabilities, low friction, and minimal noise levels, ensuring optimal performance. Built to meet industry standards for precision and durability, it is an ideal choice for a variety of compact-space applications in diverse industries.
Applications of SR4A Bearing
SR4A Bearing finds applications in various industries that require high precision and compact design, such as medical devices, robotics, and aerospace technology. It is also used in computer hard drives, motors, and instrumentation equipment. Its small size and efficient performance make it a popular choice for industries where space is limited but high precision is essential.
Maintenance and Troubleshooting Tips of SR4A Bearing
To ensure optimal performance and longevity of SR4A Bearing, regular maintenance is necessary. Inspect the bearing frequently for any signs of damage, wear, or contamination. Clean it with a non-corrosive solvent and dry it thoroughly before lubrication. If any damage or excessive wear is detected, replace the bearing immediately. In case of any issues with the application, troubleshoot to ensure the bearing is being used within its designed parameters.
