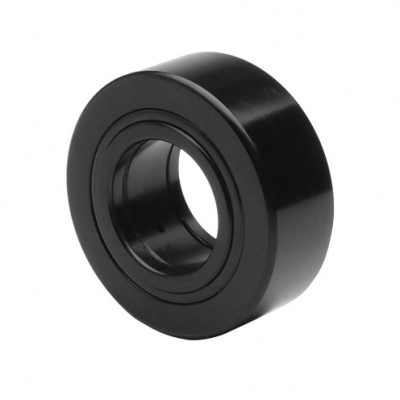

MUTD-4090-D
Part Number | MUTD-4090-D |
Brand: LILY | |
Equivalent: SMITH |
System of Measurement | Metric |
For Load Direction | Radial |
Roller Shape | Crowned |
Internal Construction | Double Row |
Type | Yoke Type |
Seal Type | Shielded |
Series | Metric Yoke Type Industrial Cam Followers |
Roller Material | Bearing Steel |
Roller Dia | 90 mm |
Roller Width | 30 mm |
Yoke Bore Dia | 40 mm |
Overall Width | 32 mm |
Radius | 1.1 |
Max Speed (rpm) | 1600 rpm |
Static Radial Load | 30.15 lbs |
Dynamic Radial Load | 20250 lbs |
RoHS | Compliant |
REACH | Compliant |
Weight | 1.129 kg |
