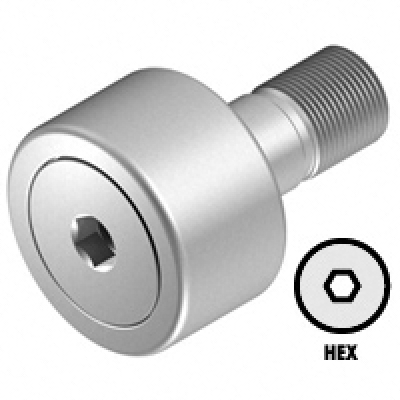

CR-1/2-XB-SS
Part Number | CR-1/2-XB-SS |
Brand: LILY | |
Equivalent: SMITH |
System of Measurement | Inch |
For Load Direction | Radial |
Roller Shape | Cylindrical |
Internal Construction | Full Complement |
Type | Standard Stud |
Mounting Method | Hex Hole |
Seal Type | Sealed |
Series | Stud Type Industrial Cam Followers |
Roller Material | 440C Stainless Steel |
Roller Dia | 0.500" |
Roller Width | 0.375" |
Stud Dia | 0.190" |
Stud Length | 0.625" |
Threads | 10-32 |
Minimum Thread Length | 1/4 |
Shoulder Dia | 19/64 |
Hex Socket | 1/8 |
Lube Fitting Size | N/A |
Lubrication Fitting Size | N/A |
Lubrication Hole Location | N/A |
Dynamic Radial Load | 475 lbs |
RoHS | Compliant |
REACH | Compliant |
Recom Bore | .190 |
Recom Bore Tolerance | +.0005/-.0000 |
