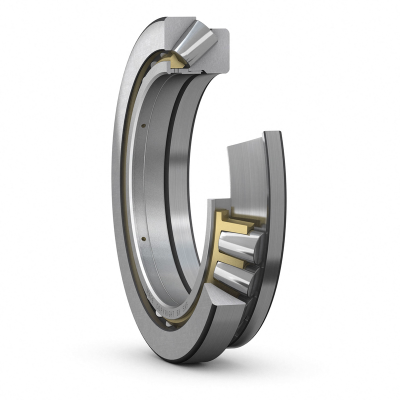

29292
Price $ 2606.15
| Part Number | 29292 |
Brand: LILY  | |
Equivalent: SKF |
| System of Measurement | Metric |
| Bearing Type | Roller |
| For Load Direction | Combined |
| Construction | Single Row |
| Bore Dia | 460 mm |
| Bore Dia Tolerance | -0.045 to 0 |
| Outer Dia | 620 mm |
| Outer Dia Tolerance | -0.05 to 0 |
| Height | 95 mm |
| Height Tolerance | -0.15 to 0 |
| Outside Diameter(d1) | 605 mm |
| Shoulder Diameter Outer Ring(D1) | 530 mm |
| Height Shaft Washer Cage(B1) | 91 mm |
| Height Housing Washer(C) | 46 mm |
| Distance From Shaft Washer End Side Face To Pressure Point(s) | 245 mm |
| Chamfer Dimension Shaft Washer(r1,2) | 5 mm |
| Roller Material | Steel |
| Cage Material | Steel |
| Dynamic Thrust Load | 465355 lbf |
| Static Thrust Load | 2382975 lbf |
| Max Speed (X1000 rpm) | 0.95 |
| Lubrication | Required |
| Temperature Range | -30 to 100 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 81 kg |
})
