How to Remove and Replace a Bicycle Sprocket

Learning how to remove a bicycle sprocket is a core skill for any cyclist.

This comprehensive guide will show you how to remove the old one and install a new one professionally.

You'll ensure your drivetrain performs at its best.

Sprocket Systems: The Critical First Step – Freewheel vs. Cassette

Before you pick up a tool, you must identify which system your bike uses.

Using the wrong method is the most common and costly mistake.

The Freewheel Sprocket System

A freewheel is an all-in-one unit that combines the sprockets and the ratcheting mechanism.

It threads directly onto the wheel hub. This system is common on older, single-speed, or entry-level bicycles.

• How to identify: The entire cluster of sprockets is a single, monolithic unit. When you pedal backward, the entire unit spins freely on the hub.

The Cassette Sprocket System

A cassette is a set of sprockets that slide onto a splined freehub body. The freehub body contains the bearings and connects permanently to the wheel.

This is the standard on modern bicycles.

• How to identify: You will see a distinct, slotted lockring (often with the smallest sprocket) holding the stack of sprockets in place.

The Professional's Toolkit for Sprocket Removal

Using the correct, high-quality tools is non-negotiable. Ill-fitting tools can destroy expensive components.

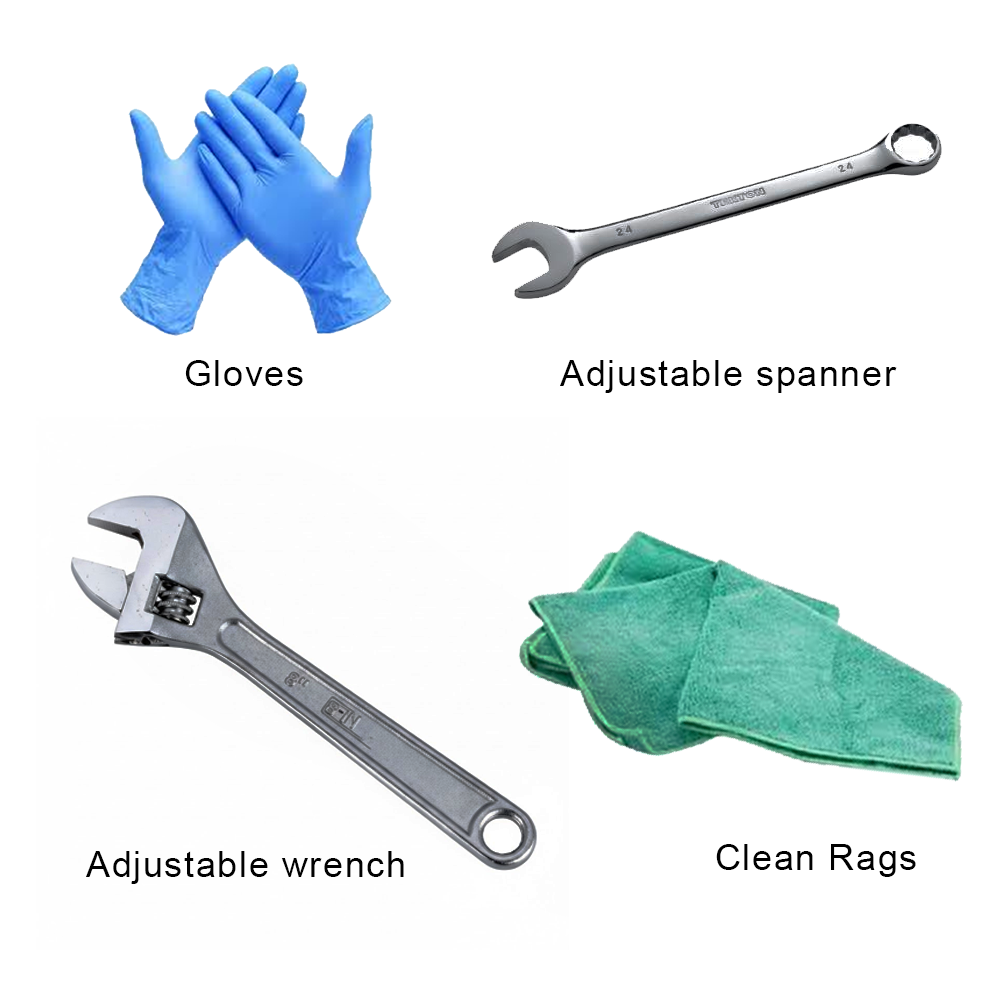

Universal Tools

• Work gloves for safety
• Clean rags
• A large, robust wrench or adjustable spanner

System-Specific Tools

For a Freewheel:

• Freewheel Remover: This tool matches the unique spline pattern inside your specific freewheel brand (e.g., Shimano, SunRace). A perfect fit is critical.

For a Cassette:

• Cassette Lockring Tool: This tool engages with the slots on the lockring. Note that it is different from a freewheel remover.

• Chain Whip: This tool uses a short chain section to hold the sprockets still while you loosen the lockring.

Step-by-Step Sprocket Removal Procedure

How to Remove a Freewheel Sprocket Unit

1. Remove the Wheel: Take the rear wheel off the bike.

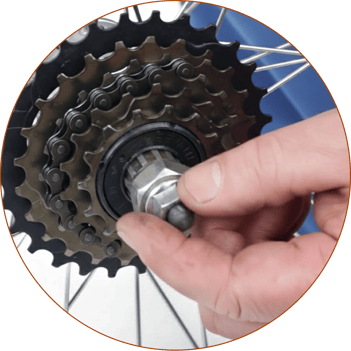

2. Engage the Tool: Insert the freewheel remover fully into the splines, ensuring it sits snugly without any play. You can use a quick-release skewer or an axle nut to hold it in place (do not tighten).

3. Apply Force: Place a wrench on the tool and turn it counter-clockwise. You'll need significant force to break the initial seal.

• Pro Tip: For maximum leverage, you can secure the freewheel remover in a bench vice and turn the wheel itself counter-clockwise.

How to Remove a Cassette Sprocket Set

1. Remove the Wheel: Take the rear wheel off the bike.

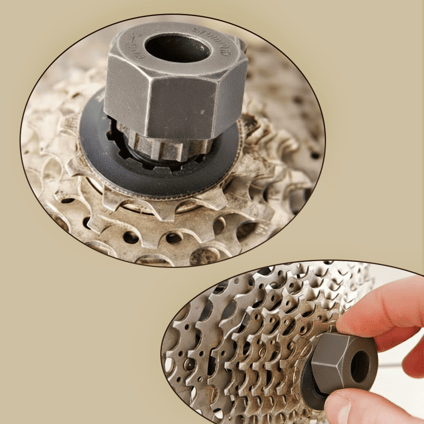

2. Position the Tools: Insert the cassette lockring tool. Then, wrap the chain whip around one of the larger sprockets in the set.

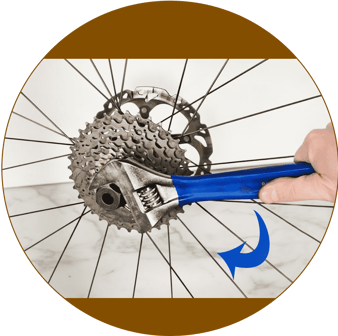

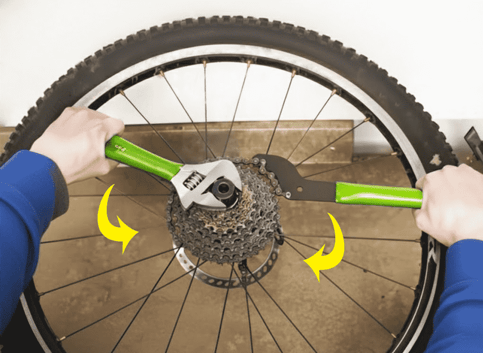

3. Counter-Act and Turn: Apply clockwise pressure with the chain whip to prevent the cassette from rotating. Simultaneously, turn the lockring tool counter-clockwise with a wrench. Apply firm force until the lockring suddenly loosens.

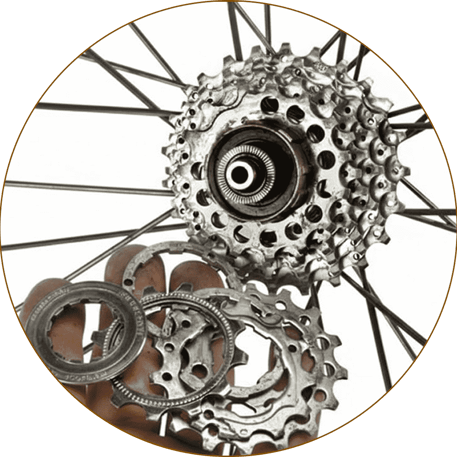

4. Disassemble and Document: Once loose, unscrew the lockring by hand. Now, carefully slide the entire stack of sprockets and spacers off the freehub.

• CRITICAL: Lay the sprockets and spacers out in the exact order they were removed. Taking a photo beforehand is a great backup. Incorrect reassembly will ruin your shifting.

Installing Your New Sprocket: A Guide to Precision

Proper installation is what separates a professional job from an amateur one.

Preparation: The Foundation for Longevity

• Clean and Inspect: Thoroughly clean the hub threads (for a freewheel) or the freehub splines (for a cassette). Remove all old grease, dirt, and debris. Inspect for any signs of wear or damage.

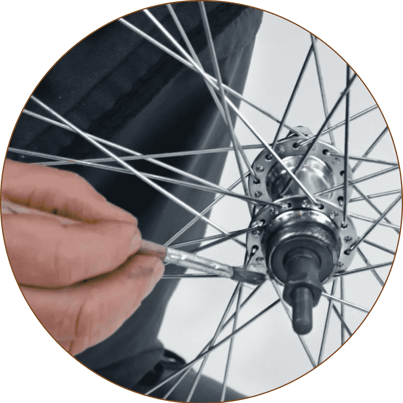

• Apply Anti-Seize Lubricant: Apply a high-quality anti-seize compound or grease to the threads or splines. This keeps everything moving smoothly and stops parts from seizing up. It also ensures you can remove the component easily in the future.

The Installation Process

For Freewheels:

Screw the new freewheel onto the hub by hand to avoid cross-threading. Once it threads on smoothly, tighten it fully by hand. Pedaling forces will further secure it during your first ride.

For Cassettes:

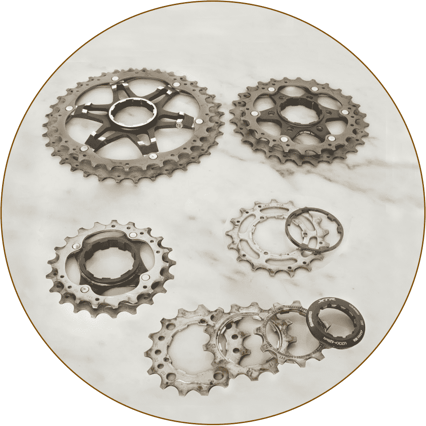

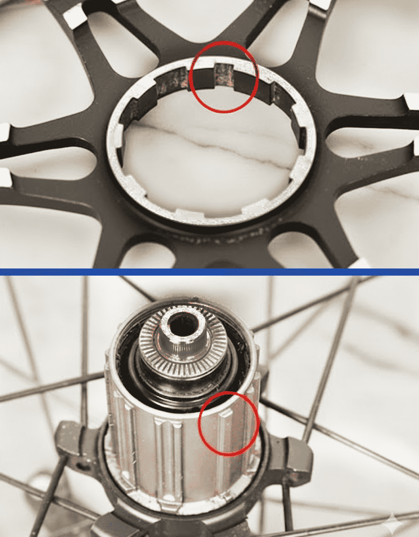

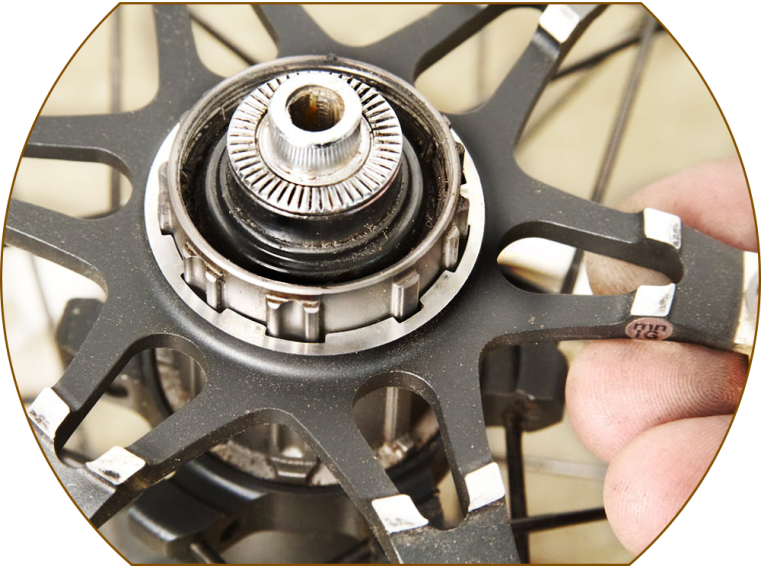

1. Align and Stack: Place the sprockets and spacers back onto the freehub in the correct, pre-documented order. Note that the freehub and sprockets have one wider spline to ensure perfect alignment.

2. Grease the Lockring: Apply a thin layer of grease to the lockring threads.

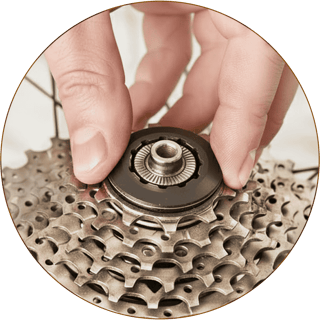

3. Torque to Specification: Screw the lockring on by hand until snug. Then, using a torque wrench with your lockring tool, tighten it to the manufacturer's specified value (typically 30-40 Nm). Proper torque is critical—it keeps you safe and prevents damage.

Pro Tips and Sprocket-Specific Warnings

• Pitfall 1: Mixing up the system. Always confirm Freewheel vs. Cassette first.
• Pitfall 2: Using a freewheel tool on a cassette lockring (or vice-versa), which can strip the splines.
• Pitfall 3: Mixing up the sprocket and spacer order on a cassette. This is the leading cause of poor shifting after a DIY service.
• A Note on Riveted Sprockets: Some entry-level cassettes are riveted or pinned. As confirmed in technical discussions, these are not designed for disassembly. Attempting to drill out the rivets will destroy the sprockets' carefully engineered shifting ramps. You'll need to replace the entire cassette.

Conclusion: Master Your Maintenance for a Smoother Ride

Now that you know how to remove a bicycle sprocket, you possess a fundamental skill for any cyclist.

You've learned to use the right tools and follow the key steps—identification, removal, cleaning, and installation. That puts you in control of your bike's maintenance and saves you time and money. Better yet, you'll develop a deeper connection with your machine.

Take this knowledge with you on every ride. You can now keep your drivetrain running smoothly, ride after ride.
