3560N11
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
| Part Number | DFGANBB |
| System of Measurement | Metric |
| Gear Type | Miter |
| Component | Gear |
| Bore Type | Round |
| Module | 1.5 |
| Speed Ratio | 1:1 |
| Number Of Teeth | 20 |
| For Shaft Angle | 90 ° |
| Pressure Angle | 20 ° |
| Pitch Diameter | 30 mm |
| OD | 32.1 mm |
| Face Width | 8 mm |
| Overall Width | 21.2 mm |
| Bore Dia | 8 mm |
| Mounting Distance | 30 mm |
| Material | 303 Stainless Steel |
| Teeth Heat Treatment | Not Hardened |
| Hub Diameter | 26 mm |
| Hub Width | 13 mm |
| Set Screw Thread Size | M4 |
| Includes | Set Screw |
| RoHS | RoHS 3 (2015/863/EU) Compliant |
| REACH | REACH (EC 1907/2006) (07/08/2021, 219 SVHC) Compliant |
NOTE：All other trademarks are the property of their respective owners.
All other trademarks mentioned herein are used for the purpose of compatibility description and product identification only. Lily Bearing is not affiliated with, endorsed by, or sponsored by the holders of these trademarks.

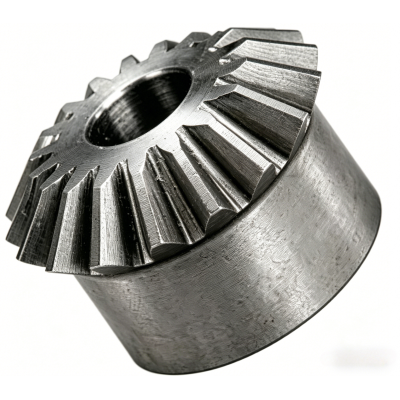

Design Features of DFGANBB Gear
Designed with metric module standards for compatibility with metric-based systems and precise gear meshing. Typically made from steel, stainless steel, or brass for durability, wear resistance, and long service life. Features conical pitch surfaces with teeth set to transmit motion between intersecting shafts, usually at a 90° angle. DFGANBB hub diameter is 26 mm. Its face width is 8 mm. Its overall width is 21.2 mm. Both gears have the same number of teeth, ensuring equal speed rotation in opposite directions.
What Benefits Can DFGANBB Gear Provide?
- Precise Integration with Metric Systems: Standardized metric modules ensure easy compatibility with other metric components and assemblies.
- High Strength and Reliability: Metal construction (such as steel or stainless steel) offers excellent load capacity, wear resistance, and long-term durability.
- Efficient 90° Power Transmission: Ideal for changing shaft direction while maintaining smooth and consistent torque transfer.
- Low Maintenance and Long Service Life: Precision machining and quality materials reduce wear, minimizing the need for frequent servicing.
What Can DFGANBB Gear Be Used for?
- Precision Machinery and Equipment: Used in CNC machines, automation systems, and industrial robots that follow metric design standards.
- Automotive and Transportation Systems: Applied in metric-based gearboxes, steering mechanisms, and transfer cases for directional torque transfer.
- Power Transmission Assemblies: Ideal for gear systems requiring compact, 90° direction changes with precise alignment.
- Mechanical Instruments and Tools: Integrated into lathes, drills, and testing equipment where reliable right-angle motion is needed in metric setups.
