32018 X/DF
Bulk orders will be discounted, please contact our sales for a bulk quote.
We will ship your order via FedEx within 3-5 working days after you complete the payment and the related information will be sent to your email.
Searching for the best price?
Complete the inquiry form, and we'll provide you with the most suitable solution.
Need bulk industrial price?
Submit your volume requirements, and we'll provide a tailored quote for your scale.
Overview |
|
| Part Number | 32018 X/DF |
Characteristics |
|
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered |
| Type | Bearing |
| Seal Type | Open |
| Cups Type | Standard |
| For Load Direction | Combined |
| Construction | Matched |
| ABEC Rating | ABEC-1 |
Dimensions |
|
| Bore Dia | 90 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 140 mm |
| Outer Dia Tolerance | -0.02mm to 0 |
| Total Width | 64 mm |
| Total Width Tolerance | +0.35mm to -0.25mm |
| Width Of Inner Rings | 64 mm |
| Width Of Inner Rings Tolerance | -0.15mm to 0 |
| Width Of Lubrication Groove | 8 mm |
| Fillet Radius | max.2 mm |
| Chamfer Dimension Outer Ring | min.1.5 mm |
| Chamfer Dimension Inner Ring | min.0.6 mm |
| Abutment Diameter Shaft | 100 mm |
| Abutment Diameter Housing | 100 mm |
| Diameter Of Lubrication Hole | 6 mm |
Material |
|
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Steel |
Performance |
|
| Dynamic Radial Load | 80100 lbf |
| Static Radial Load | 121500 lbf |
| Fatigue Load Limit | 13950 lbf |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| Reference Speed | 3000 r/min |
| Limiting Speed | 4300 r/min |
| Temperature Range | -30° to 110 °C |
Properties |
|
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 8 lb |
Design Features of 32018 X/DF Bearing

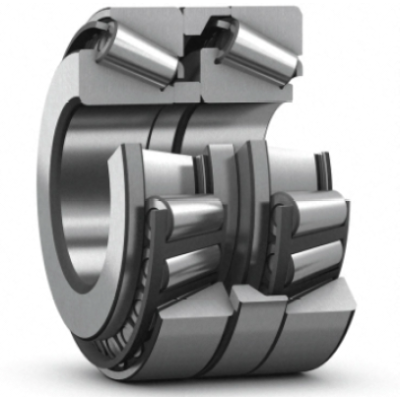

32018 X/DF features pairs of tapered rollers arranged to provide optimized load distribution, enhancing performance in both radial and axial directions. 32018 X/DF outer dia is 140 mm. Its bore dia is 90 mm. Its design allows for precise adjustment of internal clearance and preload, ensuring improved stability and reliability in high-load applications.
What Benefits Can 32018 X/DF Bearing Provide?
- Enhanced Load Capacity: Their design allows for improved distribution of loads, enabling them to handle higher radial and axial forces effectively.
- Improved Stability: The precise matching of the bearings ensures consistent performance and stability under varying loads and operating conditions.
- Adjustable Internal Clearance: Users can customize the internal clearance and preload to suit specific application requirements, optimizing performance.
- Reduced Friction: The tapered roller design minimizes friction between moving parts, leading to smoother operation and extended service life.
- Versatile Applications: Suitable for a wide range of applications, from automotive to industrial machinery, due to their adaptability to different load and speed conditions.
What Can 32018 X/DF Bearing Be Used for?
- Automotive: Utilized in wheel hubs, differentials, and transmission systems to support heavy loads and provide accurate alignment.
- Industrial Machinery: Found in gearboxes, conveyors, and pumps, where they manage both radial and axial loads effectively.
- Aerospace: Employed in aircraft landing gear and other critical components that require high reliability and performance under heavy loads.
- Heavy Equipment: Used in construction and mining machinery to ensure stability and support in harsh operating conditions.
- Railway: Applied in train axle boxes to handle the substantial loads and forces experienced during operation.
